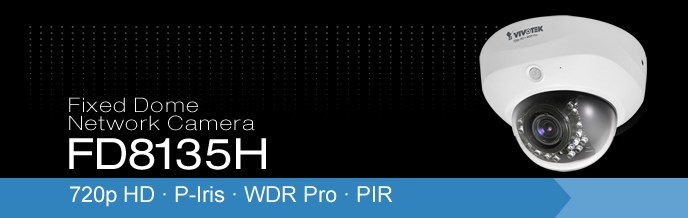

720p HD P-iris WDR Pro PIR Dome Network Camera FD8135H
Overview
VIVOTEK's FD8135H network camera features an HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8135H to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality.
Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 20 meters, the FD8135H is an outstanding 24-hour surveillance solution. Together with a PIR sensor for human detection, 802.3af compliant PoE, tamper detection, MicroSD/SDHC card for on-board storage, the FD8135H is indisputably the top choice for reliable and performance surveillance.
Features
- 1-megapixel CMOS Sensor
- Up to 30 fps @ 1280x800 (720p)
- 3 ~ 9 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, effective up to 20 Meters
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Built-in PIR Sensor for Human Detection
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC Card Slot for On-board Storage
Specifications:
- System Information
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- RAM
- Camera Features
- Image sensor
- Maximum Resolution
- Lens Type
- Focal Length
- Aperture
- 1.2 ( wide ), 2.1 ( tele )
- Iris
- Field of View
- 102.68 ~ 35.4 (horizontal)
- 61.93 ~ 22.8 (vertical)
- 122.56 ~ 41.11 (diagonal)
- Shutter Time
- 1/5 sec. to 1/25,000 sec.
- WDR Technology
- Day & Night
- Removable IR-cut filter for day & night function
- Minimum Illumination
- 0.8 Lux @ F1.2, 50 IRE
- 0.001 Lux @ F1.2, 50 IRE ( B/W )
- Pan range
- Tilt range
- Pan / Tilt / Zoom
- IR Illuminators
- Built-in IR illuminators, Effective up to 20 meter
- IR LED * 18
- On-board Storage
- Video
- Compression
- Maximum Frame Rate
- H.264: 30 fps at 1280x800
- MPEG-4: 30 fps at 1280x800
- MJPEG: 30 fps at 1280x800
- Maximum Streams
- S/N Ratio
- TV Line
- Dynamic Range
- Video Streaming
- Adjustable resolution, quality and bitrate
- Configurable video cropping for bandwidth saving
- Image Settings
- Adjustable image size, quality, and bit rate
- Time stamp and text caption overlay
- Flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
- Gain
- BLC (Backlight compensation)
- Supports privacy masks
- Scheduled profile settings
- Audio
- Audio Capability
- Audio input / Audio output ( half duplex )
- Compression
- Interface
- External / Internal microphone input
- Network
- Users
- Live viewing for up to10 clients
- Protocols
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
- Protocols
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
- ONVIF
- Intelligent Video
- Video Motion Detection
- Triple-window video motion detection
- Alarm and Event
- Alarm Triggers
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification
- Alarm Events
- Event notification using HTTP, SMTP, FTP, NAS server
- File upload via HTTP, SMTP, FTP and NAS server
- General
- Smart Focus System
- Focus Assist OSD ( Network streaming )
- Connectors
- RJ-45 for Network / PoE connection
- 3.5 mm phone jack * 2 for audio input/output
- Terminal block * 2 ( 24V AC Power input )
- Terminal block * 4 ( Digital input )
- Terminal block * 2 ( Digital output )
- MicroSD/SDHC card slot
- LED Indicator
- System power and status indicator
- Power input
- Power consumption
- Dimensions
- Weight
- Safety Certifications
- CEC-TickFCC(Class B)LVDVCCI
- Operating Temperature
- Warranty
- System Requirements
- Operating System
- Microsoft Windows 7 / Vista / XP / 2000
- Browser
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7.x or 8.x
- Other Players
- VLC:1.1.11 or above
- QuickTime:7 or above
