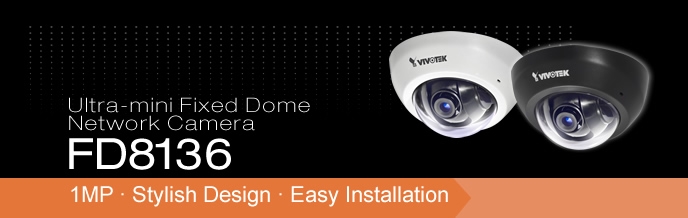

1MP Ultra-mini Dome Network Camera FD8136
Overview
VIVOTEK FD8136 is the worlds smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy.
The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications.
Designed with selectable focal lengths, FD8136 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8136 is the ideal solution for your surveillance needs.
Features
- 1-megapixel CMOS Sensor
- Up to 30 fps @ 1280x800
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC Card Slot for On-board Storage
- Compact and Stylish Design
- Easy Installation
Specifications:
- System Information
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- RAM
- Camera Features
- Image sensor
- Maximum Resolution
- Lens Type
- Focal Length
- f = 2.5 mm (FD8136-F2), f = 3.6 mm (FD8136-F3), f = 6 mm (FD8136-F6)
- Aperture
- F2.0 (FD8136-F2, FD8136-F3), F1.8 (FD8136-F6)
- Field of View
- 89.9 (FD8136-F2),
61 (FD8136-F3),
35.5 (FD8136-F6) (horizontal)
- 62 (FD8136-F2),
38 (FD8136-F3),
22.6 (FD8136-F6) (vertical)
- 101 (FD8136-F2),
73 (FD8136-F3),
741.6 (FD8136-F6) (diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- Minimum Illumination
- Pan range
- Tilt range
- Pan / Tilt / Zoom
- ePTZ
- 16x digital zoom ( 4x on IE plug-in ,4x built-in )
- On-board Storage
- Video
- Compression
- Maximum Frame Rate
- H.264: 30 fps at 1280x800
- MPEG-4: 30 fps at 1280x800
- MJPEG: 30 fps at 1280x800
- Maximum Streams
- S/N Ratio
- TV Line
- Video Streaming
- Configurable video cropping for bandwidth saving
- Image Settings
- Adjustable image size, quality, and bit rate
- Time stamp and text caption overlay
- Flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
- Gain
- BLC (Backlight compensation)
- Supports privacy masks
- Audio
- Audio Capability
- Compression
- Interface
- Internal microphone input
- Effective Range
- Network
- Users
- Live viewing for up to10 clients
- Protocols
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
- Protocols
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
- ONVIF
- Intelligent Video
- Video Motion Detection
- Triple-window video motion detection
- Alarm and Event
- Alarm Triggers
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
- Alarm Events
- Event notification using HTTP, SMTP, FTP, NAS server
- General
- Connectors
- RJ-45 for Network / PoE connection
- Terminal block * 2 ( Digital input )
- MicroSD/SDHC card slot
- LED Indicator
- System power and status indicator
- Power input
- Power consumption
- Dimensions
- Weight
- Safety Certifications
- CEC-TickFCC(Class B)LVDVCCI
- Operating Temperature
- Warranty
- System Requirements
- Operating System
- Microsoft Windows 7 / Vista / XP / 2000
- Browser
- Mozilla Firefox 7 - 10 ( Streaming only )
- Internet Explorer 7.x or 8.x
- Other Players
- VLC:1.1.11
- QuickTime:7 or above
- Real Player 10.5 or above
