Supports multi-GPU technology for extreme performance ode
PCIE 3.0
Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU – CPU communication
NVIDIA GPU Boost
NVIDIA GPU Boost technology that dynamically maximizes clock speeds to push performance to new levels
NVIDIA PhysX ready
Dynamic visual effects like blazing explosions, reactive debris, realistic water, and lifelike characters.
NVIDIA 3D Vision Surround Ready
Bring games to life with NVIDIA Surround multi-monitor gaming on a single card
Microsoft DirectX 11 Support
Brings new levels of visual realism to gaming on the PC and get top-notch performance

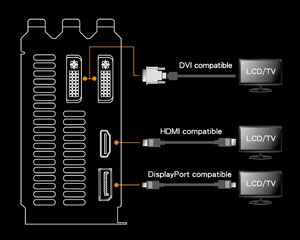

I/O Ports Highlight
Features:
DirectCU
Direct cooling for 20% cooler than reference
If the GPU is the heart of a graphics card, then the cooling device would be its lungs. Without it, the graphics card would not be able to "breath" smoothly, causing it to break down or even cause the entire system to fail. For ultimate cooling, ASUS DirectCU thermal technology developed the ideal heat banishing copper in exclusively designed heat pipes for direct and fast heat dissipation.

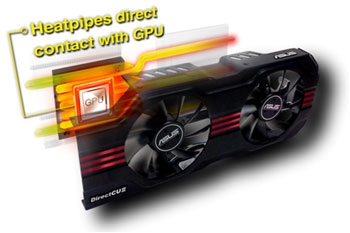

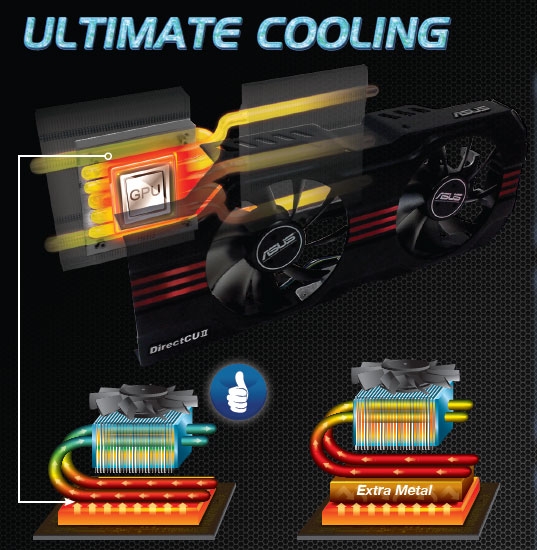

ASUS DirectCU technology
Thick copper heatpipes are accurately positioned in direct contact with the GPU surface so heat is transported and dissipated efficiently to the heatsink - achieving a 20% cooler performance than reference. Since heat is carried away faster, fans can spin at a lower speed thus resulting in quieter performance than reference.
Other brands
An extra metal plate is placed between the heatpipes and GPU, slowing down heat transfer to the heatsink. Due to temperature build-up, the fan has to spin faster, leading to louder operating noise.
Super Alloy Power
15% performance boost, 2.5 times longer lifespan, 35C cooler operation
The new and exclusive Super Alloy Power technology on ASUS graphics cards uses a special alloy formula which is highly-magnetic, heat-resistant and anti-corrosive. It delivers a more stable and quieter operation compared to the reference design a welcome bonus sought after by performance seekers.
15% Performance Boost
During overclocking, the Super Hybrid Engine acts as an intelligent controller to switch between high and low intensity power profiles in real time for 15% performance boost*.
2.5X Longer Lifespan
Super Alloy Capacitor increases the cards lifespan to 150,000 hours which is 2.5 times longer* than traditional capacitors.

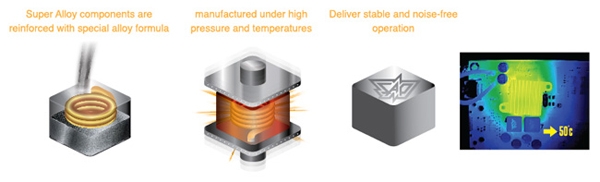

35C Cooler Operations
Super Alloy components are reinforced with special alloy formula and manufactured under high temperature and pressure to deliver stable and noise-free operation.

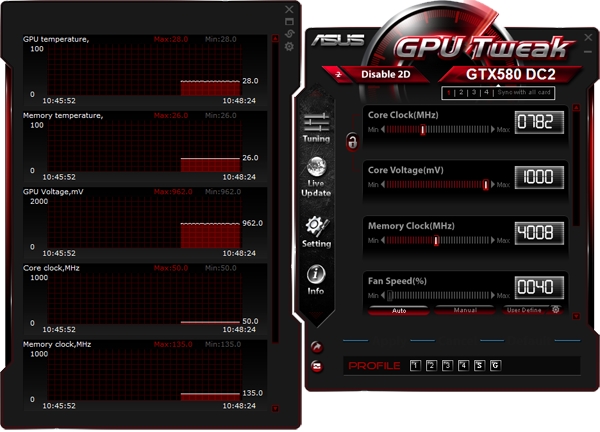

GPU Tweak
Tweak and tune like a PRO
Overclocking is made real-time and intuitive with ASUS GPU Tweak utility. It not only allows you to optimize clock speeds, voltage and fan speeds on up to four graphics cards independently or simultaneously, you can also select between GPU Tweaks Standard or Advanced modes depending on your level of experience. For gamers out there, GPU Tweak enables instantaneous in-game video recording* up to 720p resolution so you can share clips with the community easily. On top of these exciting tools, ASUS gives you more:

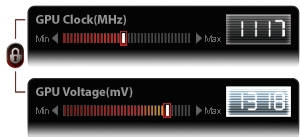

Sync GPU clocks and voltages for easier overclocking

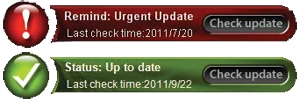

Automatically check and update driver and BIOS versions

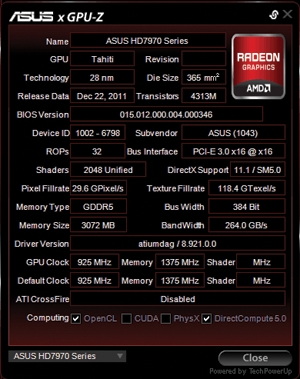

Get detailed specs and actual card status with GPU-Z
2D/3D switcher can lock the card in 3D for higher benchmarks

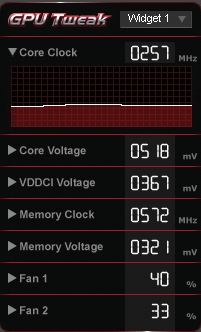

Moitoring widget provides detailed multi-parameter info
Specifications
| Graphics Engine |
NVIDIA GeForce GTX 680 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 2GB |
| Engine Clock |
GPU Boost Clock : 1201 MHz
GPU Base Clock : 1137 MHz |
| CUDA Core |
1536 |
| Memory Clock |
6008 MHz ( GDDR5 ) |
| Memory Interface |
256-bit |
| Resolution |
DVI Max Resolution : 2560x1600 |
| Interface |
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP) |
| Accessories |
1 x Power cable
1 x Extended SLI cable |
| Software |
ASUS Utilities & Driver |
| ASUS Features |
DirectCU Series
TOP Series
Super Alloy Power |
| Dimensions |
11.8 " x 5.1 " x 2.3 " Inch |
| Note |
*To have the best cooling performance, ASUS GTX680-DC2T-2GD5 extends the fansink to 2.5 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system!
*Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit https://www.geforce.com/ |
