All stock codes associated to this product
NB604N, 9317773015720
ADSL2+ Wireless N300 Modem Router - NB604N
Overview

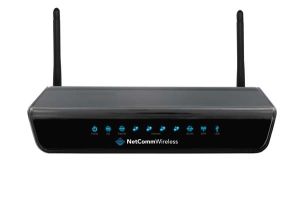

ADSL2+ Wireless N300 Modem Router
Connect to high-speed ADSL2+ for a powerful broadband Internet connection easily shared between multiple wired and wireless devices in the home or office. The ADSL2+ Wireless N300 Modem Router lets you create a high-performance WiFi hotspot with Wireless N networking speeds of up to 300Mbps, and connects up to four wired devices via the in-built Ethernet ports. Share access to an external hard drive using the USB port and ready yourself for what's in stall with IPv6 support .
ADSL2+ power
The user-friendly ADSL2+ Wireless N300 Modem Router gives you fast and simple access to a high-speed ADSL2+ service so you can focus on enjoying multi-device connectivity throughout your home or office.
WiFi N
Create a powerful WiFi hotspot to share between multiple wireless devices such as PCs, laptops, tablet computers, smart phones or gaming consoles with Wireless N speeds of up to 300Mbps.
USB advantage
Simply connect an external hard drive to the in-built USB port to access stored files from any device on the network
IPv6 ready
Be prepared for next generation Internet technologies and applications with support for the imminent shift to Internet Protocol version 6 (IPv6) addressing.
Technical Specifications
ENVIRONMENTAL AND PHYSICAL
- Operating temperature: 0-40oC, Humidity: 10%-95% non-condensing
- Storage temperature: -20-70oC, Humidity: 5%-95% non-condensing
- Power: DC Input Voltage 12V/1.5A
- Dimensions: 181mm (L) x 135mm(W) x 26mm(H)
- Weight: 245g
DEVICE INTERFACE
- 4 x 10/100Mbps LAN ports
- 1 x RJ11 DSL interface
- 1 x USB 2.0 port for external Hard Disk Drive Storage
- 1 x WPS button
- 2 x 2 external WiFi antennas
- 1 x Reset button
- LED - Power / Internet / LAN1~4/ WLAN/USB
- Power Jack
ADSL COMPLIANCE
- G.992.1 (T1.413)
- G.992.2 (G.dmt), G.lite
- G.992.3 (G.bis/ADS L2)
- G.992.5 (ADSL2+)
- Annex L (reach extended ADSL2)
ATM SUBSYSTEM
- PPP over ATM (RFC 2364)
- Bridged IP over ATM (RFC 1483)
- PPP over Ethernet (RFC 2516)
- Multiprotocol Encapsulation over AAL5 (RFC 2684)
- ATM Forum UNI 3.1 / 4.0 PVC
ROUTING FEATURES
- PPP over PAP (RFC1334)
- PPP over CHAP (RFC1994)
- Transparent bridging as specified in IEEE 802.1D
- NAT (Network Address Translation)
- Dynamic Host Configuration Protocol (DHCP)
- Dynamic DNS support
- Routing Information Protocol (RIP) v1 and v2
- ALG: TFTP/FTP/PPTP/RTSP/L2TP/H323
- DMZ
- SNTP
- QoS
WIRELESS
- Supports IEEE 802.11n (draft 2.0), IEEE 802.11g and IEEE 802.11b
- Data Rates: Up to 300Mbps for 802.11n, up to 54Mbps for 802.11g and up to 11Mbps for 802.11b
- Antenna Configuration: 2 fixed external antennas (2T2R)
- Operating Channels: 13 channels
- Support 802.1x, WPA/WPA-PSK, WPA2/WPA2-PSK, Mixed WPA/WPA2, and Mixed
- WPA-PSK/WPA2-PSK
- Supports multiple SSIDs
- Supports wireless QoS (WMM)
- Supports wireless protected setup (WPS) with PIN and PBC method
- Support repeater function to extend coverage (WDS)
MANAGEMENT
- Supports TR-069
- TFTP client and server
- IPv6
- DHCP client and server
- FTP server and client
- Universal Plug and Play (UPnP) support
- Web-based Graphical User Interface (GUI) enabling end-user device configuration via HTTP
- Syslog
- Configuration file backup and restore
- Built-in Diagnostic Tools
COMPLIANCE
Networking
