All stock codes associated to this product
HD7770DC1GD5V2, HD7770-DC-1GD5-V2
- DirectCU utilizes direct-contact GPU heatpipes for 20% cooler and significantly quieter performance than reference.
- GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface.
- AMD Eyefinity technology extends your viewing landscape across multiple monitors.
- New PCIe 3.0 delivers double the bandwidth per lane of PCIe 2.0 for faster GPUCPU communication.
The fast and the cool great 28nm graphics!
ASUS Exclusive Innovation
 |
DirectCUDirectCU embeds two 8mm flatten copper heat-pipes contact GPU directly for 20% cooler.
|
 |
GPU TweakGPU Tweak co-developed with the most authoritative GPU-Z to provide the most accurate information
|
|
DIGI+ VRM with Super Alloy Power Acclaimed DIGI+ VRM with Super Alloy Power technology delivers precise Digital Power and enhance durability for stable overclocking
|
|
1020 MHz OverclockFor better performance and outstanding gaming experience
|
Graphics GPU Features
 |
Powered by AMD Radeon HD 7770
|
 |
28nm GPULess power consumption & more efficient transistor
|
 |
PCIE3.0Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU CPU communication
|
 |
AMD Eyefinity Technology Extends your visual horizon across 3 displays to immerse yourself in gameplay and entertainment
|
 |
AMD HD3D TechnologyOptimize stereoscopic 3D gaming and movie-watching entertainment.
|
 |
DirectX 11 SupportBring new levels of visual realism to gaming on the PC and get top-notch performance
|
 |
AMD CrossFireX TechnologyMulti-GPU technology for extreme performance
|
 |
Microsoft Windows 7 CompatibleEnable PC users to enjoy an advanced computing experience and to do more with their PC
|
 |
GHzMeet or exceed a 1GHz reference engine clock for better performance
|

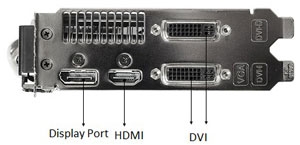

I/O Ports Highlight
Specifications
| Graphics Engine |
AMD Radeon HD 7770 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 1GB |
| Engine Clock |
1020 MHz |
| Memory Clock |
1150 MHz ( 4600 MHz GDDR5 ) |
| RAMDAC |
400 MHz |
| Memory Interface |
128-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
D-Sub Output : Yes x 1 (via DVI to D-Sub adaptor x 1)
DVI Output : Yes x 2
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes |
| Accessories |
1 x CrossFire cable
1 x DVI to D-Sub adaptor |
| Software |
ASUS Utilities & Driver |
| ASUS Features |
DirectCU Series
Super Alloy Power |
| Dimensions |
9.3 " x 5.5 " x 1.7 " Inch |
| Note |
To ensure optimum performance and stability, avoid using ASUS HD 7700 Series cards with Windows XP, as official AMD driver support will not be added until April 2012. For best results on Win 7/Vista 32bit/64bit, download drivers from the links below:https://support.amd.com/us/kbarticles/Pages/hd7700series7support.aspx |
