All stock codes associated to this product
AP9630, 731304267416
UPS Network Management Cards

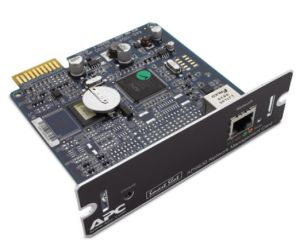

UPS Network Management Card 2
AP9630
Remote monitoring and control of an individual UPS by connecting it directly to the network.
Includes: CD with software, User Manual
Overview
AP9630 Features
IPv6 Support
Capable of operating on a network using IPv6 protocol
Device Encryption
Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
Standard UPS RFC 1628 MIB Compatible
Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
Compatible with Smart-Slot enabled UPSs
Compatible with all APC SmartSlot UPSs, including Smart-UPS and Symmetra units
Localization
User interface available in major local languages; English, French, German, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese, Korean, Brazilian Portuguese & Italian.
Command line interface
Offers Telnet or SSH for remote management access.
UPS Network Management Cards Features & Benefits
Manageability
Notification
Be notified of problems to ensure crucial situations are dealt with in a timely manner.
Scheduling
Customize shut down and reboot of connected equipment and UPSs.
Run command file
Run command file on shutdown sequence as well as start-up sequence.
Data logging
Identify problematic trends before they escalate or export the data log for analysis.
Event logging
Pinpoint the timing and sequence of events leading up to an incident with the event log.
Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1, SNMPv2 and SNMPv3 using the PowerNet MIB
Total Cost of Ownership
Browser Accessible
View the user interface with a browser. Provides quick access from anywhere on a secure network.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Availability
Reboot equipment remotely
Saves dispatching technicians to remote locations.
Protection
Password Security
User-selectable password protection prevents unauthorized access, authorized against LDAP and Active Directory servers.
Three-tier user access
Control user access on three levels including read only, device and administrator.
Radius support
Use an existing radius server to securely authenticate, authorize, and account for your APC device.
PowerChute Network Shutdown
Reliable network-based shutdown of multiple servers
Specifications:
Communications & Management
Protocols
HTTP,HTTPS,IPv4,IPv6,NTP,SMTP,SNMP v1,SNMP v2c,SNMP v3,SSH V1,SSH V2,SSL,TCP/IP,Telnet
Network Interface Connections
RJ-45 10/100 Base-T
Color
Black
Environmental
Operating Environment
0 - 45C
Storage Temperature
-5 - 45C
Operating Relative Humidity
0 - 95%
Storage Relative Humidity
0 - 95%
Operating Elevation
0-3000meters
Storage Elevation
0-15000meters
Conformance
Regulatory Approvals
AS/NZS 3548 (C-Tick) Class A,EN 55022 Class A,EN 55024,FCC Part 15 Class A,GOST,ICES-003,VCCI Class A
Standard Warranty
2 years repair or replace
Environmental Compliance
RoHS,REACH: Contains No SVHCs,Contains Lithium Battery
