Part Number:
194925
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
VD-300Ap
VD300Ap
Shipping Weight:
2 KG (Includes product packaging)
VD-300Ap

3 Megapixel Day & Night Vandal Dome Network Camera

  • 3 Megapixal High Resolution Outdoor Dome Camera
  • Cost Effective/ High Resolution/ Full Features Camera
  • Easy Installation Dome Type Camera, Suitable for Project
  • MPEG-4, MJPEG and H.264 Triple Codec Compression
  • Intelligent Multi-Profile Sensor Management  for Different Environments
  • Removable IR-cut Filter /Auto Light Sensor for Day and Night
  • 1 DI/DO for External Alarm and Sensor Device
  • Two-way Audio/Built-in SD/SDHC Memory Card Slot for Local Storage
  • Power over Ethernet
  • Vandal-Proof and Weather-Proof.(IP67)
  • Built-In Fan (-40C ~ 60C) and Heater
  • Power over Ethernet

3M3 AxisDIDO
IP67SD SDHCDN
ProfileVandal ProofPOE

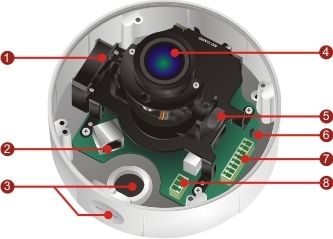

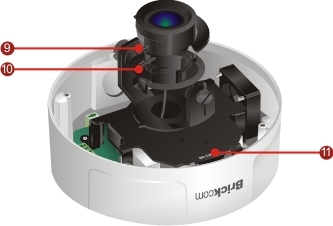

Overview

Fan
RJ45 Connector (for Ethernet and High Power PoE)
Conduit Plug and Hole
LENS
Tilt Screw
Reset Button
Terminal Block (for Audio in/out, DI/DO)
Terminal Block (for Power)
Focus Control Bar
View Angel Control Bar
SD Card Slot




3 Megapixel High Resolution Vandal Dome Cameras

The Brickcom VD-300A is a 3 megapixel network surveillance camera, which supports Full HD resolution. The VD-300A is a full-featured, 3-axis, vandal dome, network camera. With a 3 megapixel CMOS sensor and built-in IR cut filter/ IR illuminator LEDs/ Auto Light sensor, it can provide 24-hour surveillance. The VD-300A features a wide-angle and vari-focal lens, which offers wide view coverage of all angles.

Intelligent Multi-Profile Sensor Management

The Brickcom VD- 300A series camera provides the advanced image sensor profile management function to adapt to the variable environments. With this feature, the user has the ability to set various sensor and lens attributes in a profile, including the brightness, contrast, sharpness, saturation, exposure, de-noise, white balance, iris, IR-cut, etc. Furthermore, the profiles can be switched automatically following the user-defined conditions, such as Day & Night, Schedule, and Digital Input. Up to 3 pre-set profiles (Day, Night, and Sunset) and 2 user-defined profiles are provided for the camera for unprecedented flexibility.

SD/SDHC SD Card Inserted & Edge Recording Supported

The VD-300A supports Power over Ethernet (PoE) and a built-in SD/SDHC/Micro-SD card slot for a pure IP installation. With the SD/SDHC SD card inserted, the camera can record the video locally. By integrating with the Brickcom BP-1000 power battery pack, the FD-300A Series supports Edge Recording. The camera will continue recording and store the data to the Micro SD/SDHC card when the network or power connection is interrupted.

IP67 Weather Proof Enclosure

The Brickcom vandal dome camera VD-300A comes with an extreme weather proofing feature so the operating temperature is extended to -40 to +60C (-40 to +140F) to ensure camera operation in harsh conditions. The IP67 outdoor enclosure makes VD-300A vandal dome Camera possible to be placed in any location, regardless of environment and climate.


Specifications:

Camera

Hardware System

CPU: 500 MHz
Flash: 16M
RAM: 128M DDR

Image Sensor

Sensor Type : 1/4” CMOS 3 megapixel Sensor
Sensor Resolution : 2032 x 1536 pixel
Minimum Illumination : 0.5Lux@F1.2

Lens

Lens Type : Board Mount
Focal Length: f= 3mm(W)~9mm(T) ,3X
Iris: 1.2(W)~2.7(T)
View Angle:
(H): 115.2°~37.1°
(V): 63.29°~20.8°
(D): 132.6°~42.5°

Day & Night ICR

Triggered by Light sensor, Scheduling, Digital Input

Video

Video Image Compression
H.264 / MPEG4 / MJPEG

Video Setting
Auto Exposure Control: Sport, Normal, Night
Vision, User Defined
Auto Gain Control: 1X~5X
Shutter Speed: 1/10000s ~ 1/7 s

Image Resolution
3M
- 2032 x 1536@8fps
2M
-1920 x 1080 @8fps
1.3M
- 1280 x 1024@8fps
1M
-1280x720@15fps

Audio

Audio Streaming
2-way Audio Support

Audio Compression
G.711, AMR (8 kHz, Mono, PCM)

Audio Input/ Output
Line In/ Out

General

Communication Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, Samba, PPPoE,
UPnP, RTP, RTSP,
Power Input High Power PoE / DC48V/0.8A
Max. Power
Consumption
25 watts
Environment Water Proof: IP67
Operating Temperature : -40°C ~ 60°C (-40°F
~140°F), build in fan and heater
Operating Humidity : 10% ~ 80%
Dimension 113.75 (D) mm X 144.25(H) mm
Weight 860g/1.90lb
Certification FCC, CE
Warranty Limited 2-year warranty
Camera
