All stock codes associated to this product
Rocket644L, Rocket 644L, R644L

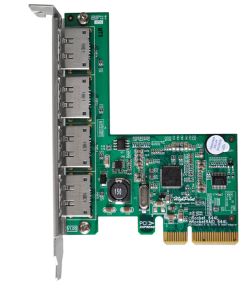

Rocket 644L
Rocket 644L |
PCI-Express Bus |
2.0 x4 |
Port Count |
4 |
Connector Type |
eSATA |
RAID Level |
0, 1 |
Form Factor |
Full Height |
Activity/Fail LED |
No |
Alarm/Buzzer |
No |
Dimensions |
3.12"(L) x 4.17"(W) x0.06"(H) |
HighPoints Rocket 600 Lite Series HBAs are the Industrys most affordable, high-performance, SATA 6Gb/s storage HBAs, and are ideal for desktop PCs and workstations. These Second Generation SATA 6Gb/s host controllers utilize the PCI-Express 2.0 host bus interface, and support non-RAID and RAID configurations of todays fastest SATA 6Gb/s HDDs and SSDs.
Rocket600L HBAs are fully backwards compatible with SATA 3Gb/s devices, PCI-Express 1.0 and 2.0 motherboards, and are compliant with major PC operating systems including Windows 7.
Specification
Controller Specification |
Dimensions |
PCI Express 2.0 x4 |
4x SATA 6Gb/s Ports |
Supports RAID 0, 1 |
Supports up to 4 SATA 6Gb/s and 3Gb/s HDD/SSD |
Hot-Swap and Hot-Plug |
Driver support for Microsoft Windows 7, 2008, Vista, and Linux distributions |
AHCI compliant |
|
Rocket 640L: 3.12"(L) x 2.56"(W) x0.06"(H) |
Rocket 644L : 3.12"(L) x 4.17"(W) x0.06"(H) |
Kit Contents |
Rocket 600L HBA |
CD (Driver software) |
Quick Installation Guide |
SATA to SATA Cables (Rocket 640L only) |
|
