The Samsung TC220 comes ready-to-view. With their high-performance, high-quality LED screens*, they are a one-step server based network solution. Their high brightness and contrast ratio allow them to display images with real depth of colour, clarity, and detail. Capable of displaying high resolution images with immaculate integrity, the Samsung C Series thin clients open up a new world of opportunity to a variety of users, presenting both still images and high-speed video to perfection.
Samsung LED monitors use LED edge lights and LED screens.
The advantage of storing information on a central server is that resources can be stored and shared efficiently and effectively. When data is uploaded to the server, it helps to secure against loss and damage while at the same time being made available to a wider group of users. This benefits not only present-day users, but also creates a valuable resource archive that future-users can access. Searching information stored on a central server is fast, easy, and intuitive, enabling information to be shared and subjects to be taught in a future-forward way.
Creative space-saving solutions
When space is a key factor, PCs can be bulky and make a workspace appear more cluttered than it needs to be. The inclusion of built-in speakers and the elimination of the need for an external hard drive means that each workspace can be kept as clear and clean as can be, thereby enabling a higher workstation to space ratio, greater productivity and enhanced user-comfort.
All-in-one design
Samsungs innovative Cloud Display integrates a thin client into the LED* screen for efficiency. Its contemporary and innovative design helps to keep your work environment clean and tidy is simple. These innovative features come together perfectly for an all-in-one design that enhances desktop productivity.
Samsung LED monitors use LED edge lights and LCD screens

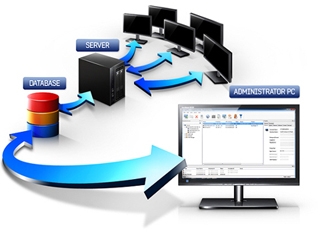

Monitor remote management S / W
Samsung’s Cloud Monitor delivers amazing levels of convenience by using the remote management software of MagicRMS Pro. It delivers a more centralised operation and saves administrators the time and hassle associated with physically having to visit each device for routine checks. Other benefits include real-time device status monitoring, an efficient and accurate inventory process and finally remote upgrading of firmware to all devices. With so many standout benefits for day-to-day operations, the MagicRMS software helps to make the office environment efficient.
Easier management, easier maintenance
For education purposes, a central server system allows the system administrator to control, manage, and update the system from one location, making his or her job a lot easier. Because the IT administrator can dedicate their time working on the central server , the system helps to manage and maintain.
Security
Because software is installed amd important information is stored on centralised host platforms, this can help to secure the system against virsuses, information leaks and internal and external attacks.
Specifications:
Display
| H-Scanning Frequency |
31 - 80KHz |
|
| V-Scanning Frequency |
56 - 75H |
|
Panel
| Diagonal Size |
22" (56cm) |
|
| type |
LED BLU |
|
| Resolution |
1,680 x 1,050 |
|
| Pixel Pitch (mm) |
0.282 x 0.282mm |
|
| Active Display Area |
473.76 x 296.1mm |
|
| Brightness |
250cd/m |
|
| Contrast Ratio (Dynamic) |
100,000:1 |
|
| Viewing Angle (Horizontal/Vertical) |
170 / 160 deg (CR10) 178 / 178 deg (CR5) |
|
| Response Time (G-to-G) |
5ms |
|
| Display Colour |
16.7M |
|
| Contrast Ratio |
1,000:1 |
|
Connectivity
| Input |
RGB |
RGB-IN (15pin D-SUB) |
| |
Audio |
Audio IN, MIC IN |
| Output |
Video |
Video Out (15pin D-SUB) |
| |
Audio |
Headphone Out |
| External Control |
RJ45, RS232C (out) |
|
Mechanical Specification

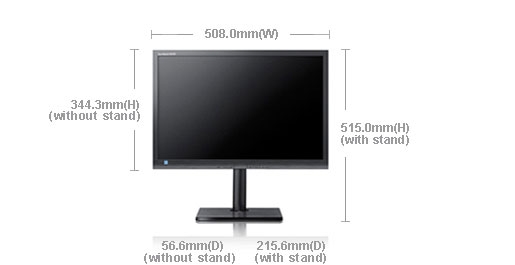

| Dimension |
Set Dimension (WxHxD) |
508.0 x 515.0 x 215.6mm (with stand) 508.0 x 344.3 x 56.6mm (w / o stand) |
| |
Package Dimension (WxHxD) |
585 x 422 x 167mm |
| Weight |
Set Weight |
5.5kg |
| |
Package Weight |
7.4kg |
| VESA Mount |
100 x 100mm, 100 x 200mm |
|
| Stand Type |
HAS Stand |
|
Operation
| Operating Temperature |
10 - 40C |
|
| Humidity |
10 - 80% |
|
General Feature
Power
| Power Supply |
External Power Adaptor |
|
| Power consumption |
Off Mode |
0W |
| |
On Mode |
43W (Max) / 29W (Typ) |
| |
Sleep Mode |
2.7W |
| type |
External Power Adaptor |
|
Accessory
| Included |
Quick Setup Guide, Warranty Card, User Manual, Power Cable, DC Power Adaptor, Stand Base |
|
Embedded PC
| CPU |
AMD Ontario 1.0 Dual core |
|
| FDM/HDD |
8GB / No |
|
| Ethernet |
10 / 100 / 1,000 |
|
| Memory |
DDR3 2GB |
|
| Connectivity |
USB |
4ea |
| |
Output |
D-SubB (RGB OUT), Optional Built-in Speaker |
| |
Others |
RJ45, RS232C (out) |
Certification
| EMC |
FCC (USA): Part 15, Subchaptyer J, Class BCE (Europe): EN55022, EN55024VCCI (Japan): V-3 (CISPR22) KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia / New Zealand): AS / NZS3548 (CISPR22) CCC (China): GB 4943, GB 9254 |
|
| Environment |
MPR II (Sweden): MPR 1990:8 (Option) |
|
| Safety |
UL (USA): UL60950-1 CSA (Canada): CSA C22.2 No.60950-1 TUV (Germany): EN60950-1NEMKO (Norway): IEC60950-1EK (Korea): K60950-1CCC (China): GB 4943, GB 9254PSB (Singapore): IEC60950-1GOST (Russia): EN60950-1, EN55022NOM (Mexico): NOM-019-SCFI-1993IRAM (Argentina): IRAM 4100SASO (Saudi Arabia): IEC60950-1 |
|
Features and specifications are subject to change without prior notification.
