Intel S1200BTS Motherboard - Retail
  • LGA1155, 4xDDR3, 6x SATA, RAID, GigLAN, mATX

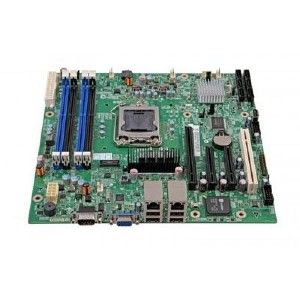

IMG 1 of 1
No Longer Available
Part Number:
195056
(?) Brand:
Intel Web Site
Manuf No:
DBS1200BTSR
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
15/5/2012
Details Files Images & Video
All stock codes associated to this product
DBS1200BTSR, 5032037038638

Intel Server Board S1200BTS


Specifications

Essentials
Status
 Launched
Launch Date
 Q2'11
Expected Discontinuance
 2014
Limited 3-year Warranty
 Yes
Extended Warranty Available for Purchase (Select Countries)
 Yes
# of QPI Links
 1
Board Form Factor
 microATX
Chassis Form Factor
 Rack or Pedestal
Socket
 LGA1155
Integrated Systems Available
 Yes
Integrated BMC with IPMI
 No
Rack-Friendly Board
 Yes
Embedded Options Available
 No
Supplemental SKU
 No
Recommended Customer Price
 N/A
Description
 Sub-Entry level UP server board for pedestal or rack chassis.
Target Market
 Small Business/1st Server
Additional Information URL
 Link
Memory Specifications
Max Memory Size (dependent on memory type)
 32 GB
Memory Types
 DDR3 ECC UDIMM
# of Memory Channels
 2
Max Memory Bandwidth
 1066 GB/s
# of DIMMs
 4
ECC Memory Supported
 Yes
Graphics Specifications
Integrated Graphics
 Yes
Graphics Output
 VGA
Expansion Options
PCI Support
 32 bit / 33MHz
# of PCI Express Ports
 4
PCIe x4 Gen 2.x
 1
PCIe x8 Gen 2.x
 2
I/O Specifications
USB Revision
 USB 2.0
# of USB Ports
 7
USB 2.0 Configuration (Back + Internal)
 4 + 3
# of SATA Ports
 6
RAID Configuration
 Intel(R) RST (0, 1, 10, 5)
# of Serial Ports
 1
# of LAN Ports
 2
Integrated LAN
 Dual 1GB
Package Specifications
Max CPU Configuration
 1
Low Halogen Options Available
 See MDDS
Advanced Technologies
Intel Trusted Execution Technology
 No
AES New Instructions
 Yes
Intel Remote Management Module Support
 No
Intel Intelligent Power Node Manager
 No
TPM
 Yes

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
