All stock codes associated to this product
ZMCNPS12X, ZM-CNPS12X, ZalmanZMCNPS12XX, Zalman ZM-CNPS12X-X
CNPS12X
High Performance Triple Fan Technology
Compatible CPUS
Pentium 4, Celeron D, Pentium D, Core 2 Duo, Core 2 Quad, Core 2 Extreme, Pentium Dual Core, Core i7, Core i5, Core i3, Core i7 Extreme, Sempron, Athlon, Athlon FX, Opteron, Dual-Core Opteron, Phenom, Athlon X2, Phenom II, Athlon II, Llano, Zambezi
| Compatible CPUS |
| Socket |
CPU |
CPU Compatibility |
|
| Intel |
2011 |
Core i7 Extreme |
Supports all speeds |
| 1155/1156 |
Core i7 Extreme |
Supports all speeds |
| Core i7 |
| Core i5 |
| Core i3 |
| 1366 |
Core i7 Extreme |
Supports all speeds |
| Core i7 |
| 775 |
Core 2 Quad |
Supports all speeds |
| Core 2 Duo |
| Core 2 Extreme |
| Pentium Dual Core |
| Pentium D |
| Pentium 4 |
| Celeron D |
| AMD |
FM1 |
LIano |
Supports all speeds |
| AM3+ |
Zambezi |
Supports all speeds |
| AM3 |
Phenom II |
Supports all speeds |
| Athlon II |
| AM2+ |
Phenom II |
Supports all speeds |
| Phenom |
| Athlon FX |
| Athlon X2 |
| Athlon |
| Sempron |
| AM2 |
Athlon FX |
Supports all speeds |
| Athlon X2 |
| Athlon |
| Dual-Core Opteron |
| Opteron |
| Sempron |
|
Specifications:

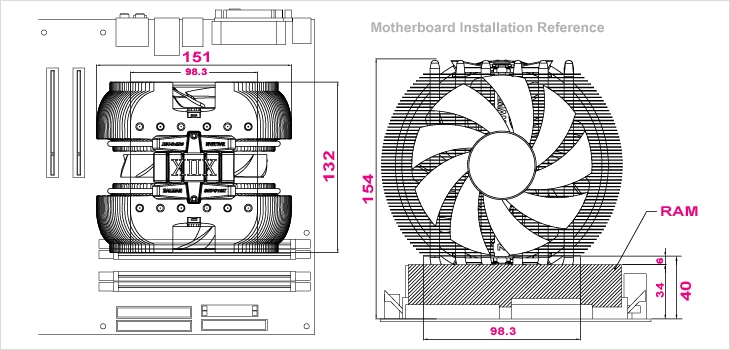

The coolers installation requires an unobstructed space of 151mm(L), 132mm(W), and 155mm(H), with the CPU as a central reference point. Please check if components such as ODD, VGA and PSU protrude into the required space.
If the RAM memorys height is over 40mm after inserting into the RAM slot, then 1 RAM slot cannot be used due to obstruction. |
Specifications:
Dimensions
|
151(L) x 132(W) x 154(H)mm |
| Weight |
1,000g |
| Materials |
Pure Copper, Aluminum |
| Dissipation Area |
9,635 |
| Heatpipes |
6 |
| Fan |
Low Noise 120mm Blue LED Fan |
| Fan Bearing |
Long Life Bearing |
| Fan RPM |
Quiet Mode
(with RC5) |
850 ~ 1,100rpm 10% |
Performance Mode
(without RC5) |
950 ~ 1,200rpm 10% |
| Noise |
Quiet Mode
(with RC5) |
22dBA 10% |
Performance Mode
(without RC5) |
24dBA 10% |
| Input Voltage |
12V |
| Colour |
Gray |
| Capacity |
3.5g |
| Specific Gravity @23C |
2.88 |
| Thermal Resistance |
8K/W |
| Thermal Conductivity |
4.1W/mK |
| Temperature Stability |
-40C ~ +150C (-40 ~ +302) |

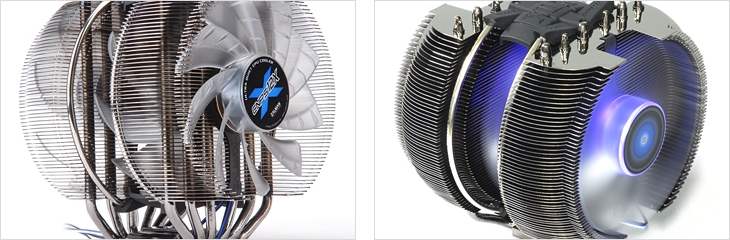

Powerful Cooling Performance
Optimally designed aluminum fins disperse heat away from the CPU via 6 of high performance heatpipes by utilizing I.H.D technology, while the high capacity 120mm Triple fans quickly cools the heatsink for stable operation of high performance CPUs.
I.H.D : Interactive Heat pipe transfer Design
Ultra Quiet Triple Blue LED FAN
Switching noise eliminated 120mm Triple Fans incorporated for ultra quiet operation and blue LEDs for cool aesthetics.
Switching noise is the high frequency harmonic noise that can result from voltage regulation.

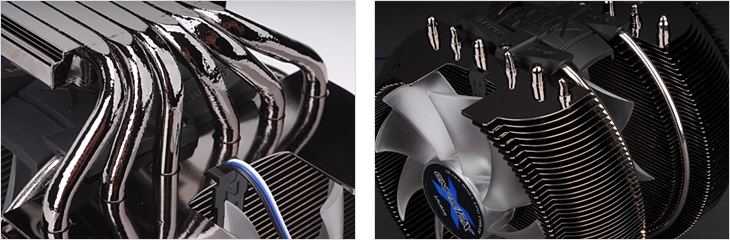

Composite Heatpipe applied
By utilizing Composite Heatpipes, the heat transfer capacity enhanced by 50% compared to the ordinary Sintered-type Heatpipes.
Composite Heatpipe: Featuring a Sintered Metal type wick, resulting in outstanding capillary pumping performance, and a high thermal conductive design of Axial Grooves which increases the heat transfer rate.
Black-Pearl Nickel Plating
The entire heatsink of CNPS12X is plated with Black-Pearl Nickel for a long-term corrosion resistance, while the deep Black-Pearl tone along with the high intensity Blue LEDs reinforce its powerful aesthetics.
Versatile Compatibility
CNPS12X accommodates a broad range of sockets including Intels upcoming socket LGA2011 as well as AMDs sockets.
LGA2011/1366/1156/1155/775
FM1/AM3+/AM3/AM2+/AM2
Moreover, thanks to highly optimized heatsink design, CNPS12X is able to be compatible with a Mid -Tower Case with its width is 180mm or wider.

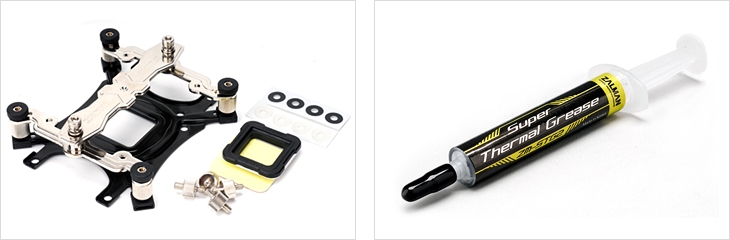

High Performance Super
Thermal Grease ZM-STG2
The included all new high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS12X for intensified cooling performance.

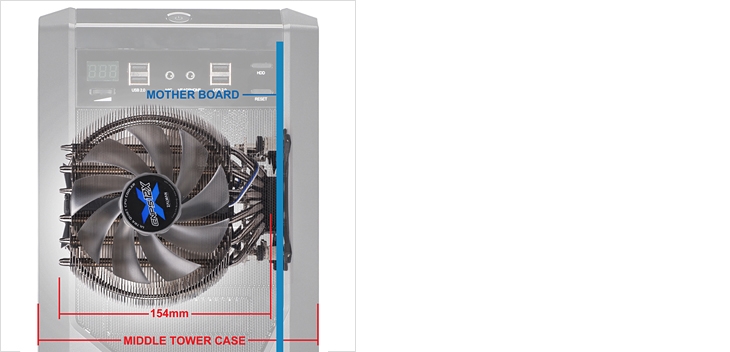

Middle Case Support
The coolers height is 154mm, and it can be installed in Middle Cases which measures 180mm in width.

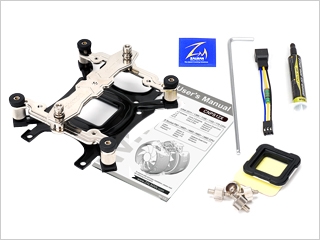

Components
Common Components
Cooler
Backplate
Clip Support
Clip
Wrench
Thermal Grease (ZM-STG2)
Nuts & Nut (Slide) Caps

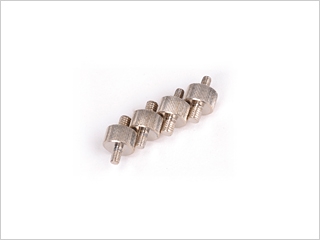

Nipples A
Fixing Nuts
Resistor (RC5)
Loading Block
Double-Sided Tape
Bolts
Users Manual
Components for Intel Socket 2011
Nipples B
Components for Intel Socket 1155/1156/1366/775

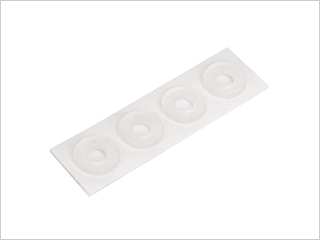

Intel Washers

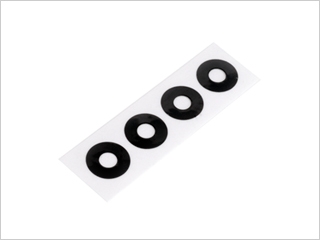

Component for AMD
Socket FM1/AM3+/AM3/AM2+/AM2 - AMD Washers
AMD Washers
