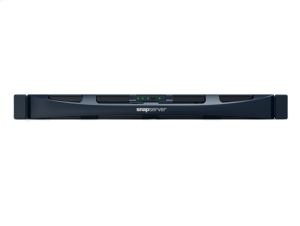

Overland Storage SnapServer DX1 Network Storage Device - 1U
  • 4x Drive Bays, RAID 0,1,5,6,10, VMWare Ready, USB, 2xGigLAN

IMG 1 of 1
No Longer Available
Part Number:
195591
(?) Brand:
Overland Storage
Manuf No:
OV-NAS201001
OVNAS201001
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
24/5/2012
Details Files Finance Images & Video
All stock codes associated to this product
OVNAS201001, OV-NAS201001, OVRNAS1002DX1

SnapServer DX1


Overview

SnapServer DX1 Overview



Product Description Built upon the award winning GuardianOS, the SnapServer DX1 is the first storage system that you do not have to provision. The 1U, 4-drive SnapServer DX1 supports DynamicRAID for seamless storage expansion by adding or replacing hard drives as capacity requirements change. The SnapServer storage volumes can grow or shrink dynamically within the storage pool without IT intervention, preventing costly provisioning errors and unnecessary upgrades.

The DX1 supports desktop SATA-II and enterprise class SATA-II hard drives and is scalable up to 120TB with the optional SnapExpansion chassis. With both block and file level access, the SnapServer DX1 has cross-platform compatibility with Windows, Linux, UNIX and Macintosh systems and is ideal for file sharing and storage consolidation. Network Computing Awards 2012 WINNER The SnapServer DX1 includes data protection features such as, DynamicRAID, snapshots, disk-to-disk backup and supports optional data replication

Protect your data and let your storage grow seamlessly as capacity needs change with the SnapServer DX1 and DynamicRAID.

Product Summary: Easy management and growth
Best Fit For: Small businesses with growing storage needs
Form Factor: 1U rackmount
System Scalability: 2TB - 120TB
Processing: 1.8GHz processor
Drives Supported: SATA
RAID Levels: Traditional RAID 0, 1, 5, 6, 10 or DynamicRAID dual or single parity
Network Connectivity: 2 x GbE
Capabilities: Remote Management, DynamicRAID, Flexible Volumes, Unified Storage, Snapshots, Replication, Backup Interface
Network File Protocols: Microsoft Networks SMB (1.0) / CIFS (NTLM); CIFS via Mac OS X; NFS v2, v3, v4 (UDP/TCP); Apple AFP; FTP/FTPS;HTTP/HTTPS (1.1)

Support Platforms

Certifications



Specifications:

Operating System GuardianOS7.0
Management Wizard-based Installation, Volume Usage Statistics, Event Log, Email Notification, Administrator Authentication, Remote Management, Multi-Server Monitoring, and Visualization with SnapServer Manager
Network File Protocols SMB, CIFS, NFS, AFP, HTTP, FTP
iSCSI Support Included
Snapshots Included
Replication Snap EDR
Microsoft Active Directory Support Included
VMware Support VMWare Ready
Form Factor 1U rackmount
CPU and Memory 1.8GHz processor / 1 X 2GB ECC Memory Module (upgradable to 2 x 2GB)
Drive Configuration 4 x SATA
RAID Levels DynamicRAID Single or Dual Parity / Traditional RAID 0, 1, 5, 6, 10
Drive Types Supported Enterprise SATA: 1TB, 2TB,3TB | 7,200 RPM
Desktop SATA: 1TB, 2TB, 3TB | 7,200 RPM
Network Connectivity 2 x Gigabit Ethernet ports (autosensing 10/100/1000Base-T, dual RJ-45 network connections); Support for stand-alone, failover, and load balancing modes
USB Interface UPS, Tape Devices, Printers
Expansion Array Supports up to 3 SnapExpansion Chassis
Expansion Array Interface SAS HBA optional
Local Backup Interface 6Gb SAS (optional), USB 2.0
Physical / Mounting Width 17.17 in (436 mm) Height 1.73 in (44 mm) Depth 19.25 in (489 mm) Weight: Without Drives: 18 lbs (8.2 kg) With 4 Drives: 24 lbs (10.9 kg)
Agency Approvals cTUVus, CE, VCCI, FCC Class A
Power Power Rating: 150W, 100-240 VAC, 50-60 Hz
Input Current:Max 4A (RMS) @ 115Vac, 2A (RMS) @ 230Vac
Power Consumption: 80W (steady state)
Heat Dissipation: 273BTUs/Hr
Environmental Limits Operating Environment: Temperature: 50 F to 95 F (10 C to 35 C), Humidity Range: 20% to 80%, Vibration: 1G at 10-300Hz random for 120 minutes , Shock: 6 pulses of 33G for up to 2ms, Altitude: 0 ft. to 10,000 ft (0 m to 3,048 m)

Non-Operating Environment: Temperature: 14 F to 149 F (-10 C to 65 C), Humidity Range: 5% to 95% Vibration: 2G at 5-500Hz for 90 minutes, Altitude: 0 ft. to 35,000 ft. (0 m to 10,668 m)
Standard Warranty 3-year: 24x7 Telephone Support, Advanced Parts Replacement
Supported Platforms
Certifications Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 Hyper-V, VMWare
