- Premium alloys inside power delivery components defeat the heat for cards that run better, cooler, and longer than reference.
- GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface.
- Drive up to four HD displays (up to three with NVIDIA Surround technology), or connect to a 3D-enabled TV for a true cinematic 3D experience
Overview
Efficiently Silent, Visually Vibrant
ASUS Exclusive Innovation
Super Alloy Power
Premium alloys inside power delivery components defeat the heat for cards that run better, cooler, and longer than reference.
Dust-proof Fan
Unique fan design dissipates heat efficiently while extending a graphic card’s lifespan by 25%* through increased dust and particle resistance.
GPU Tweak
Real-time and intuitive graphics tuning
- Detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time and detailed multi-parameter info
- 2D/ 3D switcher can lock the card in 3D mode for higher benchmarks
- Automatically check and update drivers and BIOS versions
- Sync GPU clocks and voltages for easier overclocking
Graphics GPU Features
Powered by NVIDIA® GeForce® GT640
NVIDIA® PhysX®
Dynamic visual effects like blazing explosions, reactive debris, realistic water, and lifelike characters.
NVIDIA® 3D Vision™ Surround Ready
Immersive yourself in 3D gaming world.
Microsoft® Windows® 7 Compatible
Enable PC users to enjoy an advanced computing experience and to do more with their PC
NVIDIA® CUDA™
Unlocks the power of GPU’s processor cores to accelerate the most demanding system tasks
4 HD displays support
Support 4 HD displays with Nvidia Surround® technology or to connect a 3D-enabled TV for a true cinematic Blu-ray 3D experience.
DirectX® 11 Done Right
Brings new levels of visual realism to gaming on the PC and get top-notch performance

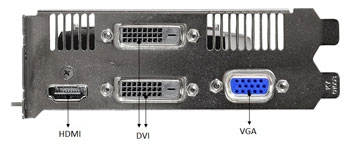

I/O Ports Highlight
Specifications
| Graphics Engine |
NVIDIA GeForce GT 640 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
DDR3 2GB |
| Engine Clock |
901 MHz |
| Shader Clock |
1802 MHz |
| Memory Clock |
1782 MHz ( DDR3 ) |
| Memory Interface |
128-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
D-Sub Output : Yes x 1
DVI Output : Yes x 2 (DVI-D)
HDMI Output : Yes x 1
HDCP Support : Yes |
| Software |
ASUS Driver& Utilities
GPU Tweak |
| ASUS Features |
Super Alloy Power |
| Dimensions |
8.27 " x 4.92 " Inch |
