All stock codes associated to this product
24EPGX55AC121R, 24EPG-X55AC1-21R, GZPGREENMAX550, GZP-GREENMAX-550

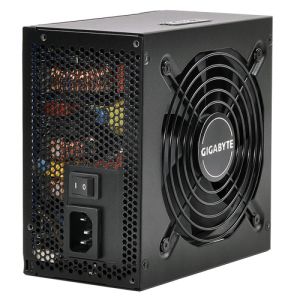

GreenMax 550W
Key Features
Intel Specification Complies with Intel ATX 12V v2.3 power supply design guide.
Solid Secondary Capacitors
High quality capacitors ensure the long life cycle.
Triple +12V Rails
3 rails +12V design, capable of supplying higher power output.
Dual SLI
NVIDIA certified multiple graphic accelerators support up to 2 graphic cards.
Fan Speed Control
Adjust the fan speed automatically through the intelligent fan control sensor.
12cm Cooling Fan
12cm silent cooling fan with smart fan control sensor.
Japan Made Capacitor
Best reliability Japan made capacitor, prolonging the life cycle of each power supply unit and provide a more steady output.
Sleeve Cable
Sleeve cable for good air convection and tidiness.
Green Power
Green design, conserve more energy and induces lower power loss.
PCI-E 2.0 Ready
Support the latest specification (6+2)-Pin.
EUP Ready
Complies with newest Europe EUP energy saving specifiction.
Multi-Protection
Over-voltage, over-current, under-voltage and short-circuit protection to ensure the sytem stability.
NVIDIA SLI-Ready Certified
Official SLI™ trademark certified by NVIDIA cooperation assuring SLI configuration support.
80 Plus Bronze Certified
High efficiency circuit design, save both the energy and your cost.
RoHS Certified
Environment friendly, complying with RoHS & WEEE regulations.
Specifications:
| Model no. |
GE-X550A-C1 |
| Dimension ( L x W x H ) |
150 x 150 x 86 mm |
| Weight |
2.5 kg |
| Connector |
| 24-pin Motherboard Connector |
1 |
| 4+4-pin +12V CPU Connector |
1 |
| (6+2)-pin PCI-E 2.0 Connectors |
2 |
| SATA Connectors |
5 |
| 4-pin Peripheral Connectors |
4 |
| 4-pin Floppy Connector |
1 |
|
| Info |
| AC INPUT |
100-240Vac 10-6A |
| DC OUTPUT |
+3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
-12V |
+5Vsb |
| MAX OUTPUT CURRENT |
23A |
20A |
25A |
22A |
22A |
0.3A |
2.5A |
| MAX COMBINED WATTAGE |
130W |
518W |
3.6W |
12.5W |
| 533.9W |
16.1W |
| 550W |
|
| Safety Approval |
CE, CB, cUL, FCC, BSMI, C-Tick, TUV |
