First-choice Thunderbolt™ Z77 Motherboard - Blistering-fast Data Transfers, Blazing Performance Boosts, and DLNA Streaming Made Easy
- Dual Intelligent Processors 3 with SMART DIGI+ Power Control
- SMART DIGI+ - Get a Blazing Performance Boost and CPU Wattage Requirements Cut in Half!
- Thunderbolt onboard - Blistering-fast Data Transfer and Daisy Chain Expansion
- Wi-Fi GO! - DLNA Streaming and Remote Desktop Made Easy
- Fan Xpert 2 - The Most Customizable Fan Controls\
- USB 3.0 Boost - Faster USB 3.0 Transmission with UASP(170%)
"Intel and Asus have worked closely on the implementation of Thunderbolt™ technology onto their motherboards”, said Jason Ziller, Intel’s Director of Thunderbolt Marketing. “It is our pleasure to state the P8Z77-V PREMIUM is the first Thunderbolt certified motherboard in the industry, a testament to its solid design and compatibility."

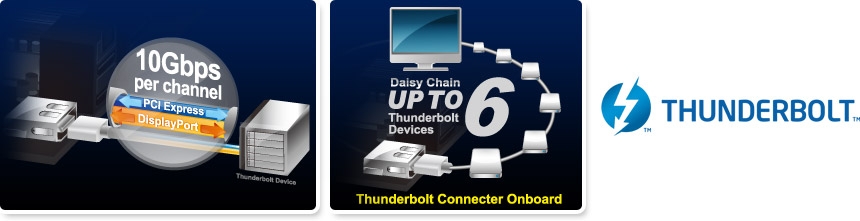

An industry first, ASUS has placed Thunderbolt I/O technology onboard, and are set to revolutionize the speed at which peripherals and displays operate. Featuring a maximum bi-directional speed of 10 Gbps, Thunderbolt is 2 times faster than USB 3.0 and an incredible 20 times faster than USB 2.0. And with the ability to daisy-chain up to six devices without the need for a hub or switch, that means less overheard for a clutter free computing experience. For example, users can connect multiple native Thunderbolt storage devices, an HD video capture device and even an HD display to a single Thunderbolt chain while maintaining maximum throughput. You can also connect a DisplayPort, DVI, HDMI or VGA display with an existing adapter.
Dual Intelligent Processors 3 with SMART DIGI+ Technology
The world’s first Dual Intelligent Processors from ASUS pioneered twin onboard chips - TPU (TurboV Processing Unit) and EPU (Energy Processing Unit). Dual Intelligent Processors 3 builds on that foundation with new SMART DIGI+ power control, which includes multiple digital voltage controllers, allowing ultra-precise tuning for the CPU, iGPU and DRAM. It’s upgraded with one-click extreme performance optimization and selectable CPU wattage levels, offering easier power control and better power savings with the user-friendly AI Suite II utility.
TPU plus SMART DIGI+
TPU with the All-New SMART DIGI+ for a Blazing Performance Boost

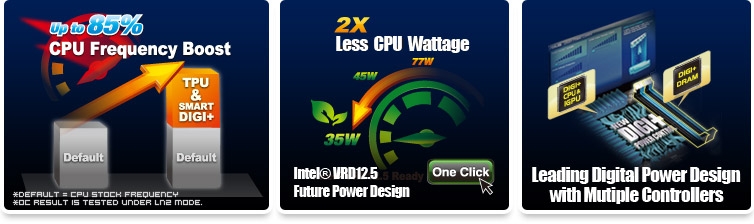

Always at the forefront of power design, ASUS propels you into the future standard of power management again by SMART DIGI+ Technology, which works with the TPU (TurboV Processing Unit) to ramps up performance to its maximum. Enable the all-new SMART DIGI+ key with a single click and adjust CPU ratios manually in the TPU to increase CPU frequency up to an incredible 85%!
CPU Wattage Cut in Half!
SMART DIGI+ Technology also includes the Smart CPU Power Level profile, which reduces CPU power consumption to a specific indicated wattage with a single click, creating a cooler and quieter PC. With next generation Intel® VRD 12.5 future power technology, ASUS once again leaps to the future of innovation.
ASUS Exclusive Features
Connect Your Life – The Perfect Fusion of Desktop, Smartphones and Pads

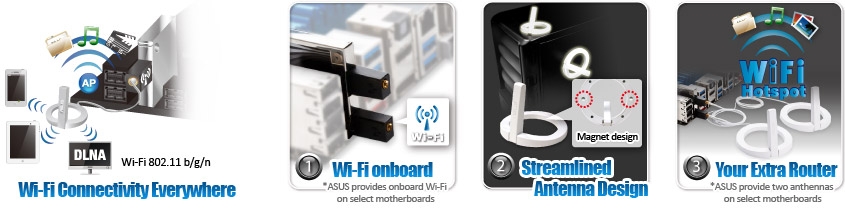

ASUS Wi-Fi GO! makes enjoying home entertainment and remote control capabilities easier than ever by linking PCs, pads, smartphones and TV together. With a Wi-Fi module on board, ASUS Wi-Fi GO! adds a host of useful and free Wi-Fi functions, which provide DLNA streaming so you can enjoy a home theater PC, while also providing remote access to your PC with a smart device. This feature leads the market by integrating Wi-Fi connectivity, DLNA access and all smart devices with a one-stop utility for a futuristic connected lifestyle.

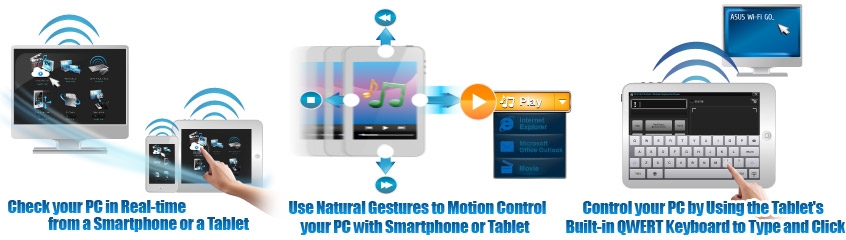

Turn smartphones and tablets into a remote control:
Remote Desktop: access your PC from a tablet? No sweat! Control your PC in real-time from a mobile device for complete comfort. This function brings notebook-like convenience, by creating a virtual remote desktop, offering portable access to your data in desktop with a smartphone or pad.
Motion control your PC: entertaining and customizable! Using natural gestures, you can move directionally to use applications with a smartphone or tablet’s motion sensors. For example, in media players you can fast forward, go next, stop, or create a music playing motion control profile. You can even program sensor scenarios to design your own motion-based game!
Remote keyboard and mouse: sit back and control your computer by using your tablet’s built-in QWERTY keyboard to type and click !
(Ensure to download Wi-Fi GO! Remote to your smart devices either from Android Market or App store.)

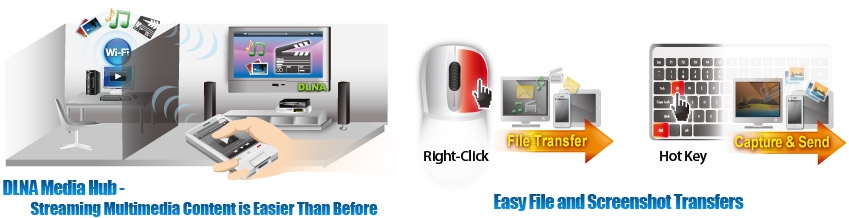

DLNA streaming made easy:enjoy HD content, music and photos from the PC on your DLNA devices via Wi-Fi connectivity, the perfect match for creating your own home theater!
Easy file and screenshot transfers:
File Transfer: send and share files between your PC and smart devices* with only a right click on the mouse.
Capture & Send: capture and send screen shots from your PC to smart devices directly by pressing the hotkey**
*iPad/iPhone can only send, not receive files from the PC.
**Hotkey set by users.
* Set up Your Home PC with Wi-Fi GO!
Wi-Fi environment setup: connect PC and smart devices on the same home network
Install Wi-Fi GO! software on your PC
Download Wi-Fi GO! Remote to your smart devices (Supported Systems: iOS 4.0 or later & Android 2.3 or later)
Set up complete - get a host of useful free apps with ASUS Wi-Fi GO!
Fan Xpert 2
The Most Customizable Cooling Controls, Ever

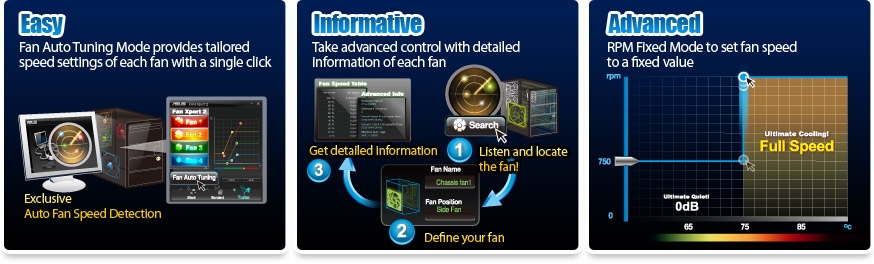

ASUS Fan Xpert 2 unleash the true potential of your fans for the ultimate cooling and silence. Learn how to become a real fan expert with our easy, informative and flexible fan settings! > Click Here to Learn More
Fan Auto Tuning Mode
Seeing an opportunity for more fine-tuned control, Hardware-level ASUS Fan Xpert 2 literally blows away the competition. It provides an exclusive Fan Auto Tuning Mode to scan each fan’s characteristics through the exclusive automatic fan speed detection, giving custom speed settings of each fan with a single click, achieving the best balance of cooling performance and low noise.
RPM Fixed Mode
Fan Xpert 2 also includes an RPM Fixed Mode for users who wish to reduce noise levels to near 0dB with highly specific fan speed control. It reacts to system loads for greater control.
USB 3.0 Boost
Faster USB 3.0 Transmission with UASP
New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction. > Click Here to Learn More
World’s 1st USB 3.0 UASP Support – 170% faster instantly
Complete USB 3.0 Solution – Performance boost for most USB devices
Simple Plug & Boost – Auto detection design ensures best performance always
USB BIOS Flashback
Simple Plug & Press - Hardware-based BIOS Flashback

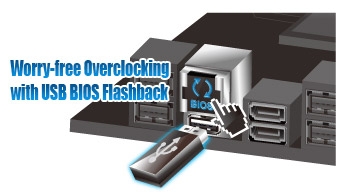

A truly revolutionary hardware-based update solution. USB BIOS Flashback offers the most convenient way ever to update the BIOS! It allows users to update new UEFI BIOS versions even without hardware such as a CPU or DRAM installed into the motherboard. Just plug in a USB flash drive containing the BIOS file, and press the BIOS Flashback button for 3 seconds with the power supply connected. The UEFI BIOS will then automatically update without requiring further interaction. With its new, complementary Windows application, users can regularly check for UEFI BIOS updates and download the latest BIOS automatically. Hassle-free updating for the ultimate convenience!
Real-time Network Bandwidth Control
With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.
LucidLogix Virtu MVP
Up to 60% Hybrid Graphics Boost and 3X Faster Video Conversion
LucidLogix Virtu MVP featuring HyperFormance™ Technology boosts your discrete graphics card up to 60% beyond its original performance through the test of 3DMark Vantage. Designed for Intel® processor graphics and Windows® 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. Also with the newly designed Virtual Sync, users can enjoy a smoother gaming experience by eliminating tearing artifacts. LucidLogix Virtu MVP could also dynamically assign tasks to the best available graphics resource, based on power, performance and system load. This allows users to fully utilize 3x faster video conversion with Intel® Quick Sync Video 2.0 technology while retaining high-end 3D rendering and gaming performance, provided by both NVIDIA® and AMD graphic cards. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly. For users searching for perfection, LucidLogix Virtu MVP provides great graphical performance and the best flexibility and efficiency.
||Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
||4 x DIMM, Max. 32GB, DDR3 2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
||VGA output support
Data transfer rate up to 10 Gbps
Daisy-chain up to 6 Thunderbolt devices
||Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB/Thunderbolt ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
- Supports Thunderbolt with max. resolution 2560 x 1600 @ 60 Hz
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
||Supports NVIDIA Quad-GPU SLI Technology *1
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
Supports LucidLogix Virtu MVP Technology *2
||3 x PCIe 3.0/2.0 x16 *3
2 x PCIe 2.0 x16 *4
2 x PCIe 2.0 x1
||Intel Z77 chipset : *5
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *5
ASMedia PCIe SATA controller : *6
2 x SATA 6Gb/s port(s), navy blue
||Intel 82579V, 1 x Gigabit LAN Controller(s)
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
|Wireless Data Network
||Wi-Fi 802.11 b/g/n
Supports single band frequency 2.4GHz
||Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
||ASMedia USB 3.0 controller : *7
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel Z77 chipset : *8
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel Z77 chipset :
10 x USB 2.0 port(s) (10 at mid-board)
||Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
||ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control :
SMART DIGI+ :
- Smart DIGI+ Key- quickly delivers higher VRM frequency, voltage and current for superior CPU/iGPU/DRAM overclocking performance with one switch.
- Smart CPU Power Level (Intel VRD 12.5 Future Power Design)- provides the best digital power saving conditions.
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 12 Phase Power Design
(8 -phase for CPU, 4 -phase for iGPU)
- Industry leading Digital 2 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi GO! Remote for portable Smartphone/Tablet, supporting iOS & Android systems
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
ASUS Exclusive Features :
- USB BIOS Flashback
- AI Suite II
- Ai Charger+
- USB Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
|Back I/O Ports
||1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x Thunderbolt port(s) *9
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x WLAN connector(s) for ASUS wireless module
|Internal I/O Ports
||1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
5 x USB 2.0 connector(s) support(s) additional 10 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x CPU/DRAM overvoltage jumper(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
2 x SATA 3Gb/s cable(s)
2 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB 2.0 and eSATA module(s)
1 x ASUS Wi-Fi GO! card(s)
1 x Wi-Fi Ring Moving Antenna(s)
||64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
||WfM 2.0, DMI 2.0, WOL by PME, PXE
Anti-virus software (OEM version)
||ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
||*1: With 2 PCIex16 graphics cards
*2: LucidLogix Virtu MVP supports Windows 7 operating systems.
*3: PCIe 3.0 speed is supported by Intel 3rd generation Core processors. Install the Ivy Bridge CPU before installing a device on the PCIeX16_3 slot.
*4: The PCIe x1_2 slot shares bandwidth with SATA6G_E12. SATA6G_E12 is enabled by default for system resource optimization.
*5: Supports on Intel Core processor family with Windows 7 operating systems.
*6: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
*7: Supports ASUS USB 3.0 Boost UASP Mode.
*8: Supports ASUS USB 3.0 Boost Turbo Mode.
*9: Thunderbolt port shares bandwidth with SATA6G_E12, USB3_E12 and PCIeX1_2. The Thunderbolt port default runs at X2(Auto) mode, SATA6G_E12 and USB3_E12 are enabled for system resource optimization. Go to Advanced> Onboard Devices Configuration> Thunderbolt bandwidth in BIOS to configure the bandwidth to [X4] for full speed support.
