All stock codes associated to this product
AFACO140P0GBA01, AFACO-140P0-GBA01, ACF14PWM, AC-F14-PWM

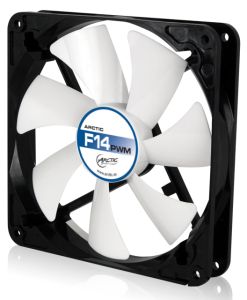

ARCTIC F PWM
PWM Case Fan with Standard Case
140mm Fan
Description
The ARCTIC F PWM forward the PWM signal from the CPU to the whole case ventilation system. The entire system is cooled quietly, but still offers the superb performance when needed.
Versatile Applicable
With the standard 25mm frame, the ARCTIC F PWM can be applied as intake or outtake system fan.
Silent Operation
Thanks to fluid dynamic bearing and the patented fan holder design, the ARCTIC F PWM is not only quiet, but also highly durable.
Quick and Easy Setup

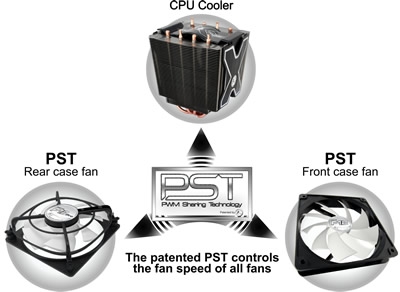

Via the PWM signal, the CPU fan is controlled by the mainboard to reach the ideal temperature for the CPU. The patented PST (PWM Sharing Technology) is forwarding the PWM signal to all other fans inside the system. This way, all fans are spinning at the same speed. This provides silent operation in idle mode, but also gives sufficient performance, when required to offer efficient cooling.
Specifications:
| Dimensions (Product) |
F8 : 80 L x 80 W x 25 H mm
F9: 92 L x 92 W x 25 H mm
F12: 120 L x 120 W x 25 H mm
F14: 140 L x 140 W x 25 H mm |
| Fan |
F8 : 80 mm, 860 - 2,000 RPM
F9: 92 mm, 530 - 1,800 RPM
F12: 120 mm, 600 - 1,350 RPM
F14: 140 mm, 550 - 1,350 RPM |
| Air Flow |
F8 : 31 CFM / 52.7 m3/h
F9 : 43 CFM / 73.1 m3/h
F12 : 74 CFM / 125.7 m3/h
F14 : 77.3 CFM / 131.4 m3 |
| Bearing |
Fluid Dynamic Bearing |
| Voltage |
6 - 12 V |
| Noise Level |
F8 : 0.3 Sone
F9: 0.4 Sone
F12: 0.3 Sone
F14: 0.5 Sone |
| Net Weight |
F8 : 71 g
F9: 84 g
F12: 107 g
F14: 146 g |
| Limited Warranty |
6 years |
| UPC |
F8 : 0872767002630
F9: 0872767002647
F12: 0872767002654
F14: 0872767005686 |
| itemnumber |
AFACO-140P0-GBA01 |
| UPC |
|
| Gross Weight |
0.25 kg |
