All stock codes associated to this product
PPA4502704, FSPRA450, FSP-RA-450
RAIDER 450
Best choice in performance - RAIDER Series, 80PLUS Bronze certified, it comes with the +12V single rail and SATA array cable design, RAIDER is made for gamers and hardware enthusiasts...
Introduction
Best choice in performance - RAIDER Series
The worldwide leader in high-performance power supply unit manufacturer, today announces RAIDER Series Power Supply. It is one of the mainstream 80PLUS Bronze certified. It comes with the +12V single rail and SATA array cable design, RAIDER is made for gamers and hardware enthusiasts.With 450/550/650/750W models in its desktop lineup.

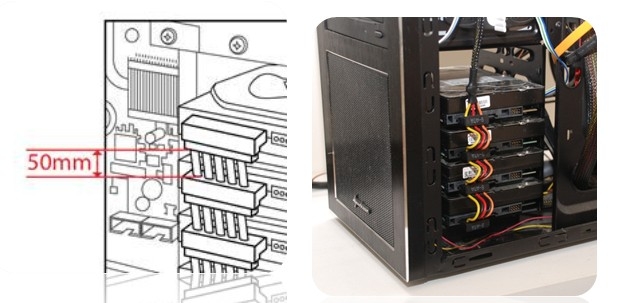

SATA Array Cable, Easy Installation
50mm intervals for 4 SATA device installation
Optimized the airflow in case
No-hassle with case side panel
+12V Single Rail Design
-Designed for power-intensive VGA cards.
-Provides strong power to any overloading condition.
POST SR (Post Synchronous Rectifier)
Optimized the 3.3V/5V/12V start-up setting, with ZCS PFC benefits, it may avoid the switching loss and strengthen the effiency significantly.
Multiple PCI-E Connectors
PCI-E 6+2 pin connectors for all kinds of graphic cards

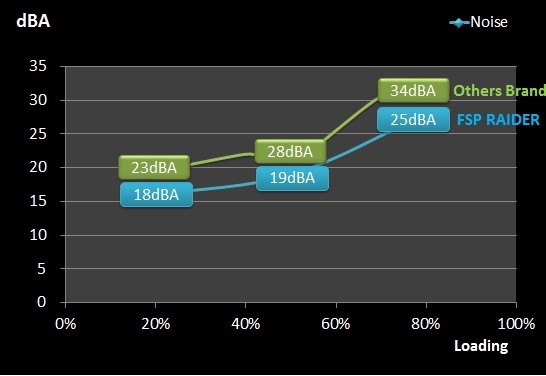

120mm Quiet Fan
20% loading < 18dBA, 50% Loading < 19dBA, 100% Loading < 25dBa
Features
- +12V Single Rail Design
- SATA Array Cable Design
- 120mm Quite Fan
- All Series come with PCI-E 6+2 Pin Connectors
- FSP MIA ICTM Inside
- 80PLUS Bronze Certified, efficiency > 85%
- Complies with ATX 12V 2.31 & EPS 12V 2.92 Version
- Active PFC
- Complete Protections : OCP, OVP, OPP, SCP, UVP
- Full Safety Approved
Specifications
Product Specification
| Model |
RA450 |
| Efficiency |
85% |
| Input Voltage |
100-240Vac |
| Frequency |
50-60Hz |
| PFC |
Active PFC (0.99) |
| Power Provided |
450W |
| Over-Current Protection |
V |
| Over-Voltage Protection |
V |
| Short-Circuit Protection |
V |
| Line Type/ Main connector |
20+4Pin*1 |
| EPS 12V 4+4 pin Connector |
1 |
| 4 pin Floopy Connector |
1 |
| SATA Connector |
5 |
| 4 pin Molex Connector |
3 |
| PCI-E 6+2 pin Connector |
2 |
| Case Color |
black |
| Chassis Fan |
120mm |
| Noise |
<21 dBA |
| Form Factor |
ATX 12V V2.3 & EPS 12V V2.92 |
| Safety Approval |
CE, FCC, CB, UL, TUV, BSMI, CCC, GOST |
| Dimensions(Lx W x H)mm |
150 x 140 x 86 |
