Part Number:
199252
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
ST-MCP35X2-BK
STMCP35X2BK
Shipping Weight:
0.8 KG (Includes product packaging)
MCP35X2

Part Number: MCP35X2-BK

Colour: Black

Product Description

The MCP35X2 is the dual motor version of Swiftech's flagship MCP35X pump. The product is designed to provide extreme flow rates in loops that include multiple devices, for example multiple radiators and triple or quad SLI/Crossfire liquid cooled graphics cards;  pump redundancy also provides maximum safety in mission critical systems: if one pump fails, flow will continue to circulate thru the system thanks to the second pump.

The unit features:

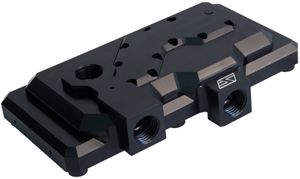

  • The MCP35X2-H dual pump housing:
    • designed to provide considerably enhanced hydraulic performance;
    • compatible with multiple tubing options thanks to the G1/4 port standard;
    • compatible with theoptionalMCP35X-Res reservoir;

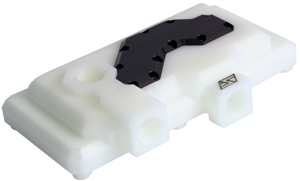

    • available in two colors; classic black or fashionable white
    • also sold separately, andcompatible with all MCP35 series pumps
  • TwoMCP35X pump motors:
    • 12VDC andPWM controlled, allowing variable speed control thru the motherboard from 1300 to 4500 rpm, and linked with Swiftech's PWM splitter cable for simultaneous pump speed adjustements using only one PWM motherboard header.

Features & Beneftis

  • Small Footprint: L4.9" x W2.8" x H1.6" (L126 x W72 x H41mm);
  • 50,000 hours MTBF (Mean Time Between Failure) ;
  • 12 Volts DC convenience: plugs into the computer power supply

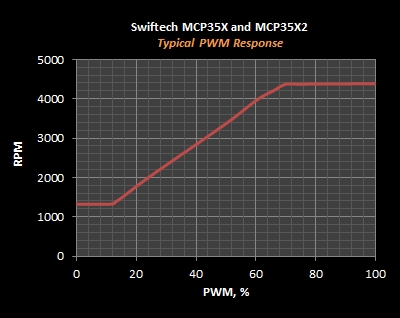

  • Variable speed control via PWM thru the motherboard, from 1300 rpm for completely silent operation, to 4500 rpm for ultra high flow performance;
  • Simultaneous pump speed control using onePWM motherboard header is achieved usingthe included PWM splitter cable.

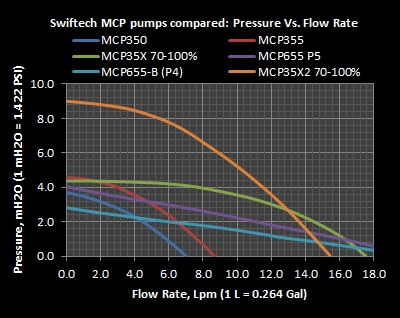

  • Superior head pressure and flow rate (in the useable range) to any pump in its footprint: the X2 features twice the head pressure as the MCP35X.
  • G1/4" ports standard for compatibility with a large assorment of fittings;
  • No maintenance when used with distilled water, and anti-fungal additives (our HydrX additive is recommended);
  • Quick installation with adhesive neoprene pad, or permanent installation with supplied hardware;
  • Optional "built-in" MCP35X-Res reservoir;
  • Ready for upcoming 5 1/4" bay reservoir solutions by Swiftech.
  • 2 year warranty

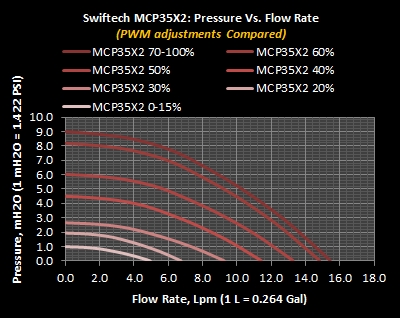

Performance Charts




Specifications:

The MCP35X2 housing is precision machined from either black or white POM, and is also available for sale separately. It is compatible with all previous MPC35 class pumps.






Technical Specifications

Motor type 2x Electronically commutated, brushless DC, spherical motors
Nominal voltage 12 V DC
Operating voltage range 9 to 13.4 VDC
Max. nominal power (@12 V) 18W x 2
Max. nominal current (@12 V) 1.5 A x 2
Max. nominal head (@12 V) 27.9 ft (8.5m)
Max nominal discharge (@12 V) ~ 4.17 GPM (15.8 LPM)
Maximum pressure 22 PSI (1.5 BAR)
Temperature range Up to 140 F (60 C)
Electrical power connector 2x Molex 4 pin
PWM + RPM Signals 2x 4-pin connector
RoHS Compliant
Port thread standard G1/4
MTBF 50,000 Hours
Weight 15oz
Dimensions (not including fittings) L4.9" x W2.8" x H1.6" (L126 x W72 x H42mm)

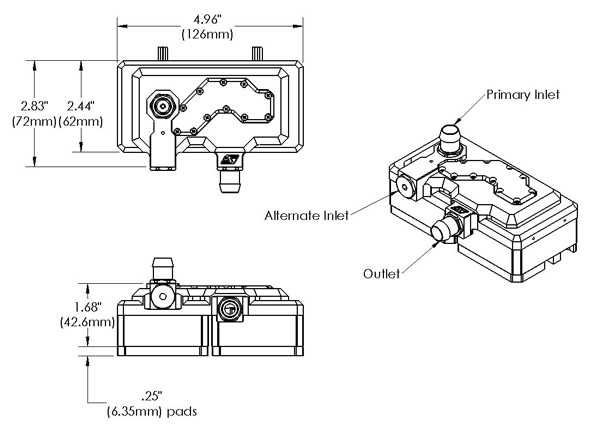

Dimensions


No additional files, specification sheets, guides or documentation found for product.

No related products found.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
