ST-MCR220-XP | Swiftech MCR220-XP eXtreme Performance Radiator Series - Dual

Part Number: MCR220-XP





The MCRx20-XP (eXtreme Performance) series radiators are high-performance liquid-to-air heat exchangers optimized for use with medium speed 120mm fans and specifically engineered in a slim for factor for high-end liquid cooled Personal Computers.

The XP series derive from the Quiet Power technology (QP series) first introduced in 2005 and both series share the exact same dimensions. They differentiate themselves by a higher fin-per-inch (FPI) count where the QP series feature a 12 FPI specification versus 20 FPI for the new XP series.   A higher FPI count means that the XP series are more efficient at dissipating heat in the higher RPM fan ranges.  When  large heat loads are involved for example a CPU and GPU(s) in the loop, this may translate into improved coolant temperature.

In general, we recommend selecting a radiator in the XP series for applications where fans will run from 1200 RPM and above, and selecting among the QP series where fans will run from 1200 RPM and below. A more refined analysis including various coolant flow rate scenarios is reported in the performance section.

The XP series are available in 4 sizes: 1x120mm, 2x120mm, 3x120mm, and 4x120mm.





Features	Benefits
Thermal designis optimized for maximum heat dissipation with 120mm fans featuring medium air output (1000 to 1800 rpm)	High performancecoolingat moderate noise levels.
Slim form factor (34mm)	Reduces radiatorintrusion on neighboring components, helps compatibility
Self-purging plenums	Help eliminate accumulation of air in the radiator, and ennoying gurgling noises
Industry standard fan spacing (15mm)	15mm fan spacing is adopted as a standard by most case manufacturers
Brass tubes	No corrosion
Copper fins	Better heat dissipation
1/4" BSPP (G1/4) threaded hubs with flat face	Compatible with industry standardG1/4 fittings with captive o-ring
Quality assurance: all our radiators are ultrasonically cleaned to remove solder flux, and individually pressure-tested for leaks!

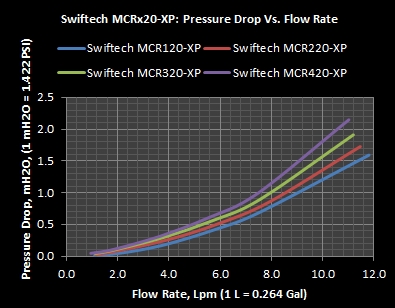

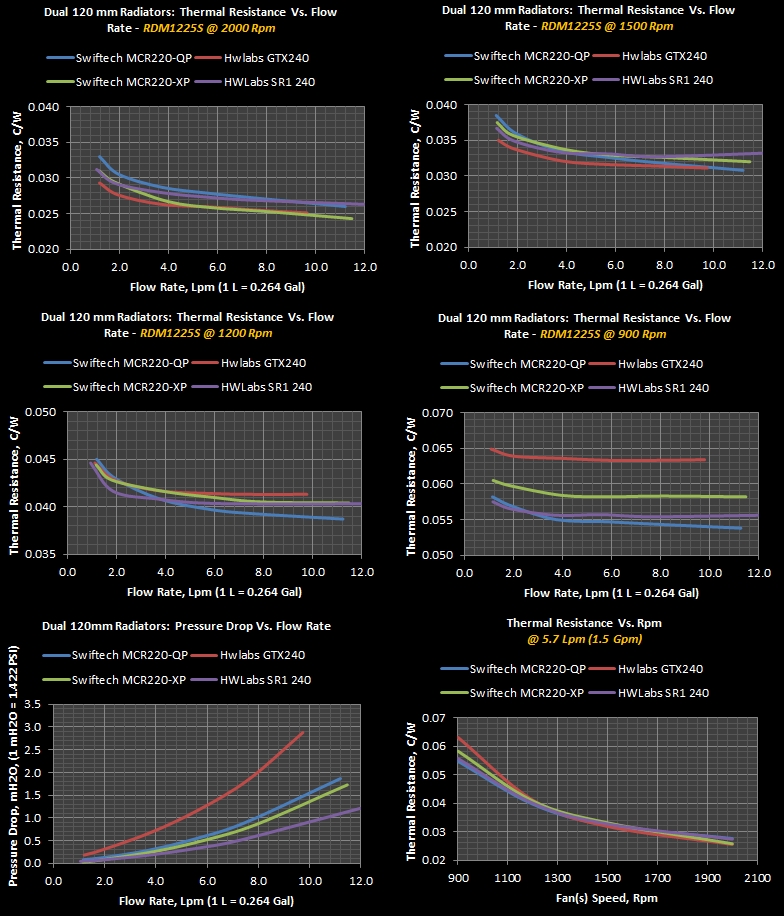

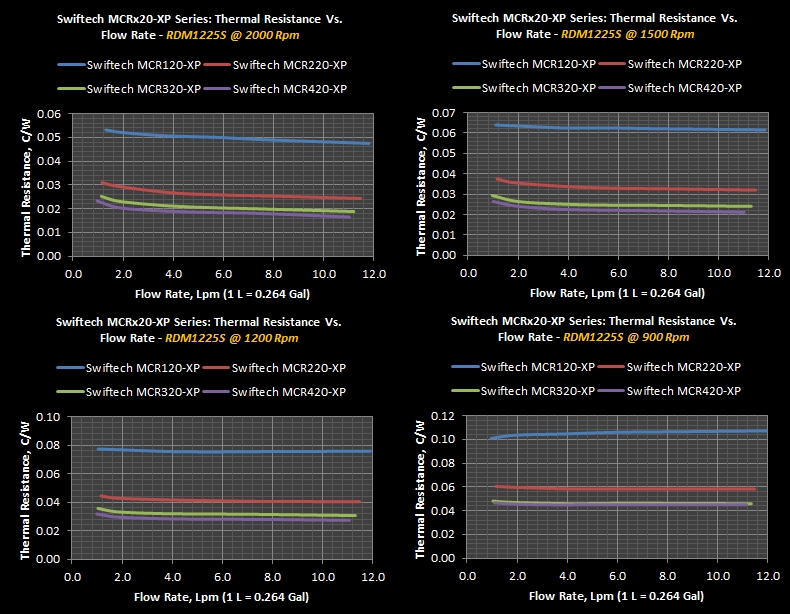

We conducted comparative testing between the QP and XP lines, and the data is reported below:





Competitive product data is included for reference only, and may only reflect on the specific sample products being tested.

Analysis:





Optimized fin-density for maximum heat dissipationwith medium speed fans (20 fpi)

2-pass, single row construction

Brass body and brass tubes

Louvered copper fins

Plenum Style: Self-purging brass plenum chambers

Slim form factor (34mm)

High-durability acrylic paint: Satin black finish

M3.5 threaded fan and case-mounting holes

Hub specifications & fittings compatibility: G1/4"flat face threaded hubs, compatible with industry standard captive o-ring type fittings (such as Swiftech "Eurostyle" series of barb fittings)

ROHS compliant

Weight: MCR120-XP 15oz (408g), MCR220-XP 1lb 8oz (594g), MCR320-XP 2lb(1048g), MCR420-XP 2lb 6oz (1501g)

Quality assurance: all radiators are ultrasonicallycleaned to remove solder flux as well as pressure-tested for leaks.
