All stock codes associated to this product
JUD5005U, JUD500-5U, J5JUD5005U, J5-JUD500-5U
JUD500 Ultra Station
USB 3.0 Fully Functional Laptop Docking Station
For Ultrabook & Tablet
For MacBook Air & iPad

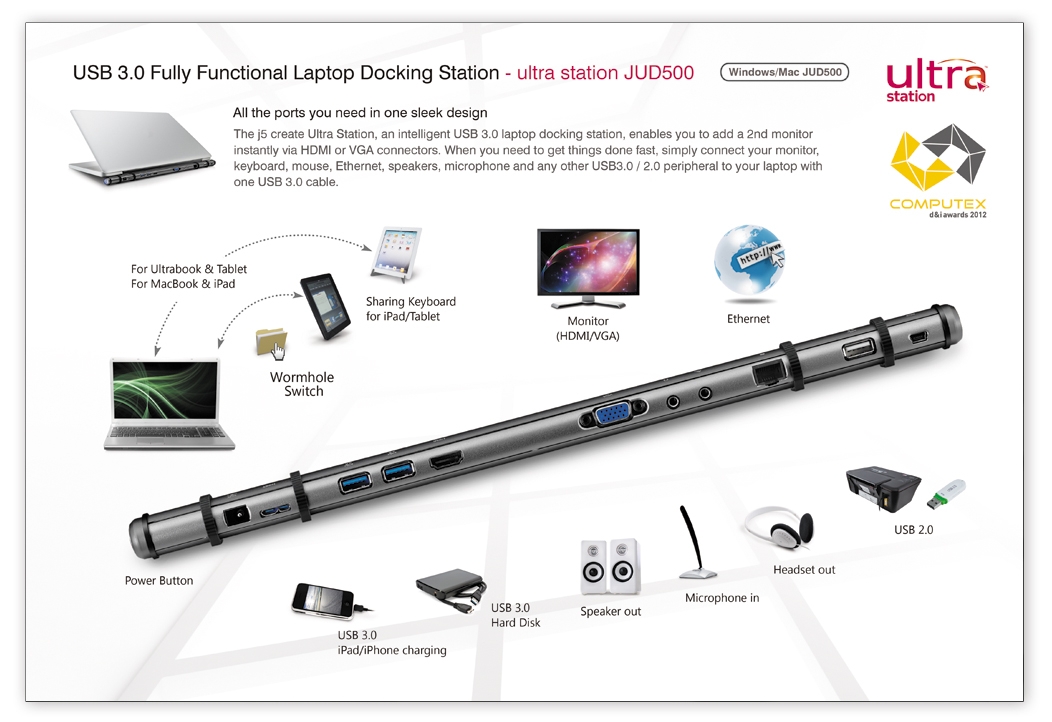

All the ports you need in one sleek design
The j5 create Ultra Station, an intelligent USB 3.0 laptop docking station, enables you to add a 2nd monitor instantly via HDMI or VGA connectors. When you need to get things done fast, simply connect your monitor, keyboard, mouse, Ethernet, speakers, microphone and any other USB3.0 / 2.0 peripheral to your laptop with one USB 3.0 cable.
Now you can use the Ultra Station's keyboard/mouse Wormhole function to drag & drop across two computers for file copying & sharing. It is the perfect solution for expanding your Ultrabook or MacBook ® into a full size workstation and it increases productivity with its cross-platform multitasking ability.
HDMI or VGA Display Port
- Use a 2nd Monitor without adding a new video card, avoiding complicated technical issues
- Move and view large spreadsheets across two screens without overlapping windows
- Type documents on one screen while viewing reference material on the other
- Use a second display for pallets/tools in Photoshop® or illustrator®
- Read and reply to emails on one screen and open email attachments on the other
- Ideal for editing between multi-panoramic graphics
- Great for monitoring stock exchange information on multiple windows simultaneously
Wormhole Switch
- Dynamic keyboard and mouse software that enables the ability to drag and drop files between 2 linked PCs for file sharing and copying.
- File Folder Drag & Drop - Drag a designated file from one computer and drop it onto another (This function does not work with the iPad).
- Mac and Windows Interactive - Key functions are interactive between all Mac and Mac to Windows, or Windows to Windows.
- Keyboard Mouse Sharing – Move your cursor between two computers and an additional monitor freely.
- Use the "Shortcut" to switch your cursor to the iPad's typing area (a virtual keyboard on iPad) which will enable you to use your computer's physical keyboard on iPad.
- Clipboard Copy & Paste - Easily use clipboard to copy and paste files. (This function does not work under iPad).
Features
- Super Speed USB 3.0 (5Gbps)
- Turns your MacBook or Ultrabook into a full size desktop configuration with a full size keyboard, monitor, mouse, speakers, etc, with one USB connection
- Integrated VGA & HDMI port supports display resolutions up to 2048×1050 @ 32 bit
- Keyboard and mouse sharing between two connected computers
- Clipboard text and picture sharing between 2 connected computers
- Speed and Convenience - drag and drop files without a flash drive
- Compatibility: Mac to Mac, Mac to Windows, Windows to Windows
- Dual screen setup: When you have a dual screen setup at one PC your mouse cursor can penetrate across all screens between the two computers.
- Aluminum housing non-toxic and recyclable
- Power On/ Off LED lighting
Specifications
Power
Power Button |
Blue Light when power is supplied to the docking station |
Power Mode |
Self-powered |
Power Adapter |
Input: AC 100-240V, 50~60 HzOutput: DC 5V/4A |
System Requirements
Operating System |
- Mac OS X 10.6 Snow Leopard /10.7 Lion compatible
Windows XP/ Windows 7
|
Computer Hardware |
|
Host
Upstream Port |
USB 3.0 Micro B Female connector |
Cable |
USB 3.0 Micro B to Type A |
Hub
Downstream Port |
USB 3.0 Type-A Female Connector with Battery Charge |
Downstream Port |
USB 3.0 Type-A Female Connector |
Downstream Port |
USB 2.0 Type-A Female Connector |
Video
VGA Port |
DB 15pin Female Connector |
HDMI Port |
Standard HDMI Female Connector (Include Audio) |
Support Modes |
Extended, Mirror, Primary Display Display Rotation: 0, 90, 180, 270
|
Resolutions and Color Depth
|
Aspect Ratio
|
Resolution
|
Color Depth
|
Wide Screen Display
|
16:9
|
2048 1152
|
16,32 bits
|
16:10
|
1920 1200
|
16,32 bits
|
16:9
|
1920 1080
|
16,32 bits
|
16:10
|
1680 1050
|
16,32 bits
|
16:9
|
1600 900
|
16,32 bits
|
16:10
|
1440 900
|
16,32 bits
|
16:9
|
1360 768
|
16,32 bits
|
16:10
|
1280 800
|
16,32 bits
|
15:9
|
1280 768
|
16,32 bits
|
16:9
|
1280 720
|
16,32 bits
|
Standard Display
|
4:3
|
1600 1200
|
16,32 bits
|
4:3
|
1400 1050
|
16,32 bits
|
5:4
|
1280 1024
|
16,32 bits
|
4:3
|
1280 960
|
16,32 bits
|
4:3
|
1152 864
|
16,32 bits
|
4:3
|
1024 768
|
16,32 bits
|
4:3
|
800 600
|
16,32 bits
|
|
Ethernet
Ethernet Port |
10/100 Base-T Ethernet RJ-45 connector |
Audio
Microphone |
3.5 mm stereo audio in |
Speaker |
3.5 mm stereo audio out |
Wormhole Switch
Wormhole port |
USB 2.0 mini B Female connector |
Cable |
USB 2.0, mini B to Type-A (2 meter) |
Transfer Rate |
Up to 20 Mbps, transfer rate |
Physical Specifications
Housing Material |
Aluminum |
Dimensions |
Main body: 386.4(W) 28.5(H)22(D) mm |
Weight |
138g |
Environment
Operating Temperature |
-10C ~55C (-50F~131F) |
Storage Temperature |
-25C~75 C (-77F~167F) |
Relative Humidity |
< 95% non-condensing |
Regulatory Compliance |
FCC, CE, C-Tick, VCCI |
RoHS |
RoHS compliant |
