Specifications
|
Description
|
|
Standards
|
IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i(WPA2 security), 802.11e(wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460),
|
|
Ports
|
Ethernet, Power
|
|
Switch
|
Power button (on/off)
|
|
Buttons
|
Reset
|
|
Cabling type
|
Category 5e or better
|
|
LEDs
|
Power, Wireless, LAN
|
|
Operating system
|
Linux
|
|

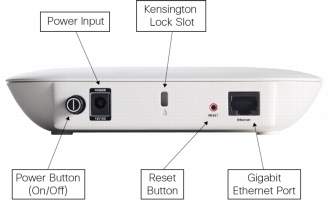

Physical Interfaces
|
|
Ports
|
Gigabit Ethernet, 12V DC power with support for 802.3af PoE
|
|
Power supply
|
Not included with access point, but supports external power 12V DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af Power over Ethernet
|
|
Buttons
|
Power (on/off) push button; Reset button
|
|
Lock slot
|
Slot for Kensington lock
|
|
LED
|
Power, Wireless, Ethernet
|
|
Physical Specifications
|
|
Physical dimensions (W x D x H)
|
6.66 x 6.67 x 1.38 in or 169.08 x 169.42 x 35 mm
|
|
Weight
|
0.606 lb or 275g
|
|
Network Capabilities
|
|
Network protocols
|
IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP)
|
|
VLAN support
|
Yes
|
|
Number of VLANs
|
1 management VLAN plus 8 VLANs for SSID
|
|
Multiple SSIDs
|
8
|
|
802.1Xsupplicant
|
Yes
|
|
802.11d
|
No
|
|
SSID to VLAN mapping
|
Yes
|
|
Auto channel selection
|
Yes
|
|
Spanning tree
|
Yes
|
|
Load balancing
|
Yes
|
|
IPv6
|
Yes
IPv6 Host support
IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.
|
|
Layer 2
|
802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN
|
|
Security
|
|
WEP/WPA/WPA2
|
Yes, including Enterprise authentication
|
|
Access control
|
Yes, management access control list (ACL)plus MAC ACL
|
|
Secure management
|
HTTPS
|
|
Wi-Fi Protected Setup (WPS)
|
Yes (soft WPS, no hardware push button)
|
|
SSID broadcast
|
Yes
|
|
Rogue access point detection
|
Yes
|
|
Mounting and Physical Security
|
|
Multiple mounting options
|
Desktop installation; mounting bracket included for easy ceiling or wall mounting
|
|
Physical security lock
|
Kensington lock slot
|
|
Quality of Service
|
|
Quality of service (QoS)
|
Wi-Fi Multimedia, Traffic Specification (WMM TSPEC)
|
|
Performance
|
|
Wireless throughput
|
Data rate =300 Mbps , actual client throughput will vary.
|
|
Recommended user support
|
Up to 32 connective users, 20 active users
|
|
Configuration
|
|
Web user interface
|
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
|
|
Management
|
|
Management protocols
|
Web browser, SNMP v3, Bonjour
|
|
Remote management
|
Yes
|
|
Event logging
|
Local, remote syslog, email alerts
|
|
Network diagnostics
|
Logging and packet capture
|
|
Web firmware upgrade
|
Firmware upgradable through web browser, imported/exported configuration file
|
|
Dynamic Host Configuration Protocol (DHCP)
|
DHCP client
|
|
IPv6 host
|
Yes
|
|
HTTP redirect
|
Yes, and captive portal
|
|
Wireless
|
|
Frequency
|
Selectable-band 2.4GHz or 5GHz (not concurrent)
|
|
Radio and modulation type
|
Single radio, orthogonal frequency division multiplexing (OFDM)
|
|
WLAN
|
802.11n
|
|
Operating channels
|
1 to 13 (depending on country)
|
|
Wireless isolation
|
Wireless isolation between clients
|
|
External antennas
|
None
|
|
Internal antennas
|
Internal fixed PIFA antenna
|
|
Antenna gain in dBi
|
2dBi each antenna
|
|
Transmitted output power
|
802.11b@11Mbps: 17dBm
802.11g@54Mbps: 13dBm
802.11n@HT20HT40, MCS15: 13dBm
|
|
Receiver sensitivity
|
802.11b: 11Mbps @ -86dBm
802.11g: 54Mbps @ -71dBm
802.11n: 300Mbps @ -64dBm
|
|
Wireless distribution system (WDS)
|
Yes
|
|
Roaming
|
Yes
|
|
Fast roaming
|
802.11i pre-authentication
|
|
Active WLAN clients
|
Same as number of users. 32 max connected users, 20 active users recommended
|
|
Multiple SSIDs
|
8
|
|
Wireless VLAN map
|
Yes
|
|
WLAN security
|
Yes
|
|
Wi-Fi Multimedia (WMM)
|
Yes, with automatic power save
|
|
Operating Modes
|
|
Access point
|
Access Point mode, WDS bridging, Client Bridge mode
|
|
Environmental
|
|
Power
|
12V 1ADC input, and IEEE802.3af compliant PoE
|
|
Certifications
|
FCC class B, CE, IC, Wi-Fi
|
|
Operating temperature
|
0 to 40C (32 to 104F)
|
|
Storage temperature
|
-20 to 70C (-4 to 158F)
|
|
Operating humidity
|
10% to 85% noncondensing
|
|
Storage humidity
|
5% to 90% noncondensing
|
|
Package Contents
|
|

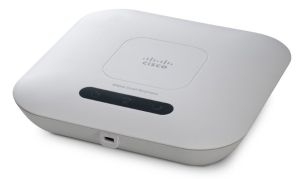

Cisco WAP321 Wireless-N Selectable-Band Access Point with PoE
Ceiling/wall mounting kit
User guide on CD-ROM
Ethernet network cable
Registration card
|
|
Minimum Requirements
|
|
802.11b, 802.11g, 802.11n wireless adapter with TCP/IP protocol installed per PC
Switch/router with PoE support or PoE injector when used with PoE
Web-based configuration: Java-enabled web browser
|
|
Warranty
|
|
Access point
|
Limited lifetime
|
