All stock codes associated to this product
PCQ18B, PC-Q18B, LLPCQ18B, LL-PC-Q18B

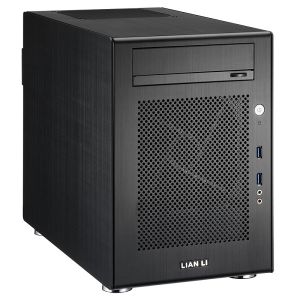

PC-Q18
Mini-Q Small is beautiful
140mm Fan
Thermal-Flow
There is a 140mm Intake fan input high air flow volume with lower RPM to push the cold air through the HDD cage.
140mm exhaust fan at the top of the chassis.
Case stand
Case stand with rubber pad.
Multi-media I/O ports
User can easily access USB3.0 and HD Audio.
Mounting Rack for fans
Anti-vibration, silent, easy assembling
Removeable HDD rack
Supports two of 3.5 inch and one of 2.5 inch HDDs easy installation and service when using two or thick long graphics cards, install 2.5" HDD only.
3.5" HDD Hotswap x4
Support four sata hot swap HDDs
Sata hotswap HDD cage, using thumb screws with rubber suspension, supports four 3.5 inch HDDs and two 2.5inch HDDs
+ 2.5" HDD x2
Compatibility
VGA card length: 340mm
PSU length: 160mm
CPU cooler height: 60mm
Specification
Case Type
Mini Tower Chassis
Dimensions
(W) 199mm x (H) 290mm x (D) 365mm
Front bezel Material
Aluminum
5.25" drive bay (External)
1
3.5" drive bay (External)
None
HDD bay
3.5-Inch HDD x4( Hotswap ) + 3.5-Inch HDD x2 or 2.5-Inch HDD x3
Motherboard
Mini-ITX / Mini-DTX
System Fan (Front)
140mm Fan x 1
System Fan (Top)
140mm Fan x 1
I/O Ports
USB 3.0 x 2 / HD Audio
Maximum Compatibility
VGA Card length: 340mm
PSU length: 160mm
CPU cooler height: 60mm
Package Dimensions
(W)411 mm x (H)271 mm x (D) 323mm
Power Supply
Standard ATX PS2 (Optional )
