All stock codes associated to this product
WD9001BKHG
SAS Hard Drives
WD XE
Features:
Form Factor:
2.5-inch Drive
Interface:
SAS 6 Gb/s
Capacity:
300 GB - 900 GB
Ultra-fast SAS storage.
WD XE delivers 6 Gb/s transfer rates, sustained sequential data rates of up to 204 MB/s and high random I/O rates.
Enterprise ready.
WD XE SAS hard drives provide up to 900 GB of high performance storage suitable for both enterprise server and enterprise storage applications.
Ultra-cool operation.
The small form-factor, 70 percent smaller than 3.5-inch drives, allows more system airflow resulting in lower cooling costs. In an environment where space and power are limited, the WD XE drives are an effective solution for high performance computing solutions such as power-constrained data centers, database transaction processing, and rack, tower, and blade servers.
Low power consumption.
This 2.5-inch SAS drive requires less than 8 watts to operate. And its small form-factor allows for more system airflow resulting in lower cooling costs.
Dual port, full duplex connectivity.
Offers higher reliability, performance and data availability by eliminating single points of failure, designed for high-availability mission-critical enterprise systems.
Industry’s highest reliability rating.
2 million hours MTBF.
Environmentally responsible.
In addition to being RoHS compliant, these drives are built with halogen reduced components.
Industry's highest reliability rating.
With a field-tested 2 million hour MTBF, this high performance drive is perfect for enterprise server and enterprise storage applications.
NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Rotary Acceleration Feed Forward (RAFF).
Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.
Ideal for:
High performance computing and mission-critical environments.
Specifications:

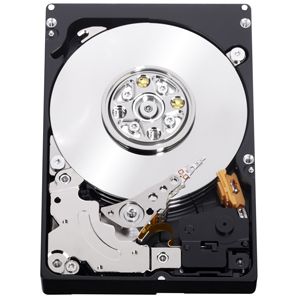

WD XE ( WD9001BKHG)
Product Specifications |
|
|
Interface |
SAS 6 Gb/s |
|
Performance Specifications |
|
|
Rotational Speed |
10,000 RPM (nominal) |
|
Buffer Size |
32 MB |
|
Transfer Rates |
|
Transfer Rate (Buffer To Disk) |
204 MB/s (Sustained) |
|
Physical Specifications |
|
|
Capacity |
900 GB |
|
Form Factor |
2.5-inch Drive |
|
User Sectors Per Drive |
1,758,174,768 |
|
Physical Dimensions |
|
English |
|
Height |
0.59 Inches |
|
Depth |
3.94 Inches |
|
Width |
2.75 Inches |
|
Weight |
0.51 Pounds |
|
Metric |
|
Height |
15 mm |
|
Depth |
100 mm |
|
Width |
69.85 mm |
|
Weight |
0.23 kg |
|
Environmental Specifications |
|
Shock |
|
Operating Shock (Read) |
65G, 2 ms |
|
Non-operating Shock |
300G, 2 ms |
|
Acoustics |
|
Idle Mode |
30 dBA (average) |
|
Seek Mode 0 |
37 dBA (average) |
|
Temperature (English) |
|
Operating |
41 F to 131 F |
|
Non-operating |
-40 F to 158 F |
|
Temperature (Metric) |
|
Operating |
5 C to 55 C |
|
Non-operating |
-40 C to 70 C |
|
Electrical Specifications |
|
Current Requirements |
|
Power Dissipation |
|
Read/Write |
7.80 Watts |
|
Idle |
5.30 Watts |
|
