All stock codes associated to this product
WD2500HHTZ
Workstation Hard Drives
WD VelociRaptor
Features:
Interface:
SATA 6 Gb/s
Capacity:
250 GB - 1 TB
Ultra fast.
Designed around a 10,000 RPM spin speed, these SATA 6 Gb/s drives include a 64 MB cache and deliver the ultimate performance for photo and video editing.
Ultra-cool operation.
Consumes less idle power and uses similar active power as the previous generation WD VelociRaptor, while offering higher capacity and performance.
Advanced Format (AF).
Technology adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities.
Rotary Acceleration Feed Forward (RAFF).
Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.
Rock-solid reliability.
With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive. In addition, these drives feature a 5-year limited warranty.
IcePack mounting frame.
The 2.5-inch hard drive is enclosed in a backplane-ready 3.5-inch mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.
NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
High capacity.
State-of-the-art technology delivers a balance of high performance and high capacity perfect for data-intensive workloads that require large amounts of storage such as video editing, 3D rendering and scientific modeling.
Pre-emptive Wear Leveling (PWL).
Ensures reliability for applications that perform a high incidence of read/write operations at the same physical location on the disk.
Environmentally conscious.
In addition to being RoHS compliant, this generation of WD VelociRaptor also provides a halogen-free design.
Ideal for:
High-performance computing, 3D rendering, digital content creation and editing, scientific computing and image management.
Specifications:

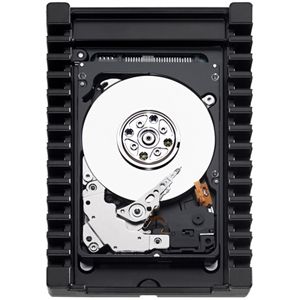

WD VelociRaptor 250 GB SATA Hard Drives ( WD2500HHTZ)
| Product Specifications |
|
| |
Interface |
SATA 6 Gb/s |
| |
| Performance Specifications |
|
| |
Rotational Speed |
10,000 RPM (nominal) |
| |
Buffer Size |
64 MB |
| |
Load/unload Cycles |
600,000 minimum |
| |
| Transfer Rates |
| |
Buffer To Host (Serial ATA) |
6 Gb/s (Max) |
| |
| Physical Specifications |
|
| |
Capacity |
250 GB |
| |
User Sectors Per Drive |
488,397,168 |
| |
| Physical Dimensions |
|
| English |
| |
Height |
1.028 Inches |
| |
Depth |
5.787 Inches |
| |
Width |
4.00 Inches |
| |
Weight |
1.10 Pounds |
| |
| Metric |
| |
Height |
26.1 mm |
| |
Depth |
147 mm |
| |
Width |
101.6 mm |
| |
Weight |
0.50 kg |
| |
| Environmental Specifications |
|
| Shock |
| |
Operating Shock (Read) |
65G, 2 ms |
| |
Non-operating Shock |
300G, 2 ms |
| |
| Acoustics |
| |
Idle Mode |
30 dBA (average) |
| |
Seek Mode 0 |
37 dBA (average) |
| |
| Temperature (English) |
| |
Operating |
41 F to 131 F |
| |
Non-operating |
-40 F to 158 F |
| |
| Temperature (Metric) |
| |
Operating |
5 C to 55 C |
| |
Non-operating |
-40 C to 70 C |
| |
| Electrical Specifications |
|
| Current Requirements |
| |
Power Dissipation |
| |
Read/Write |
5.10 Watts |
| |
Idle |
4.20 Watts |
| |
Standby |
1.10 Watts |
| |
Sleep |
1.10 Watts |
|
