All stock codes associated to this product
P8CWS, P8C-WS

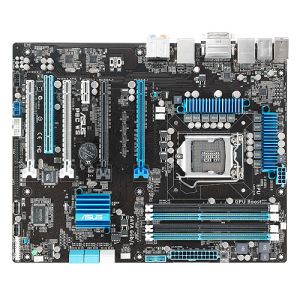

P8C WS
Optimized design delivers the best choice for workstation builds
- New Intel® workstation-specific C216 chipsets
- Independent Software Vendor (ISV) certification
- Diverse CPU and memory support - wide coverage for different needs
- Dual server-class Intel® Gigabit LAN lowers CPU utilization and improves throughput quality
- Complete USB 3.0 Integration: total four ports on front and rear panel
Workstation essentials for your professional studio
The ASUS Workstation Series is the ideal foundation for a powerful PC. It delivers awesome power, dependable performance and unmatched multiple I/O scalability for the most demanding tasks and future upgrades. The ASUS Workstation Series intelligently reduces operating noise and dissipates heat through advanced and environmentally-friendly methods to accommodate user needs. ASUS Workstation Series motherboards also bring you ultimate reliability and quality through our 24x24 initiative, which means 24-hour non-stop operation and a 24-month life cycle supply guarantee so you don´t need to change hardware so often. Instead, let the ASUS Workstation Series improve the quality of your work and life.
ASUS Workstation Exclusive Features
Ultimate Workstation Build
The P8C WS features Intel's Socket 1155 with the C216 chipset specially-designed for workstations. ISV application testing and certification with integrated graphics cores on E3-12x5 v2 processors are perfect for entry-level workstations and software such as Autodesk® AutoCAD 2013 and Inventor 2012. The P8C WS is your best choice for a DIY workstation build that rivals top-tier pre-built workstations.
Diverse CPU and Memory Types
Both Intel® E3-1200/12x5 v2 series server/workstation processors and 3rd generation Core™ i3 desktop processors are supported. Users can also choose DDR3 unbuffered non-ECC memory, widely available on the market, or more stable and reliable DDR3 unbuffered ECC memory. The P8C WS provides flexible CPU and memory options to meet diverse needs.
Built-in Dual Intel - Server-Class Gigabit LAN
For more reliable networking, the P8C WS features built-in dual Intel® server-class Gigabit LAN for lower CPU utilization and increased throughput. It achieves outstanding performance as well as better support for diverse operating systems. In addition to Microsoft Windows®, hardware LAN supports Linux, CenOS and Ubuntu. The onboard Intel® 82574L chipset features VMware certification for enhanced virtualization support.
Server-level Compatibility with RAID card and Lan card
The P8C WS provides complete compatibility with RAID and LAN cards.Users enjoy a wider selection of devices and higher reliability. As a workstation motherboard that puts an emphasis on system integration, offering the benefit of greater confidence and convenience.
ASUS Exclusive Features
Network iControl
Real-time Network Bandwidth Control
With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.
USB 3.0 Boost
Faster USB 3.0 Transmission with UASP
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.
UEFI BIOS (EZ Mode)
Flexible and easy BIOS interface
The brand new ASUS EFI BIOS offers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient mouse input. Users can easily navigate the new EFI BIOS with the same smoothness as their operating system. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system settings.
EPU
Energy efficiency all around
Tap into the world's first real-time PC power saving chip through a simple onboard switch or the AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
CPU, Chipset and Graphics features
Socket LGA1155 for Intel® 2nd/3rd Generation Core i3 and Xeon E3-1200/12x5 v2 Processors
The latest Intel® 2nd/3rd generation Core™ i3 and Xeon E3-1200/12x5 v2 series processors in the LGA1155 package are supported, with memory and PCI Express controllers integrated to enable 2-channel (4 DIMM) DDR3 memory and 20 PCI Express 2.0 lanes. This provides great graphics performance. Intel® 2nd/3rd generation Core™ i3 and Xeon® E3-1200/12x5 v2 series processors are among the most powerful and energy efficient CPUs in the world.
Intel® C216
The Intel® C216 Express is the latest single-chipset design, supporting the new socket LGA1155 Intel® Core™ i3 3rd generation processors and Intel® Xeon® E3-1200 v2 server processors. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the C216 comes with two SATA 6Gb/s and four SATA 3Gb/s ports for faster data retrieval, doubling the bandwidth of current bus systems. It also supports Intel's iGPU integrated graphics.

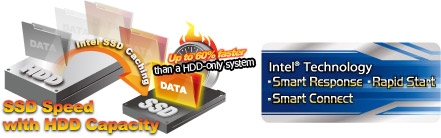

Intel® Smart Response Technology
SSD Speed with HDD Capacity
Intel® Smart Response Technology boosts overall system performance. It uses an installed fast SSD (min 18.6GB available capacity required) as a cache for frequently accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system.
Intel® Smart Connect Technology

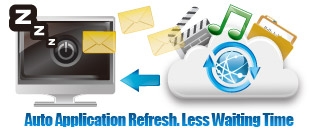

Auto Application Refresh. Less Waiting Time
Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience.
Intel® Rapid Start Technology
Instant Awake your PC from Sleep Mode
Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping the energy use low.
Quad-GPU CrossFireX!
Flexible multi-GPU - your weapon of choice!
The P8B WS brings you AMD quad CrossFireX graphics, featuring the powerful Intel C216 platform to optimize PCI Express allocation in multiple GPU configurations. Expect a brand new gaming style like you’ve never experienced before!
Future Transfer Technology
PCIe 3.0 Ready
PCI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them.
Specifications
CPU |
Intel Socket 1155 for 3rd/2nd Generation Core i3 Processors Intel Socket 1155 for Intel E3-1200/12x5 v2 processors Supports Intel 32 nm CPU Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 |
Chipset |
Intel C216 |
Memory |
4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). |
Graphic |
Integrated Graphics Processor Multi-VGA output support : DVI ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB |
Multi-GPU Support |
Supports AMD Quad-GPU CrossFireX Technology |
Expansion Slots |
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 2 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 1 x PCI |
Storage |
Intel C216 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *1 |
LAN |
Intel 82574L, 2 x Gigabit LAN Controller(s) Support Teaming Technology |
Audio |
Realtek ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel |
IEEE 1394 |
VIA 6308S controller 2 x IEEE 1394a port(s) |
USB Ports |
Intel C216 chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel C216 chipset : 10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board) |
Workstation Feature |
4 x PCIe x 16 slot(s) G.P. Diagnosis Card bundled Quick Gate: 2 x vertical USB 2.0 on board |
Special Features |
ASUS EPU : - EPU - EPU switch ASUS Power Design : - 8 +2 Phase Power Design GPU Boost with switch ASUS Exclusive Features : - MemOK! - AI Suite II - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash ASUS Q-Design : - ASUS Q-Connector |
Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-I 1 x IEEE 1394a 2 x LAN (RJ45) port(s) 2 x USB 3.0 6 x USB 2.0 1 x Coaxial S/PDIF out 1 x Optical S/PDIF out 6 x Audio jack(s) |
Internal I/O Ports |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x Vertical USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 1 x IEEE 1394a connector(s) 1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel connector(s) (1 x 20 -pin) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) |
BIOS |
64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3 |
Manageability |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
Operating System |
Windows Server 2008 R2 Enterprise Windows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows XP 32/64-bit |
Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm ) |
Note |
*1: Supports on Intel Core processor family with Windows 7 operating systems. |
