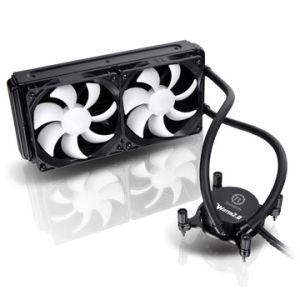

Water 2.0 Extreme
P/N: CLW0217
Features
- Top of the line liquid cooler, equipped with Power and Performance. No Refills Needed.
- 240mm Radiator Doubles the Cooling Surface
- Universal Socket Compatibility
Detailed Features
Top of the line liquid cooler, Equipped with Power and Performance.
No Refills Needed.
- High performance Copper base plate accelerates the heat conductivity.
- High reliability low profile pump provides quick liquid circulation lowering the temperature.
- Pre-filled coolant reduces the liquid replenishment hassle.
- Low evaporation tube decreases the loss of coolant effectively.
- The high-tech sealed circulation system prevents leaking issue.
240mm Radiator Doubles the Cooling Surface
- Powerful fan blows the heat of radiator out to the chassis to maximize cooling performance.
- PWM control function fan spins between 1200~2000rpm, can be adjusted on fan control software .
- Easy and simple installation methods.
- Fan control software (included), users can control, monitor and customize according to their desires.
Universal Socket Compatibility & Accessory Package
- Universal socket support:
- Intel: LGA2011, LGA1366, LGA1156, LGA1155,
- AMD: FM1, AM3+, AM3, AM2+, AM2
High Performance Waterblock
High Reliability Pump
High Efficiency Radiator
Powerful Cooling Fan
Universal Socket Compatible
Fan Control Software

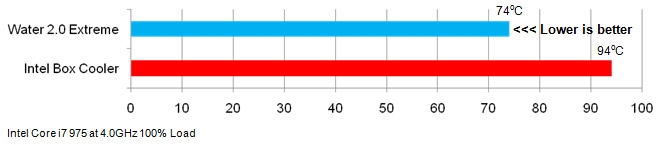

Performance
Water 2.0 Series Installation Manual - Extreme
Step One: Installing the Pump
Intel LGA 2011

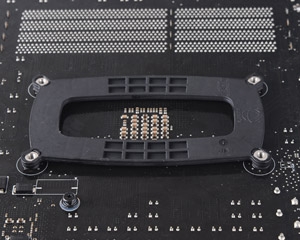

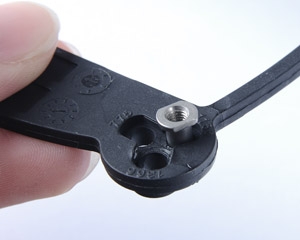

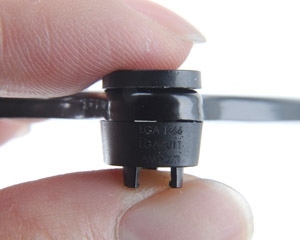

1. Snap the top and bottom plastic component together on to the 4 side of retention ring and placing the screws into the openings on the ring. (make sure to show 2011)
2. Attach retention ring to the pump and snap the retaining clip to the retention ring, locking the ring to the pump

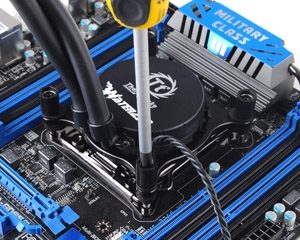

3. Placed the composed pump on to the CPU and use hand to screw until its tight, user may use screw driver for tightening.
LGA1366/1156/1155

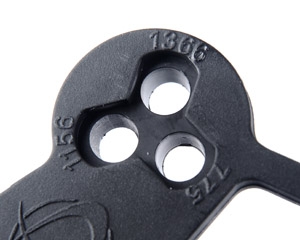

1. Please check the socket type match CPU and choose the right opening to place into it.
2. Stick Mylar on the back of the plate and place the four grommets on to the corresponding openings.
3. Stick the composed Back Plate on to the back of the motherboard

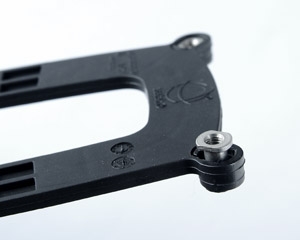

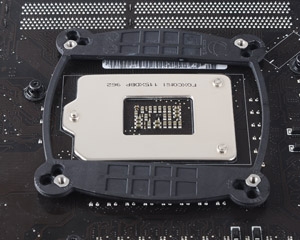

4. Snap the top and bottom plastic component together on to the 4 side of socket ring follow by placing the screws into the openings on the ring.

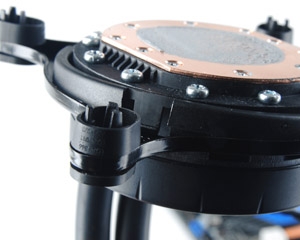

5. Attach retention ring to the pump and snap the retaining clip to the retention ring, locking the ring to the pump

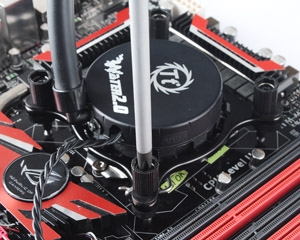

6. Placed the composed pump on to the CPU and use hand to screw until its tight, user may use screw driver for tightening.
AMD

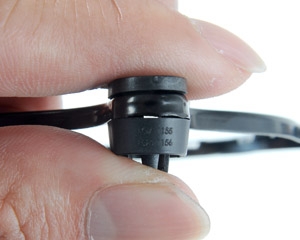

1. Stick Mylar on the back of the plate and place the four grommets on the corresponding openings. .
2. Snap the top and bottom plastic component together on to the 4 side of socket ring follow by placing the screws into the openings on the ring.
3. Stick the composed Back Plate on to the back of the motherboard
4. Attach retention ring to the pump and snap the retaining clip to the retention ring, locking the ring to the pump
5. Placed the composed pump on to the CPU and use hand to screw until its tight, user may use screw driver for tightening.
Step Two: Installing Radiator

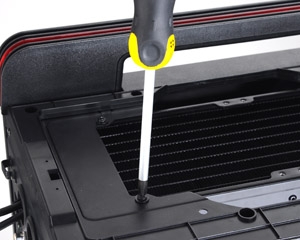

Install both fans on to the radiator first follow by mounting the composed unit on to the chassis. Make sure to check the airflow direction on both fan units.
Step Three: Completing Installation

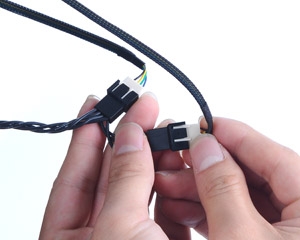

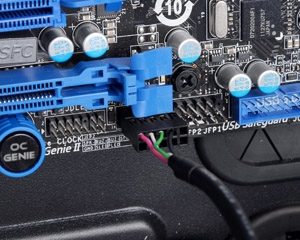

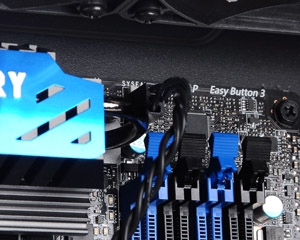

1. Connect the fans to pump fan output cable.
FAN Control
Water 2.0 Extreme Fan Control Operation

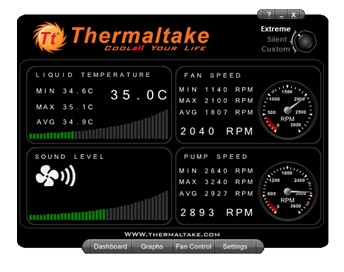

After Complete installing and launching Fan Control software, it will display the Dashboard as the main interface. At this window it will show the information such as Liquid Temperature, Sound Level, Fan Speed and Pump Speed.

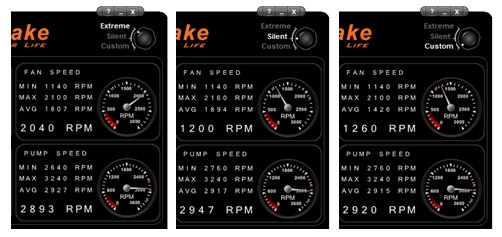

Users may change the performance setting on the top-right corner. Under these settings, users can choose (starting from the left)
Extreme Performance: The Fan on this unit will spins at the maximum speed (2000RPM) that delivers the maximum performance.
Silent Performance: The Fan on this until will spins at the lowest speed (1200RPM) that gives full quietness while maintains good performance.
Custom Performance: Users can customize their desire working temperature under the Fan Control Interface, the software will automatically adjust the fan speed correspond to the desire temperature

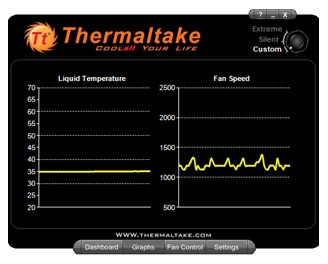

Users may choose Graph setting for different viewing type of performance statistic.

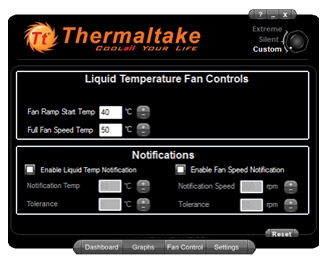

Users can set their desire Fan Ramp Start Temp and Full Fan Speed Temp to Customize their desire performances. Also may choose the notification for both temperature and the fan speed.

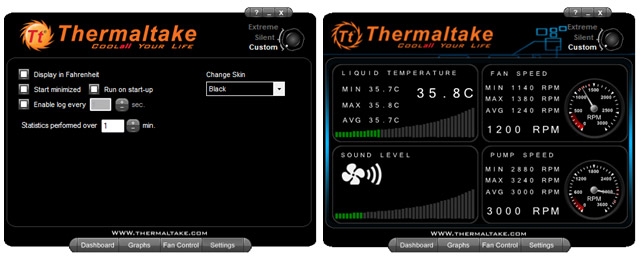

Users can choose the desire temperature display either in Celsius or Fahrenheit and run the program during the system start-up etc. In addition, users may change the color skin to Blue (Illustrated on the right)
Specifications:
| Water Block |
Material : Copper |
| Pump |
Motor speed : 2800+-150 RPM
Rated Voltage : 12V
Rated Current : 220mA |
| Fan |
Dimension : 120 x120 x 25mm
Speed : 1200~2000RPM
Noise Level : 27.36dBA(Max)
Rated Voltage : 12V
Rated Curre : 0.5A
Max. Air Flow : 81.32CFM
Connector : 4 Pin |
| Radiator |
Dimension : 270 x 120 x 38.3 mm
Material : Aluminum |
| Tube |
Length : 326 mm
Material : Rubber |
| Weight |
1,150g |
| Compatibility |
Intel:
LGA 2011
LGA 1366
Core i7
LGA 1155/1156
Core i7/Core i5/Corei3
Core 2 Extreme/Core 2 Quad/Core 2 Duo/Pentium D/Pentium 4/Pentium/ Celeron D/Celeron
AMD:
FM1
A-series
AM3+ / AM3
Phenom II/Athlon II/
Athlon/Sempron series
AM2+ / AM2
Phenom II/Phenom/
Athlon/Sempron series |
