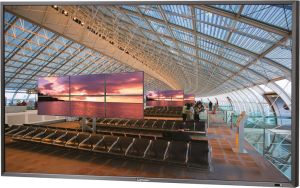

MDT551S 55" Slim Bezel Public Display
With superior connectivity, outstanding features and excellent picture quality, the Mitsubishi Electric MDT551S is an ideal commercial display for digital signage and control room applications.
Features
- Commercial Grade LCD panel
- Full High Definition Resolution
- High Contrast Ratio of 1300:1
- 700cd/m Brightness
- Rapid 10ms Response Time
- Wide 178 Viewing Angle
- 120Hz Frame Rate
- OPS Compatible Slot
- CAT-5 Transmitter/Receiver (Optional)
- SDI Card (Optional)
- Built-in 10W Speakers
- Tiling Capability with Frame Compensation
- Four Separate Screen Saving Functions
- Multiple input and output connectors, including HDMI and DisplayPort
- Power Save
- Power Scheduling
- Power-on Delay
- Built-in USB Hub
- Heat Status Monitor
- PiP, PoP and Side-by-Side
- Panel Lock Out
- VESA Compliant
- Optional stand and speakers available
- Three year limited warranty
Commercial Grade LCD panel - The MDT551S utilises a professional grade LCD panel which has been designed specifically for long hours of operation in commercial environments.
Full High Definition Resolution - With a native 1920 x 1080 pixel resolution, the MDT551S reproduces images from computer and video sources with excellent detail.
Contrast Ratio of 1300:1 - Ensures high quality colourreproduction in all displayed images.
700cd/m Brightness - Even in areas with high ambient light levels, images are clear and easy to view.
Rapid 10ms Response Time Enjoy clear fast moving pictures free of ghosting.
Wide Viewing Angle - The screen can be easily viewed from178 degree angles both horizontally & vertically.
120Hz Frame Rate - Extra frames are generated from the original 60-frame-per-second image based on motion estimation and interpolated to display 120 frames per second, for smoother image reproduction when viewing fast-moving content or using a scrolling function.
OPS Compatible Slot -You can mount an Intel OPS (Open Pluggable Specification) compliant extension module (such as a personal computer or 3G-SDI card) in the display, opening up a wider scope of applications the MDT551S can be used for.
CAT-5 Transmitter/Receiver (Optional) - Allows both video and control signal data to be transmitted over the same network cable, with possible cable lengths up to 150 metres. Up to 5 displays can be daisy-chained used the CAT-5 connection.(Transmitter Model No: DP-2CA5-T; Receiver Model No: DP-2CA5-R)
SDI Card (Optional) -An SDI card is available as an option, allowing compatibility with standard signal formats (3G-SDI, HD-SDI, SD-SDI) used in the broadcast industry. It also allows for the daisy-chain connection of up to 25 units with a maximum cable length of 350m*.
Built-in 10W Speakers - For simplified set up of audio when required. The display also includes additional connectors for external speakers, with an option to switch between the internal or external speakers. Optional Mitsubishi Speakers are available (Model No: SP-551S)
Tiling Capability with Frame Compensation - Up to 25 panels (5 wide x 5 high) can be combined to create a single large image (i.e., video wall) or other high-impact signage. A frame compensation function is incorporated to compensate the width of panel bezels so that images are displayed with the utmost accuracy.
Screen Saving Function Four separate options (Gamma, Cooling Fan, Brightness and Motion) - Provide increased protection against image retention and image persistence.
Multiple input and output connectors, including HDMI and DisplayPort - Installation flexibility is enhanced with a wide range of analogue and digital input connections included.
RJ-45 Network Connection - Allows for remote monitoring and configuration of the MDT551S, which can be useful when there are multiple displays being used over a large area, as they can each be given a unique IP address then controlled from a central location.
Power Save - Detects when an input signal is no longer active and will automatically switch the display to a Power Save state to help prolong the life of the LCD panel and increase energy savings.
Power Scheduling - Display during the hours you want, with flexible control over the various inputs. This works in conjunction with the Power Save option to further increase energy savings.
Power-on Delay - For installations employing several displays, users can set a power-on delay time between 2-50 seconds to prevent inrush current problems occurring and reduce overall electrical load requirements.
Built-in USB Hub - Connect multiple USB devices to a computer via the display's built in USB hub. One upstream and four self-powered downstream USB ports are included.
Heat Status Monitor- The inside temperature of the display can be checked using the OSD menu, and a front mounted LED flashes if overheating occurs.
PiP, PoP and Side-by-Side - Display two active inputs simultaneously. (only PC + AV)
Panel Lock Out - Prevents unauthorised tampering of panel controls.
VESA Compliant - Allows for use with VESA standard mounting arms or brackets.
Optional stand (ST-461V) and speakers (SP-551S) available
Three year limited warranty
Specification Overview
| Model |
MDT551S |
| Display Characteristics |
|
|
Display Type
|
55" Widescreen LCD Display
|
|
Viewable Area
|
54.6" (138.8 cm) diagonal
|
|
Native (Maximum) Resolution
|
1920 x1080 pixels
|
|
Aspect Ratio
|
16:9
|
|
Colour Depth
|
Approx. 1.06 billion colours
|
|
Contrast Ratio
|
1300:1 (typical)
|
|
Brightness
|
700 cd/m (typical)
|
|
Response Time
|
10 ms (Grey to Grey)
|
|
Viewing Angle (Left/Right, Up/Down)
|
89, 89 (typical)
|
|
Dot Pitch
|
0.630mm (H) x 0.630mm (V)
|
| Input Terminals |
|
|
PC
|
15 pin D-sub x 1; DVI-D x 1; BNC (R/G/B/H/V) x 1; HDMI x 1; DisplayPort x 1;
|
|
Video
|
Component (BNC) x 1; Composite (BNC) x 1; S-Video x 1
|
|
CAT-5 (optional)
|
Modular 8-pin x1providing RGB differential video and RS-485 control support
|
|
Audio
|
RCA L/R x 2; Stereo mini jack x 1
|
|
Control Input
|
9 pin Mini D-sub (RS232C) x 1; LAN (RJ-45) x 1
|
| Output Terminals |
|
|
PC/Video/CAT-5 (optional)
|
15 pin D-sub x 1; Composite(BNC) x 1; LAN Modular 8pin x 1
|
|
Audio
|
RCA L/R x 1, External Speaker connections (7W + 7W)
|
|
Control Output
|
9 pin Mini D-sub (RS232C)
|
| Other Terminals |
|
USB Hub
|
Self-powered hub: 2 upstream (OPS slot, external connection)/4 downstream/USB2.0 compliant |
Option Slot (OPS)
|
Both digital (OPS) and analog (CAT5) supported |
| Frequency Range |
|
|
Horizontal Frequency
|
15.625/15.743, 31.5KHz - 91.1KHz (Analogue/Digital)
|
|
Vertical Frequency
|
50/58 Hz - 85 Hz (Analogue/Digital)
|
| Video Compatibility |
|
|
Composite/Separate
|
NTSC, PAL, SECAM, 4.43NTSC, PAL-60
|
|
Composite/Digital
|
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
|
| Physical Characteristics |
|
|
Operating Voltage
|
Single phase, 50/60Hz, 100VAC to 240VAC 10%
|
|
Power Consumption
|
316W (293W without speakers); Less than 1W in power saving mode (less than 5W using CAT-5 connection)
|
|
Dimensions (W x H x D)
|
1251mm 721mm 127mm
|
Internal Speakers
|
10W+10W (THD less than 15%(typ.) @ 10W) |
|
Weight
|
Approx. 37.0kg
|
|
Operating Temperature
|
5C ~ 40C
|
|
Operating Air Humidity
|
20% - 80%
|
| Regulatory Certification |
|
|
Safety
|
AS/NZS 60950.1:2001
|
|
EMI/EMC
|
AS/NZS CISPR22:2004 (C-Tick)
|
| Accessories |
|
|
Supplied
|
Power Cord, VGA Cable, User Manual, Remote Control, Batteries x 2, Cable Clampers, Screws for Clamper,
|
| Optional |
Stand (ST-461V),
Speakers (SP-551S)
CAT-5 Transmitter (DP-2CA5-T)
CAT-5 Receiver (DP-2CA5-R)
SDI Box (DP-1SDI-3G)
|
