All stock codes associated to this product
B75_PRO3M, B75_PRO3-M, MBDASRB7501B
B75 Pro3-M
A New Star B75 Motherboard! Ideal For Use in Your Business PC
- 100% All Solid Capacitor Design
- Supports Dual Channel DDR3 2200(OC)
- 1 x PCIe 3.0 x16 Slot, Supports AMD Quad CrossFireX, CrossFireX
- PCIE Gigabit LAN
- Supports Intel HD Graphics with Built-in Visuals
- Multi VGA Output options : D-Sub, DVI-D, HDMI
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio
- Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, On/Off Play, Dehumidifier, UEFI System Browser
- Supports Intel Smart Connect, Intel Rapid Start, Intel Small Business Advantage
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Features
XFast 555 Technology : XFast RAM / XFast LAN / XFast USB
Fully Optimize Memory Usage
5X Faster for
Photoshop ExecutionXFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.
Faster Internet Access
Lower Latency In Game
XFast LAN can lower latency in the game after setting online game priority higher.
Boosts up your USB speed
USB Performance
Comparison
ATTO Disk Benchmark 4K Read
Intel® Small Business Advantage
Intel® SBA with Next Generation Intel® Core® is a unique, out-of-the-box solution that delivers:
An easy-to-use interface
Relevant security and productivity applications
Free and easy customization
SECURITY
Software Monitor
Software Monitor helps keep critical security software running by monitoring it at the hardware level and alerting the business if there has been an attack.
Data Backup & Restore
Data Backup & Restore provides reliable after-hours backup of critical data using the local maintenance timer to remotely power on the PC.
USB Blocker
USB Blocker lets businesses control access to their infrastructure, preventing unauthorized USB devices or file imports or exports on company PCs.
PRODUCTIVITY
PC Health Center
PC Health Center can schedule and perform PC maintenance tasks after hours so as not to interrupt employees' work. It works even if the computer is powered down, as long as it is plugged in.
Energy Saver
With Energy Saver, businesses can save energy by scheduling PCs to power-down at the end of the day and turn on before the work day begins?ready for employees as they arrive in the morning.
Intel Smart Connect Technology
Intel® Smart Connect Technology keeps content always up-to-date! It means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. Smart Connect will periodically wake up the PC while in a sleep state and check updates for things like email, Twitter, Facebook, etc. No more waiting for the latest world news or friends’ updates to be delivered—just enable this function and you’re up-to-date and ready to go.
Intel® Rapid Start Technology
Intel® Rapid Start Technology gets your device up and running faster from even the deepest sleep, saving time and battery life. It quickly returns where you left off with a PC that goes from deep-sleep to full awake in a flash. The ultra-responsive capability gives your device the power to quickly resume to Windows® 7 OS within few seconds and ensures ultra-low power consumption when on standby. With Intel® Rapid Start Technology, users can jump right back into everything they were doing!

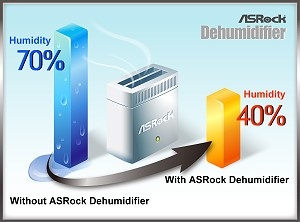

Dehumidifier
Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
ASRock OMG (Online Management Guard)
Fast, Easy and Free – ASRock OMG technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users. Normally, ISPs (Internet Service Provider) will charge for internet curfew service. The service controls “all” the PCs connected at home through network remotely but all the PCs in that network will be restricted to access the internet at pre-setup times. However, ASRock OMG is a free tool for controlling internet access of each single PC. Parents can easily control internet access through BIOS setup to protect their kids from using Internet at inappropriate time, and meanwhile, enjoy their own internet space.
Internet Flash
Internet Flash searches for available UEFI firmware updates from ASRock servers. System can auto-detect the latest UEFI from our servers and flash them within UEFI setup without entering Windows® OS.
Next-Gen PCI-E 3.0 Support
The ASRock motherboards support the Next-Gen PCI-E 3.0! PCI Express 3.0 can maximize the bandwidth for the next-gen PCI Express 3.0 VGA cards, provide ultimate graphics performance.
Get PCI-E 3.0 Benefits
Higher bit rate - 8.0GT/s
Higher bandwidth per lane - 1GB/s
Higher efficiency - 98.5% encoding efficiency
100% backward compatible with previous PCI-E 2.0 / 1.0 standard
PCI-E architecture |
Raw bit rate |
Bandwidth per lane per direction |
Encoding Efficiency |
PCI-E 2.0 |
5.0GT/s |
500MB/s |
80% |
PCI-E 3.0 |
8.0GT/s |
1GB/s |
98.5% |
Intel® HD Graphics Built-in Visuals
Intel® HD Graphics, simplifies your designs by eliminating additional discrete graphics hardware, while integrating stunning visuals and performance for immersive gaming.
THX TruStudio
THX TruStudio is specially designed to bring the same great audio experience found in live performances, films, and recording studios to the PC.
Graphical UEFI – The Revolutionary BIOS Interface
Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience – UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling – Besides keyboard control, you can freely use mouse to select your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD size.
UEFI System Browser
UEFI system browser is a useful tool included in graphical UEFI. It can detect the devices and configurations that users are currently using in their PC. With the UEFI system browser, you can easily examine the current system configuration in UEFI setup.
On/Off Play Technology
Even when the system is powered off (in ACPI S5 mode), On/Off Play Technology still allows users to enjoy the great audio experience from the portable audio devices through the PC speaker.
Free Bundle - Cyberlink MediaEspresso 6.5 Trial
CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
MAGIX Multimedia Suite
The ultimate solutions to enhance your media experience. From music management, music creation, video editing to photo management. Simply do more with your media than you ever thought possible.
mufin playerThe next generation music player plays all standard audio formats, manages large music collections, helps you discover music, offers a free online hard drive and more.
Music Maker SilverThe easiest way to arrange, remix, record and create your own music. Develop your musical style now - without any prior skills.
Video easy SEWith this program you can easily edit your movies, add transitions, text and background music, and even quickly enhance image and sound quality.
Photo Manager 10Put an end to your digital photo chaos and organize your photo collection with ease. The program is fully equipped for fast import, photo and video clip management, photo editing and presentation.
Specifications
General |
CPU |
- Supports 3rd and 2nd Generation Intel Core i7 / i5 / i3 in LGA1155 Package - 4 + 1 Power Phase Design - Supports Intel Turbo Boost 2.0 Technology - Supports Hyper-Threading Technology |
Chipset |
- Intel B75 - Supports Intel Small Business Advantage - Supports Intel Rapid Start Technology and Smart Connect Technology with Intel Ivy Bridge CPU
*Intel Rapid Start Technology and Smart Connect Technology are only supported under Windows 7 OS or later versions.
|
Memory |
- Dual Channel DDR3 memory technology - 4 x DDR3 DIMM slots - Supports DDR3 2200(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
**DDR3 1600 with Intel Ivy Bridge CPU, DDR3 1333 with Intel Sandy Bridge CPU.
|
BIOS |
- 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment |
Audio, Video and Networking |
Graphics |
- Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video 2.0, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 2500/4000 - Pixel Shader 5.0, DirectX 11 with Intel Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel Sandy Bridge CPU. - Max. shared memory 1760MB - Multi VGA Output options: D-Sub, DVI-D and HDMI - Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DVI with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) - Supports HDCP function with DVI and HDMI ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista and Windows 7.
***Intel InTru 3D is only supported under Windows 7 and Windows 7 x64.
|
Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support - Supports THX TruStudio |
LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
Expansion / Connectivity |
Slots |
- 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode) - 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode) - 2 x PCI slots - Supports AMD Quad CrossFireX and CrossFireX
*PCIe Gen3 is supported on 3rd Generation of Intel Core i5 and Core i7 CPUs.
|
Storage |
- 1 x SATA3 6.0 Gb/s connector by Intel B75, supports NCQ, AHCI and Hot Plug functions - 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions |
USB 3.0 |
- 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s - 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s |
Connector |
- 5 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions - 3 x SATA3 6.0 Gb/s connectors - 1 x IR header - 1 x CIR header - 1 x Print port header - 1 x COM port header - 1 x HDMI_SPDIF header - 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) - 1 x Chassis Fan connectors (1 x 4-pin) - 1 x Power Fan connector (3-pin) - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) - 1 x USB 3.0 header (supports 2 USB 3.0 ports) |
Rear Panel I/O |
I/O Panel - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 4 x Ready-to-Use USB 2.0 Ports - 2 x Ready-to-Use USB 3.0 Ports - 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
Other Features / Miscellaneous |
Unique Feature |
- ASRock Extreme Tuning Utility (AXTU) - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock SmartView - ASRock XFast USB - ASRock XFast LAN - ASRock XFast RAM - ASRock Crashless BIOS - ASRock On/Off Play Technology - ASRock OMG (Online Management Guard) - ASRock Internet Flash - ASRock Dehumidifier Function - Hybrid Booster: - ASRock U-COP - Boot Failure Guard (B.F.G.) - Combo Cooler Option (C.C.O.) - Good Night LED |
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM |
Accessories |
- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
Hardware Monitor |
- CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Chassis Fan Multi-Speed Control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
Form Factor |
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - All Solid Capacitor design |
OS |
- Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant |
Certifications |
- FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) |
