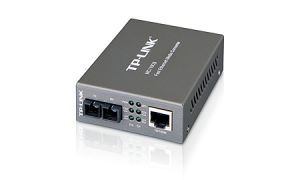

10/100Mbps Single-Mode Media Converter
MC110CS
Highlights:
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
- Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
- Extends fiber distance up to 20km
Overview
What This Product Does
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Features:
- Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
- Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
- Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
- Extend fiber distance up to 20km
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
Specifications:
| MEDIA CONVERTER & MODULE |
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function |
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 20km
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely |
| Ports |
1 100M SC port
1 100M RJ45 port (Auto MDI/MDIX) |
| Network Media 10BASE-T |
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m) |
| Network Media 100BASE-T |
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m) |
| Network Media 100BASE-FX |
Single-mode Fiber |
| LED Indicators |
PWR, FDX/Col, Link/Act, SPD |
| Dimensions (W*D*H) |
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply |
External power supply |
| Safety & Emission |
FCC, CE |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
