Vantec 550W Voltra Series - ATX 12V v2.3, EPS 12V, 140mm Fan, Flat Modular Cables, 80 PLUS Bronze Certified, SLI Support
2 x 3 SATA, 2x PCI-E 8-Pin, 2x PCI-E 6-Pin

No Longer Available

Part Number:

201317

(?) Brand:

Vantec Web Site

Manuf No:

VAN-VL550B
VANVL550B

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Date Added:

2/8/2012

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

VANVL550B, VAN-VL550B

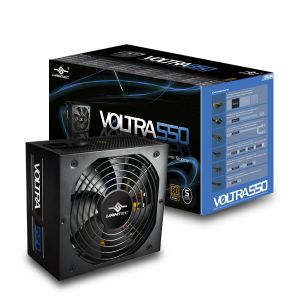

VOLTRA 550 Watt Power Supply

High-Performance ATX Modular Power Supply

The VOLTRA Premium Series power supply delivers clean, stable, and continuous power, making it the best choice when you need an affordable, premium quality, and energy efficient power supply for your high-end gaming PC or workstation.

Features:

High Efficiency over 82% at 100% load
Comply with ATX 12V 2.3 & EPS 12V
Intelligent 140mm Fan
Japanesemade capacitors
Modular Design
Higher Reliability (MTBF > 100,000 hours)
Flat Modular Cables
SLI supported
Class Leading Single 12V Rail
Full Range Active PFC
Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection
5 Year Warranty

Best Blend of Performance and Features

The VOLTRA Premium Series High-Performance Semi-Modular power supply is designed to balance affordability with key features including high-efficiency, continuous rated power output, unyielding voltage parameter, and low ripple and noise, to deliver a first-class power supply that meets the needs of your performance PC.

Modular Design

With the semi-modular design of the VOLTRA Premium series, you can build your performance rig with the cables you need. This design allows you to maintain a tangle free chassis and open airflow within your system which is the key to long term stability and longevity.

High Efficiency

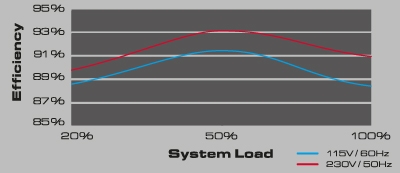

The circuitry of the VOLTRA Premium Series achieves 80Plus Bronze certification in its DC-to-DC power conversion guaranteed to be operating at 82% or higher efficiency even at 100% load.

Specifications:

Model	VAN-VL550B
AC Input Rating	100-240VAC
Input Current	8-4A Max
Frequency	47Hz - 63Hz
DC Output	Maximum Load	Maximum Output
+3.3V	25A	130W
+5V	25A	130W
+12V	45A	550W
-12V	0.8A	9.6W
+5V	3A	15W
Total Power	550W

Connectors:

Model	VAN-VL650B / VAN-VL550B
Cable & Connector	Qty (Cbl*Connector)	Length(mm)	Cable Type
ATX 20/24-Pin Compatible	1*1	600
EPS/ATX 12V 4/8-Pin Compatible	1*1	600
PCI-e 6/8-Pin Connector	2*1	600
4-Pin Peripheral Connector	2*2	600+150
SATA Connector	2*3	600+150*2
4-Pin Peripheral & Floppy Connector	1	150

System Requirements:

ATX Form Factor Chassis

Package Contents:

VOLTRA PSU
User's manual
Screws
Power Cord

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Vantec) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
