Samsung 820DX-3 SyncMaster Commercial LCD

The SyncMaster DX-3 series, available in 101.6 cm (40 ") 116.84 cm (46") 178.8 cm (70 ") and 208.28 cm (82") convinces with very high reliability and good image quality. The high quality Full HD DID panel is ideal for long-term operation and a representative view of your content at POS and POI. Shine compared to its predecessors, the DX (n) -2 Series, the successor of up to 25% reduced power consumption and a significant reduction in weight of up to 32% (depending on model). At the same time optimizes the connection box and now including a display port connection. There were further improvements in the field of remote control, which now in addition to RS-232 via RJ-45 is possible. In addition, a significantly more extensive on / off timer has been implemented and the DVI loop out connection can be interchanged (daisy chain) now has 100 units with full HD resolution be connected without additional expensive video splitter hardware or need a signal amplifier. Due to the existing PC-module slot slot, the models for an integrated PC based on Windows Embedded Standard 2009, or Windows 7 Embedded Standard will be extended (depending on model), which enhances the properties of digital signage.



Introducing a monitor, which the ravages of time can not wear much. This Samsung LFD is particularly resistant. Thanks to an elaborate design of the encapsulated DID panel this much less sensitive to dust as fine as a comparable TV panel. Thus, even in difficult environments in the long term picture content displayed optimally.



Best picture and detailed sound - that will make your multimedia presentation really impressive. The high-quality built-in speakers deliver great sound. You save yourself a bulky and expensive external sound system, and not least a lot of space.

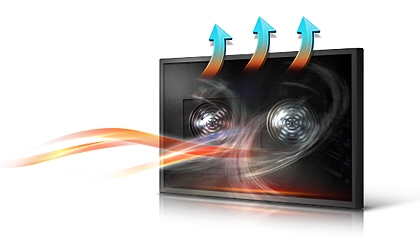

If things heat up, the backlight remains our LFD monitors still pleasantly cool - thanks to a whisper and automatically switched-air cooling, which always ensures cool operation, reliability and long life. With the easy-to-use on-screen display, you have additional control options for fan control.





With the high quality DID panel your visual message is always the focus. The high brightness and excellent contrast ratio, this monitor series guarantee a crystal-clear and impressive presentation - even under adverse conditions and in public places. In fact, the intrinsic brightness at this display an average of 1 ½ times as large as a display for TV purposes. This guarantee low operating temperatures of the LFD, a long-standing and reliable operation.





The LFD monitors from Samsung can be rotated by 90 degrees and can display images in an easy way to portrait mode. The pivot function gives you maximum flexibility for presentations of all kinds





With the ability PBP (Picture by Picture = Picture by Picture) and PIP (Picture in Picture = Picture in Picture), images can be displayed simultaneously from two different sources - a way to improve in many cases, the impression of a presentation again.

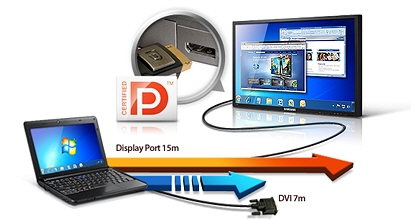

Imagine a professional digital monitoring system together without costly investments, such as signal splitter or other accessories. Samsung makes it easy to create the display port, an interface that provides enhanced connectivity options. If you already have a long HDMI or DVI cable, so you can do this by using a simple, optional adapter for DVI - continue to use> DP -> DP or HDMI. The new DP-connector allows the use of long cables without additional hardware. This is the simple and inexpensive way you can achieve impressive display ideas.







Whether screening or product presentation - reflections and glare are not required, but crystal clear, powerful images that reflect exactly what you imagined. This Samsung LFD creates even under difficult lighting conditions. Reflections are eliminated and your visual messages are always clear and the audience.

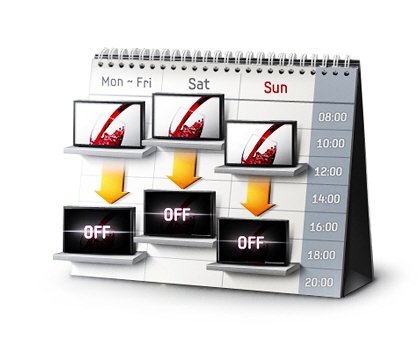

Do you want to make sure that your big screen does not consume unnecessary energy? For this offer Samsung LFDS a practical tool: the scheduler. It allows you to set operating hours, rest periods, days of the week, volume and signal sources in advance - and the intuitive on-screen display, you have three such plans at a glance.

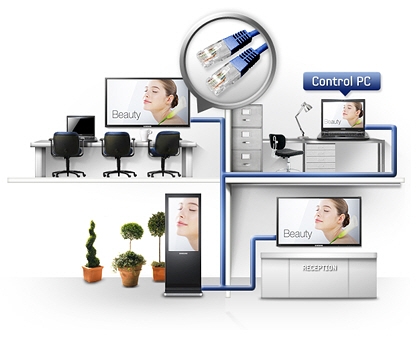

Especially with larger display installations, eg in distributed corporate buildings on different floors, a central and easy remote maintenance is of great importance. This Samsung Large Format Display supports remote control and monitoring via conventional RS-232C interface, but also via RJ-45 connector, which is especially for larger distances between control and PC to monitor displays an advantage.







In the new Samsung LFDS may in case of a necessary firmware updates this be performed brilliantly simple way. The only thing that is needed to transfer the new firmware file is a PC or NotePC with DP, HDMI or DVI connection. No special hardware, no special cable - a simple direct connection is sufficient.

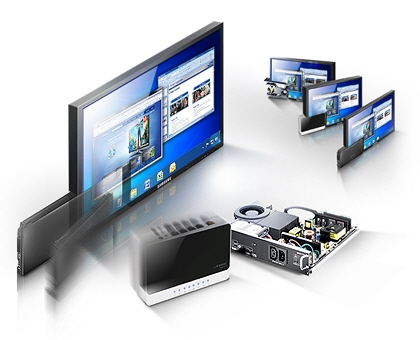

Thanks to the insertion shaft for the PC module (SBB-A), your large format display also subsequently be extended to an integrated PC. The slot allows for easy installation in minutes.



Product Name	SyncMaster 820DX-3
Model	LH82CSBPLBC/EN
EAN	8806071732220
MSRP	39,499



Panel

LCD Technology	A-si TFT / DID
Backlight Technology	CCFL
Screen Size	208.8 cm (82 inches)
Pixel Pitch	0.941 mm
Brightness value	600 cd / m
Contrast (static)	2.000:1
Contrast (dynamic)	2.500:1
Reaction time	8 ms (w / w)
Viewing Angle (H / V)	178 / 178



Horizontal	30-81 kHz
Vertical	56 - 85 Hz



Native Resolution	1,920 x 1,080 pixels



Number of colors	16.7 million



Signal Input	Analog, digital
Signal connections	DP, DVI-D, 2x HDMI, 15pin D-Sub, Composite Video



DDC	DDC 2B



DPMS Power Consumption (typ)	<1 W
Power Consumption (typ)	950 W
Energy Star 5.0	Yes
Power Supply	Internal



Digital	Multiple views on OSD



Color	Black



Wall Mount	VESA standard 1,400 x 800 mm
Mac compatibility	Yes
Frame width (lateral)	55 mm



EMI	CE
Pixelfehlerklasse	Class 2 according to ISO 9241-307



RS-232C Loop	Yes
Brightness sensor	Yes
Audio output	Yes, 3.5 mm jack
Audio Input	Yes, 3.5 mm jack to RCA (L / R)
PiP (Picture in Picture) / PBP (Picture by Picture)	Yes, Yes
MDC using RS-232C	Yes
MDC via RJ-45	Yes
Extensive on / off timer	Yes, with additional holiday / vacation option
Built-in speakers	Yes, 15W x 2ch



Remote Control	Yes
Batteries	Yes
Signal cable	Yes, D-Sub
Power cord	Yes
Table stands	Yes
CD	Yes, software / driver / guide
Quick Setup Guide (QSG),	Yes, multi-lingual



Wall mount (horizontal)	WMN7070D/EN
Wall bracket (vertical)	VMN7070D/EN
Set Back Box (SBB-A)	SBB-D16AX2/EN and SBB-Q32AX4/EN  SBB-D32AV2/EN and SBB-Q32AV4/EN

Dimensions without stand (W x H x D)	1915 x 1126 x 139 mm
Weight without packaging	120 kg
Weight with packaging	160 kg
Dimension (W x H x D)	2095 x 1488 x 618 mm



H-Scanning Frequency	30-81 KHz
Maximum pixel frequency	148.5 MHz
V-Scanning Frequency	56 - 85 Hz



Diagonal Size	82 "
Type	S-PVA (DID)
Resolution	1,920 x 1,080
Pixel Pitch (mm)	0.9405 mm (H) x 0.9405 mm (V)
Active Display Area	1805.76 mm (H) x 1015.74 mm (V)
Brightness	600 cd /
Contrast Ratio (dynamic)	10,000:1
Viewing Angle (Horizontal / Vertical)	178/178 (CR> 10)
Response Time (G-to-G)	8 ms
Display Color	16.7 million
Color gamut	72%
Contrast Ratio	2,000:1



Input	RGB	Analog D-SUB, DVI-D, DisplayPort
	Video	CVBS, HDMI1, HDMI2, Component (D-sub 15 pin)
	Audio	RCA (L / R), Stereo Mini Jack
Output	RGB	N / A
	Video	N / A
	Audio	Stereo Mini Jack
	Power Out	5 V
External Control	RJ45, RS-232C (In / Out)
External Sensor	N / A



Dimension	Set Dimension (WxHxD)	1,915.0 x 1,230.0 x 139.0 mm (500mm Stand Included)
	Package Dimension (WxHxD)	2.095 x 1.488 x 618 mm
Weight	Set Weight	140 kg
	Package Weight	160 kg
VESA Mount	1.400 x 800 mm
Protection Glass	N / A
Stand Type	Footstand
Media Player Option Type	Internal



Operating Temperature	0-40
Humidity	10 - 80%



Key	Professional Heavy Usage
Special	Lamp Error Detection, Anti retention, temperature sensor, RS232C/RJ45 MDC Built in speakers (15W + 15W), Plug and Play (DDC2B), PIP / PBP, Pivot Display, Button Lock, Smart Scheduling, Smart F / W update



Energy Efficiency Class	N / A
Power supply	AC 100 - 240 VAC (+ / - 10%), 50/60 Hz
Power Consumption	Off Mode	less than 1 W
	On Fashion	1.114 W (max) / 950 W (type)
	Sleep Mode	less than 1 W
Type	Internal



Included	Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power cord, Remote controller, Batteries
optional	Mount	WMN7070D, VMN7070D
	Specialty	N / A
	Stand	In BOX



CPU	N / A
N / B	N / A
S / B	N / A
GPU	N / A
FDM / HDD	N / A
Memory	N / A
Ethernet	N / A
Connectivity	USB	N / A
	Output	N / A
	Others	N / A



EMC	FCC (U.S.) FCC Part 15, Subpart B Class ACE (Europe), EN55022, EN55024VCCI (Japan) V-3 (CISPR22), KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22), C-Tick (Australia): AS/NZS3548 (CISPR22), CCC (China): GB 9254-2008, GB 17625.1-2003
Environment	N / A
Safety	UL (USA): UL 60950-1CSA (Canada): CSA C22.2. 60950-1 TUV (Germany): EN60950-1NEMKO (Norway): EN60950-1 KC (Korea): K60950-1 CCC (China): GB4943-2001PSB (Singapore): IEC60950-1GOST (Russia): IEC60950-1, EN55022SIQ (Slovenia): IEC60950-1, EN55022PCBC (Poland): IEC60590-1, EN55022NOM (Mexico): NOM-019-SCFI-1993IRAM (Argentina): IEC60950-1SASO (Saudi Arabia): IEC60950-1





Service during the warranty period	If a defect occurs, please contact our on-site service (on-site service) are available. To take advantage of this service, please contact our customer service hotline.
Service outside the warranty period	If a defect occurs, please contact our service hotline for more information.
Warranty	3 years
