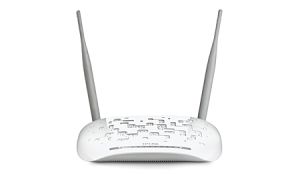

TP-Link TD-W8968 ADSL2+ Modem Router - 802.11n/b/g, 4-Port

TD-W8968



Highlights:

All-in-One Device: ADSL Modem, NAT Router, Switch and Wireless N Access Point
2.4GHz, IEEE802.11b/g/n, up to 300Mbps data transfer rates
USB Port for Storage Sharing, Printer Sharing, FTP Server and Media Server
Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
IP QoS features for improved bandwidth control across the network



TP-LINK’s TD-W8968 300Mbps Wireless N USB ADSL2+ Modem Router is an incredibly robust all-in-one device allowing users to access high-speed internet connection via ADSL or Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at 300Mbps wireless 802.11n speeds. With its multi-function USB port, users can share printers, files and play media across the local network or access files from attached USB storage across the internet using the TD-W8968’s FTP server function.

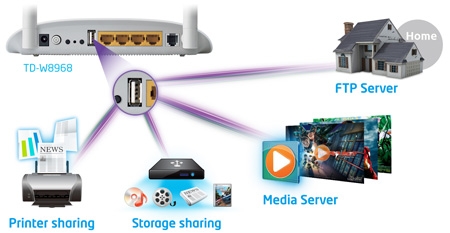

Using the TD-W8968’s multi-functional USB 2.0 port, users can share printers, files or play media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.

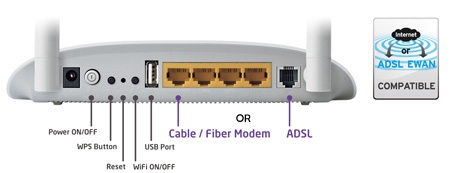

The TD-W8968 supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.





The TD-W8968 does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, switch and 300Mbps wireless access point, this device eliminates the need to purchase multiple devices to access and share a high-speed wireless Internet connection.



With 300Mbps 802.11n wireless and 4 Megabit LAN ports, the TD-W8968 is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.

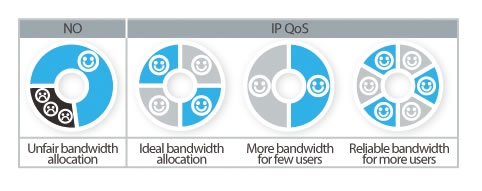

IP QoS allows network administrators to allot a specific amount of available bandwidth to each network connected device simply by identifying it by its IP address, ensuring that those devices with critical tasks always have enough bandwidth and preventing any one device from hoarding bandwidth from the rest of the users on the network.





High speed DSL modem, NAT router and wireless access point in one device providing a one-stop networking solution
Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
USB 2.0 port supports Storage Sharing (Samba or FTP), Media Server, Print Server and multi accounts
Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
IP based Bandwidth Control makes it easier for you to manage the bandwidth of devices that connected to the modem router
Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
Easy one-touch WPA wireless security encryption with the WPS button
Easy Setup Assistant with multi-language support provides a quick & hassle free installation
SPI and NAT firewall protects end-user devices from potential attacks from the Internet
WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
Interface Grouping binds specific LAN ports with PVCs for an enjoyable IPTV experience
Annex M doubles the upstream data rate
Auto-reconnect keeps user online indefinitely
Backward compatible with 802.11b/g products





HARDWARE FEATURES
Interface	4 10/100Mbps RJ45 Ports 1 RJ11 Port 1 USB 2.0 Port
Button	1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Button 1 RESET Button
External Power Supply	12VDC/1A
Dimensions (W X D X H)	7.7*5.1*1.4 in. (19513036mm)
IEEE Standards	IEEE 802.3, 802.3u
ADSL Standards	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
Antenna Type	Omni directional, Detachable, Reverse SMA
Antenna Gain	2 x 5dBi

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b, 802.11g, 802.11n
Frequency	2.400-2.4835GHz
Transmit Power	<20dBm(EIRP)
Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES
Quality of Service	Bandwidth Control
Port Forwarding	Virtual server, DMZ, ACL(Access Control List)
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols	ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs
Advanced Features	Ethernet WAN (EWAN) Guest Network, Wireless Schedule Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP
Security	NAT Firewall, SPI Firewall, MAC / IP / Packet / URL Filtering
USB Sharing	Storage Sharing FTP Server Media Server Print Server
Management	Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TD-W8968 External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
