All stock codes associated to this product
100083000G, VTFD8131, VT-FD8131

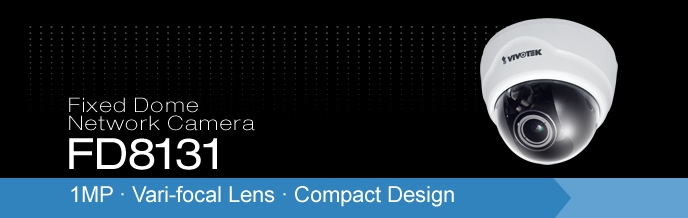

1MP Vari-focal Lens Compact Design Fixed Dome Network Camera FD8131
Overview
VIVOTEK FD8131 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish housing. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need look no further for an all-in-one camera capable of capturing high quality, high resolution video.
This camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms.
With the vari-focal lens, the FD8131 provides users the freedom to adjust the field of view in accordance with their application. Also included are a number of advanced features which are standard for VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot, 802.3af compliant PoE, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8131 provides the best value in IP surveillance for indoor applications such as offices, banks, and retail stores.
Features
- 1-megapixel CMOS Sensor
- 3.0 ~ 12 mm Vari-focal Lens
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC Card Slot for On-board Storage
- 3-axis Mechanical Design for Ceiling/Wall Mount Installation
- Easy and Flexible Installation
- Compact, Elegant Design
Specifications:
- System Information
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- RAM
- Camera Features
- Image sensor
- Maximum Resolution
- Lens Type
- Focal Length
- Aperture
- F 1.4 ( wide ), F 2.0 ( tele )
- Field of View
- 48.06 ~ 17.06 (horizontal)
- 28.97 ~ 10.76 (vertical)
- 55.62 ~ 19.76 (diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- Minimum Illumination
- Pan / Tilt / Zoom
- ePTZ
- 16x digital zoom ( 4x on IE plug-in ,4x built-in )
- On-board Storage
- Video
- Compression
- Maximum Frame Rate
- H.264: 30 fps at 1280x800
- MPEG-4: 30 fps at 1280x800
- MJPEG: 30 fps at 1280x800
- Maximum Streams
- S/N Ratio
- Dynamic Range
- Video Streaming
- Adjustable resolution, quality and bitrate
- Configurable video cropping for bandwidth saving
- Image Settings
- Adjustable image size, quality, and bit rate
- Time stamp and text caption overlay
- Flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
- BLC (Backlight compensation)
- Supports privacy masks
- Scheduled profile settings
- Network
- Users
- Live viewing for up to10 clients
- Protocols
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
- Protocols
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
- ONVIF
- Intelligent Video
- Video Motion Detection
- Triple-window video motion detection
- Video Motion Detection
- y-window video motion detection
- Alarm and Event
- Alarm Triggers
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
- Alarm Events
- Event notification using HTTP, SMTP, FTP, NAS server
- File upload via HTTP, SMTP, FTP and NAS server
- General
- Connectors
- RJ-45 cable connector for Network/PoE connection
- DC 12V Power input
- Digital input * 1
- MicroSD/SDHC card slot
- LED Indicator
- System power and status indicator
- Power input
- 12V DC
- 802.3af Power-over-Ethernet (Class 1)
- Power consumption
- Dimensions
- Weight
- Safety Certifications
- CEC-TickFCC ( Class A )LVDVCCI
- Working Temperature
- Operating Temperature: -10C ~ 50C ( 14F ~ 122F )
- Warranty
- System Requirements
- Operating System
- Microsoft Windows 7 / Vista / XP / 2000
- Browser
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7.x or 8.x
- Other Players
- VLC:1.1.11 or above
- QuickTime:7 or above
