All stock codes associated to this product
HD7850DC22GD5V2, HD7850DC2-2GD5-V2
HD7850-DC2-2GD5-V2
Perfect balance of 28nm power with cool and quiet performance
- DirectCU thermal utilizes direct-contact GPU heatpipes for 20% cooler and vastly quieter performance than reference.
- Acclaimed DIGI+ VRM with Super Alloy Power technology delivers precise digital power and enhanced durability for stable overclocking
- GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface.
Deploy the Cool. Reign in Silence.
ASUS Exclusive Innovation

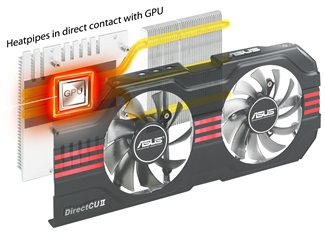

DirectCU II
20% cooler with exclusive DirectCU II thermal solution
Super Alloy Power
Acclaimed DIGI+ VRM with Super Alloy Power technology delivers precise digital power and enhanced durability for stable overclocking.
Real-time and intuitive graphics tuning
Detailed specs and actual card status with GPU-Z
Monitoring widget provides real-time and detailed multi-parameter info
2D/ 3D switcher can lock the card in 3D mode for higher benchmarks
Automatically check and update drivers and BIOS versions
Sync GPU clocks and voltages for easier overclocking
Graphics GPU Features
Powered by AMD Radeon™ HD 7850
PCIE3.0
Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU – CPU communication
AMD HD3D™ Technology
Optimize stereoscopic 3D gaming and movie-watching entertainment.
Software CrossFire X Support
Multi-GPU technology for extreme performance
28nm GPU
Less power consumption & more efficient transistor
GHz
Meet or exceed a 1GHz reference engine clock for better performance
AMD Eyefinity Technology
Extends your visual horizon across six displays for engaging gameplay and entertainment.
DirectX® 11 Support
Bring new levels of visual realism to gaming on the PC and get top-notch performance
Microsoft® Windows® 7 Compatible
Enable PC users to enjoy an advanced computing experience and to do more with their PC

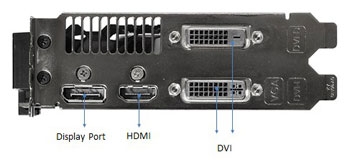

I/O Ports Highlight
Specifications:
| Graphics Engine |
AMD Radeon HD 7850 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 2GB |
| Engine Clock |
860 MHz |
| Memory Clock |
4800 MHz ( 1200 MHz GDDR5 ) |
| RAMDAC |
400 MHz |
| Memory Interface |
256-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
D-Sub Output : Yes x 1 (via DVI to D-Sub adaptor x 1)
DVI Output : Yes x 2
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes |
| Accessories |
1 x DVI to D-Sub adaptor
1 x CrossFire cable |
| Software |
GPU Tweak |
| ASUS Features |
DirectCU Series
Super Alloy Power |
