Seasonic 350W SS-350 M1U Power Supply - ATX 12V V2.31, EPS 12V, Active PFC, Customized Modular Cables, Super Low Noise Fan Control, 80 PLUS Bronze Certified
  • Mini 1U

IMG 1 of 1
No Longer Available
Part Number:
203471
(?) Brand:
Seasonic
Manuf No:
SS-350M1U
SS350M1U
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
24/8/2012
Details Files Images & Video
All stock codes associated to this product
SS350M1U, SS-350M1U, PSUSEA350M1U80G

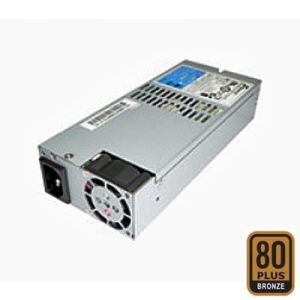

Seasonic SS-350M1U Active PFC Mini 1U 350W Power Supply

SKU: PSUSEA350M1U80G

Features:

  • Specification compliance:ATX12V v2.31 & EPS12V
  • Support the latest Intel & AMD Socket
  • DC to DC converter design
  • High efficiency and reliability
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off

Dimension:

  • L190 x W81.5 x H40.5mm (7.5” x 3.2” x 1.6”)

Connectors:

  • Customized modular cables

Electrical Specifications:

  • Input frequency: 47/63 Hz
  • Inrush current, cold start: 100A max.
  • Efficiency, at normal input voltage: > 87%
  • Line regulation: +/-1% typical
  • Load regulation: +/-5% typical
  • Cross regulation: +/-5% typical
  • Ripple / noise: 1%
  • MTBF, full load @ 25? amb. : >100K hours (Excluding the DC fan)
  • Power Factor Correction: Active PFC 99% typical
  • Safety: CUL, TUV, CB
  • EMC: CE, FCC, C-tick

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
