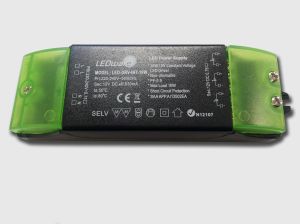

LEDware LED Driver Power Supply Constant Voltage - 240V to 12V, 10W, 800mA - EMC SAA Non-Dimmable Int Use

IMG 1 of 1
No Longer Available
Part Number:
205536
(?) Brand:
LEDware
Manuf No:
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
11/9/2012
Details Files Images & Video
All stock codes associated to this product
, LEDDRVINT10W, LED-DRV-INT-10W
LEDware LED Driver Power Supply Constant Voltage 240V to 12V 10W 800mA EMC SAA Non-Dimmable Int Use

LED-DRV-INT-10W

Description

A LED driver is a self-contained power supply that has outputs matched to the electrical characteristics of your LED or array of LEDs. There are currently no industry standards, so understanding the electrical characteristics of your LED or array is critical in selecting or designing a driver circuit. Drivers should be current-regulated (deliver a consistent current over a range of load voltages). Drivers may have more than one channel for separate control of different LEDs or arrays.

Features:

  • Independent LED driver
  • Over load protection
  • Output short circuit protection
  • 1.0KV surge protection
  • Compliance with Safty standard--EN61347-2-13/UL1310&UL8750
  • Compliance with EMC standard--EN55015/FCC Part15 class A
  • 5 Years warranty

Specifications:

  • Input voltage range:100V-240VAC 50/60Hz
  • Input currency:0.06A@240V
  • Power factor:0.5 typ
  • Output voltage:constant voltage 12V
  • Output current:Max 0.83A
  • Output load:Max. 10W
  • Output Min load:1 W
  • Operating Temp.(ta):-100C to 500C
  • Case Temp.(tc): Max 800C
  • Size(LXWXH):124cm X 39mm X 24mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
