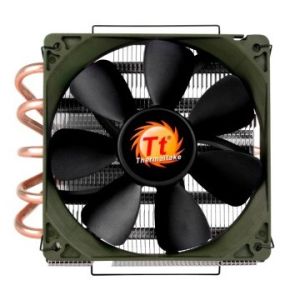

BigTyp Revo.
P/N: CLP0602
Detail Features
Top-down Blowing Design with 5 Heatpipes
5 x 6 mm heat-pipes direct touch CPU surface increasing heat conductivity - Support up to 160W
Top-down Blowing Design benefits from cooling both CPU and motherboard surrounding components
Large High density Aluminum fins provides larger surface area to quickly dissipate heat
Powerful fan
one Powerful 12cm Fan, PWM function with 800~1,800 RPM
Support Multi-socket Mounting System
Universal socket support
Intel: LGA2011,LGA1366, LGA1156, LGA1155, LGA775
AMD: FM1,AM3+,AM3,AM2+,AM2
Features
Top-down Blowing Design structure, benefit from cooling both CPU and motherboard surrounding components.
5 x Ø 6 mm heat-pipes direct touch CPU surface increasing heat conductivity - Support up to 160W
Large High density Aluminum fins provides larger surface area to quickly dissipate heat
One Powerful 12cm Fan, PWM function with 800~1,800 RPM
Support all the latest Intel and AMD socket including LGA2011.
CLP0602 BigTyp Revo. Installation
CLP0602 BigTyp Revo. Installation
Intel

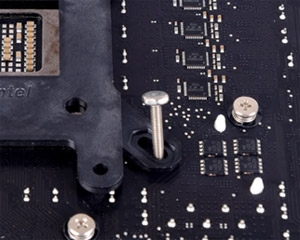

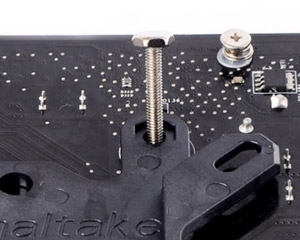

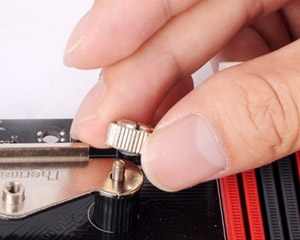

Step One: Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers.

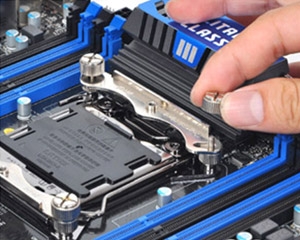

Step Two: Put the two Intel mounting bars along the four long screws and secure them with the four nuts.
Step Three: For LGA2011: Screwing the LGA 2011 screw onto motherboard tightly and put the two Intel mounting bars on the LGA 2011 screws. Fasten the four nuts onto the mounting bars tightly.

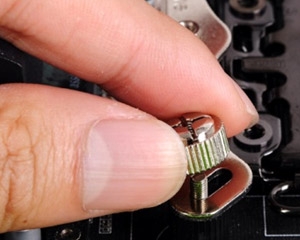

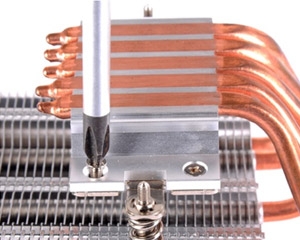

Step Four: Securing the two T-mounting bars to the base of cooler by short screws.

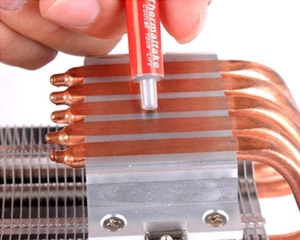

Step Five: Applying a thin layer of thermal grease

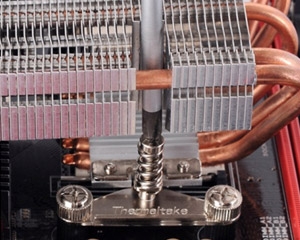

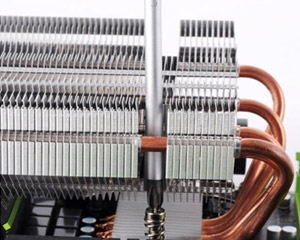

Step Six: Place the assembled heat-sink onto the CPU and tighten each fixing bolts evenly.

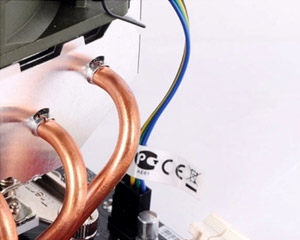

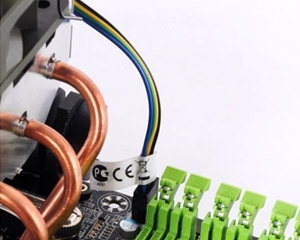

Step Seven: Connect the 4-pin wire to the motherboard’s CPU fan connector. Installation is done.
AMD
Step One: Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers.
Step Two: Put the two AMD mounting bars along the four long screws and secure them with the four nuts.
Step Three: Securing the two T-mounting bars to the base of cooler by short screws.
Step Four: Applying a thin layer of thermal grease
Step Five: Place the assembled heat-sink onto the CPU and tighten each fixing bolts evenly.
Step Six: Connect the 4-pin wire to the motherboard’s CPU fan connector. Installation is done.
Specifications:
| Compatibility |
Intel:
LGA 2011
LGA 1366
Core i7
LGA 1155/1156
Core i7/Core i5/Corei3
LGA 775
Core 2 Extreme/Core 2
Quad/Core 2 Duo/
Pentium D/Pentium 4/
Pentium/ Celeron D/
Celeron
AMD:
FM1
A-series
AM3+ / AM3
Phenom II / Athlon II / Athlon/Sempron series
AM2+ / AM2
Phenom II / Phenom / Athlon / Sempron series |
| Heatsink Dimension |

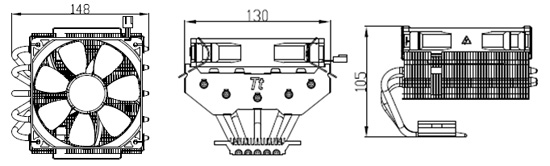

148 x 130 x 105 mm |
| Heatsink Material |
Aluminum Fins & Aluminum Base |
| Heatpipe |
6mm x 5pcs |
| Fan Dimension |
120 x 120 x 25 mm (L x W x H) |
| Rated Voltage |
12V |
| Started Voltage |
5V |
| Rated Current |
0.40 A |
| Power Input |
4.8 W |
| Fan Speed |
800-1800 RPM(PWM) |
| Air Flow |
85.16 CFM |
| Air Pressure |
3.25 mmAq |
| Noise |
20 dBA |
| Life time/Fan Life time |
30,000 Hours |
| Connector |
4 pin |
| |
160W |
| Weight |
530 g |
