All stock codes associated to this product
GBS30101, GBS301-01
Serial Adapter with Bluetooth wireless technology
GBS301
IOGEAR's Serial Adapter with Bluetooth wireless technology brings wireless Bluetooth technology to your RS-232 serial equipment, allowing you to eliminate messy cables. With a range of up to 330 ft (100 meters), you can communicate with serial devices beyond the reach of conventional cables. Simply plug the wireless adapter into your serial equipment and transfer data to and from Bluetooth-enabled devices.
With no software required, the Serial Adapter with Bluetooth wireless technology is a true plug-n-play solution. All you need to do is plug in the serial adapter to serial RS-232 equipment with a DB-9 connection and enjoy the freedom of wireless Bluetooth technology. In addition, the unit features external DIP switches allowing you to easily configure the baud rate with the simple flip of a switch. It is also fully compliant with Bluetooth 1.1 specifications and supports authentication and encryption.
Features:
- Eliminates messy cables and wirelessly communicate with serial RS-232 devices
- Communicates with another IOGEAR Serial Adapter with Bluetooth wireless technology or other Bluetooth-enabled devices
- Auto-connect feature when interconnecting two IOGEAR Bluetooth serial adapters
- Easily accessible DIP switches for baud rate configuration
- Configurable baud rate (9600 to 921600) DB-9 (9-pin) male connector
- Bluetooth class 1 device; range up to 330 ft. (100 meters)
- Compliant with Bluetooth 2.1 specifications
- Supports both DCE and DTE devices
- True plug-n-play, no software required
- Supports RTS/CTS Hardware flow control
- Secure communication using authentication and encryption
- Supports speeds of up to 723.1 Kbps
- Supports Bluetooth Serial Port Profile (SPP)
- Warranty: 3 YEAR

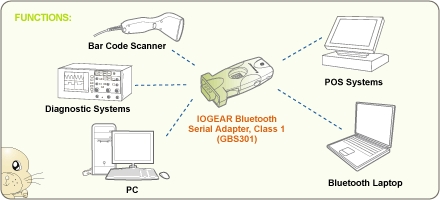

Function Diagram
Requirements
Device with DB-9 connector and compliant with RS-232 protocol
NOTE: Due to various communication protocols and drivers, this adapter may not work with RS-232 modems, mice, keyboards, cell phones, and devices using proprietary communication protocols.
- 1x Serial Adapter with Bluetooth Wireless Technology
- 1x Power Adapter
- 1x Null Modem Adapter
- 1x User Manual
- 1x Quick Start Guide
- 1 x Warranty / Registration Card
Specifications:
| Function |
GBS301 |
| Operating Temperature |
0 C - 50 C |
| Humidity |
10% - 90% non-condensing |
| Transmission Power |
20 dBm max with power control (Class 1) |
| Frequency Band |
2.402 GHz - 2.4835 GHz Unlicensed ISM band |
| Modulation |
GFSK (Gaussian Frequency Shift Keying) |
| Data Rate |
Up to 723 Kbps |
| Interface |
RS232/UART |
| Sensitivity |
Minimum -76dBm |
| Security |
Pairing, Encryption, Authentication |
| Profiles Supported |
Bluetooth Serial Port Profile |
| Dimensions |
GBS301 |
| Unit Dimensions |
| Width |
1.25" |
| Height |
0.675" |
| Length |
3" |
| Unit Package Dimensions |
| Width |
5.5" |
| Height |
2.75" |
| Depth |
8" |
| Master Carton |
| Width |
12" |
| Height |
9.5" |
| Depth |
17" |
| Master Carton Qty. |
12 |
| Weight |
| Master Carton Wt. |
12 lbs (5.35 kg.) |
| Unit Pack Wt. |
0.8 lb (0.36 kg) |
| Unit Wt. |
0.1 lb (0.05 kg) |
