All stock codes associated to this product
GTX650DC1GD5, GTX650-DC-1GD5
GTX650-DC-1GD5
ASUS GeForce GTX 650 DirectCU: cool, quiet, and powerful
- ASUS DirectCU cards operate 20% cooler and much quieter than reference in every model.
- DIGI+ VRM with Super Alloy Power delivers superior efficiency, reliability, and performance.
- GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface.
Overview
Modest but mighty – great graphics for everyone
ASUS Exclusive Innovation

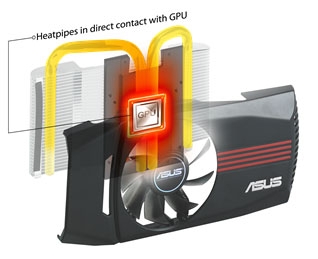

DirectCU
Flattened copper heatpipes makes direct contact with the GPU surface so heat is dissipated efficiently, delivering a 20% cooler and vastly quieter performance than reference.
DIGI+ VRM with Super Alloy Power
Acclaimed DIGI+ VRM has been applied via a massive power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference.
GPU Tweak
Detailed specs and actual card status with GPU-Z
Monitoring widget provides real-time and detailed multi-parameter info
2D/ 3D switcher can lock the card in 3D mode for higher benchmarks
Automatically check and update drivers and BIOS versions
Sync GPU clocks and voltages for easier overclocking
1GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution.
Graphics GPU Features
Powered by GeForce® GTX650
NVIDIA® PhysX® ready
Play games with advanced effects such as blazing explosions and lifelike characters with 10X faster switching between graphics and physics processing, enabling more complex effects to be rendered in real time.
PCIE 3.0
Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU-CPU communication.
GeForce® CUDA Support
Unlocks the power of GPU’s processor cores to accelerate the most demanding system tasks
NVIDIA® 3D Vision™ Surround Ready
Transform hunreds of PC games into stereoscopic 3D and enjoy immersive full HD 3D gaming across three displays at an incredible 5760x1080 resolution.
Microsoft® DirectX® 11 Support
DirectX 11 GPU-accelerated tessellation allows more detailed geometry to be packed into a scene, allowing characters to be rendered with cinema-quality detail.

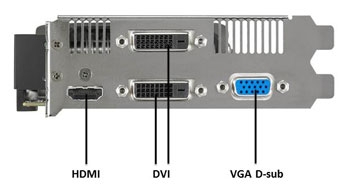

I/O Ports Highlight
Specifications
| Graphics Engine |
NVIDIA GeForce GTX 650 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 1GB |
| Engine Clock |
1058 MHz |
| CUDA Core |
384 |
| Memory Clock |
5000 MHz ( 1250 MHz GDDR5 ) |
| Memory Interface |
128-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
D-Sub Output : Yes x 1
DVI Output : Yes x 2 (DVI-D)
HDMI Output : Yes x 1
HDCP Support : Yes |
| Software |
ASUS Utilities & Driver
GPU Tweak
|
| Dimensions |
9.65 " x 4.72 " Inch |
| Note |
Specifications are subject to change without notice.
PCB color and bundled software versions are change without notice.
Brand and product names mentioned are trademarks of their respective company. |
