All stock codes associated to this product
GTX660DC22GD5, GTX660-DC2-2GD5, ENGTX660DC22GD5, ENGTX660-DC2-2GD5
GTX660-DC2-2GD5
ASUS GeForce® GTX 660 DirectCU: 20% cooler, 3X quieter
- DirectCU achieves 20% lower temps with twice the dissipation area and 6X greater airflow than conventional design.
- DIGI+ VRM with Super Alloy Power delivers superior efficiency, reliability, and performance.
- GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface.
Overview
Deploy the Cool. Reign in Silence.
ASUS Exclusive Innovation
DirectCU II

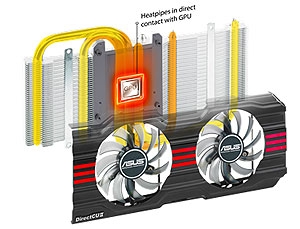

DirectCU thermal design utilizes direct contact copper heatpipes so heat is dissipated efficiently, delivering a 20% cooler and vastly quieter performance than reference.
DIGI+VRM with Super Alloy Power
Acclaimed DIGI+ VRM has been applied via a power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference.
GPU Tweak
- Detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time and detailed multi-parameter info
- Automatically check and update drivers and BIOS versions
Gigantic 2GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution
Graphics GPU Features
Powered by GEFORCE GTX660
NVIDIA® Adaptive V-Sync
Get more than just faster frame rates. Get ultra-smooth gaming every time with NVIDIA gaming innovations - Adaptive Vertical Sync. This technology dynamically adjusts Vsync to current frame rates for maximum playability.
SLI Support
Multi-GPU technology for extreme performance
PCIE 3.0
Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU-CPU communication.
NVIDIA® GPU Boost
Push the breathtaking performance of the GeForce GTX graphics cards to new levels with NVIDIA GPU Boost. This technology dynamically maximizes clock speeds to bring out the best performance in every game.
NVIDIA® PhysX® ready
Play games with advanced effects such as blazing explosions and lifelike characters with 10X faster switching between graphics and physics processing, enabling more complex effects to be rendered in real time.
NVIDIA® 3D Vision™ Surround Ready
Transform hunreds of PC games into stereoscopic 3D and enjoy immersive full HD 3D gaming across three displays at an incredible 5760x1080 resolution.
Microsoft® DirectX® 11 Support
DirectX 11 GPU-accelerated tessellation allows more detailed geometry to be packed into a scene, allowing characters to be rendered with cinema-quality detail.

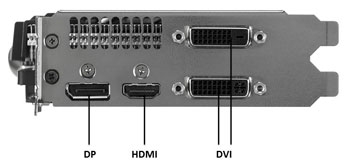

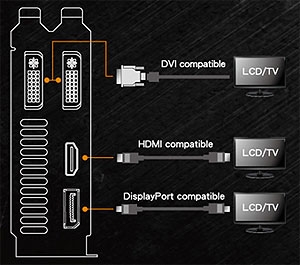

I/O Ports Highlight
Specifications
| Graphics Engine |
NVIDIA GeForce GTX 660 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 2GB |
| Engine Clock |
GPU Boost Clock : 1033 MHz
GPU Base Clock : 980 MHz |
| CUDA Core |
960 |
| Memory Clock |
6008 MHz ( 1502 MHz GDDR5 ) |
| Memory Interface |
192-bit |
| Resolution |
DVI Max Resolution : 2560x1600 |
| Interface |
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes |
| Software |
ASUS GPU Tweak & Driver |
| Dimensions |
10.2 " x 5.2 " x 1.5 " Inch |
| Note |
To have the best cooling performance, ASUS GTX660-DC2T-2GD5 extends the fansink to 2 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system!
Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit https://www.geforce.com/ |
