- GPU Boost - Go to the Limit with iGPU Level Up!
- UEFI BIOS (EZ Mode) - Flexible & Easy BIOS Interface
- USB 3.0 - High Speed Transfer Technology
- Windows 8 Ready Assured Compatibility

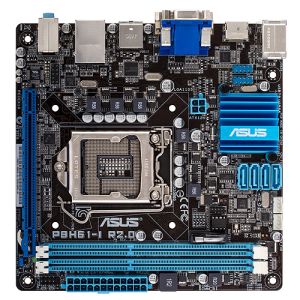

Overview
LGA1155 Intel Sandy Bridge Processor Ready
This motherboard supports the latest Intel Sandy Bridge processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel Sandy Bridge processors are among the most powerful and energy efficient CPUs in the world.
PCIe 3.0 Ready
PCI Express 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them.
Intel H61 Chipset
The Intel H61 Express is the latest single-chipset design that supports the new socket 1155 Intel Core i3/Core i5/Core i7 2nd generation processors. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, Intel H61 Express Chipset also supports iGPU function.
ASUS FanXpert
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
USB 3.0 Support
Experience ultra-fast data transfers at 4.8Gbps with USB 3.0--the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.
AI Suite II
One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise overclocking, energy management, fan speed control, voltage and sensor readings, and even interact with mobile devices via Bluetooth. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
GPU Boost
Go to the Limit with iGPU Level Up!
GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use.
ASUS Anti-Surge Protection
This special design prevents expensive devices and the motherboard from damage caused by power surges from switching power supply(PSU).
ASUS EPU
System Level Energy Efficiency
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power usage for critical PC components in real-timehelping save power and money!
EFI BIOS (EZ Mode)
Flexible, Easy BIOS Interface
ASUS brand new EFI BIOS offers a user-friendly interface that goes beyond traditional keyboard only BIOS, to enable more flexible and convenient mouse controls. Users can easily navigate the new EFI BIOS with the same smoothness as their operating system. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system settings.
8 Channel Audio Codec
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology.
GreenASUS
The motherboard is European Unions Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
Specifications
| CPU |
Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list |
| Chipset |
Intel H61(B3) |
| Memory |
2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). |
| Graphic |
Integrated Graphics Processor
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1530 @ 75 Hz
Maximum shared memory of 1748 MB |
| Expansion Slots |
1 x PCIe 3.0/2.0 x16 |
| Storage |
Intel H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue |
| LAN |
Realtek 8111F, 1 x Gigabit LAN Controller(s) |
| Audio |
VIA 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| USB Ports |
ASMedia ASM1042 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, )
Built-in Controller :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board) |
| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s) |
| Internal I/O Ports |
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s) |
| Accessories |
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s) |
| BIOS |
64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a |
| Manageability |
WOL by PME, PXE |
| Support Disc |
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version) |
| Form Factor |
Mini ITX Form Factor
6.75 inch x 6.75 inch ( 17.1 cm x 17.1 cm ) |
