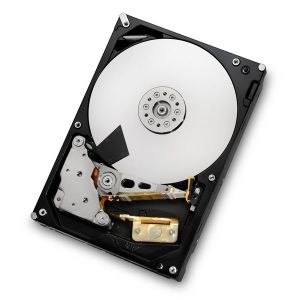

Hitachi 3000GB (3TB) 7200rpm SAS 6Gb/s HDD w. 64MB Cache (HUS723030ALS640) Ultrastar 7K3000 Series

IMG 1 of 1
No Longer Available
Part Number:
206141
(?) Brand:
Hitachi
Manuf No:
0B26311
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
0B26311

Ultrastar 7K3000


2TB & 3TB
3.5-INCH ENTERPRISE HARD DRIVE

  • Industry-leading Reliability – First 7200 RPM rated at 2M hour MTBF
  • Colossal Capacity – Up to 3TB for capacity-optimized enterprise applications
  • Configuration Choice – SATA and SAS models

Overview

The HGST Ultrastar 7K3000 is the worlds first and only 7200 RPM hard drive rated at 2.0 million hours MTBF and backed by a five-year limited warranty. The Ultrastar 7K3000 represents the fifth-generation HGST 5-platter mechanical design, first introduced in 2004, and has been field proven by top server and storage OEMs as well as leading Internet giants. When the highest quality and reliability are a top requirement, customer field data proves that the Ultrastar 7K3000 delivers by reducing downtime, eliminating service calls and keeping TCO to a minimum. Engineered for the highest reliability, the Ultrastar 7K3000 is not only put through grueling design tests during development but must also pass stringent ongoing reliability testing during manufacturing. Across the entire Ultrastar family, world-class quality control, combined with scientific root-cause analysis and multi-faceted corrective actions, ensure that HGST remains the recognized leader in quality and reliability for enterprise-class hard drives.

Specifications:

Model(s) SATA models
HUA723030ALA640
HUA723030ALA641
HUA723020ALA640
HUA723020ALA641
 SAS models
HUS723030ALS640
HUS723030ALS641
HUS723020ALS640
HUS723020ALS641
Interface SATA 6Gb/s SAS 6Gb/s
Capacity (GB) 3TB / 2TB
Sector size (variable, Bytes/sector) 512 512 / 520 / 528
Max areal density (Gbits/sq. in.) 369 / 360
Performance
Data buffer (MB) 64
Rotational Speed (RPM) 7200
Interface transfer rate (MB/sec, max) 600
Sustained transfer rate (MB/sec, typ.) 152
Seek Time (read, ms, typical) 8.2
Reliability
Error Rate (non-recoverable, bits read) 1 in 1015
MTBF (M hours) 2.0
Load/Unload Cycles 600,000
Availability (hrs/day x days/wk) 24x7
Acoustics
Seek (Bels, typical) 2.9
Power
Requirement +5 VDC (+/-5%)
+12 VDC (+10%/-8%)
Requirement: Start-up (W, peak, max) 1.2 (+5V), 2.0 (+12V) 0.56A (+5V), 1.81A (+12V)
Requirement: Read/Write (W, avg) 11.3 10.4
Unload idle (W) 5.6 6.1
Physical size
Z-height (mm) 26.1
Dimensions (width x depth, mm) 101.6 (+/-0.25) x 147
Weight (g, max) 690
Environmental (operating)
Ambient temperature 5 to 60 C
Shock (half-sine wave) 70
Vibration (5 to 500 Hz) 0.67 (XYZ)
Environmental (non-operating)
Ambient temperature -40 to 70 C
Shock (half-sine wave) 300

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
