All stock codes associated to this product
IPS237L, 2325006
Enhance the visual enjoyment

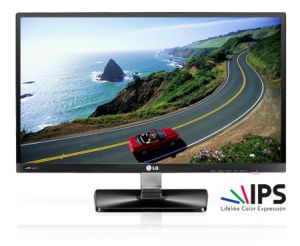

LG 23 "IPS7L display
IPS237L-BN
- Color fidelity
- Color calibration
- Hardware checksum
- True color detector
Enhance the visual enjoyment
Colour calibration
Experts have on the production line of professional color control and color calibration test to ensure accurate tone.
Hardware checksum
Hardware calibration by directly regulating the display color set presents the most accurate colors.
True color detector
LG's unique true color detector software program that can help to achieve the hardware color calibration.
Wide viewing angle
Whether standing or lying down, in any angle you can enjoy perfect picture quality of the LG IPS display experience.
Smooth color change
LG IPS display smooth change of tone, the picture quality is clearer even watch a movie for a long time, surfing the web or playing games, the eyes will not fatigue.
The MHL (Intelligent connection)
The phone connected to the monitor via an HDMI cable, and let your heart to watch HD Video and other content.
Cinema screen
The ultra-thin frame, crystal brilliant impressionistic IPS7L cinema screen design lets you immersive a relaxing swim real color world.
Full HD, one million Contrast
SPECIFICATIONS
IPS237L
Display
Screen Type: 58.4 cm (23 inch) Flat Panel Active matrix-TFT LCDAnti-Glare coating Visible diagonal size: 58.4 cm
Pixel Pitch: 0.265 mm x 0.265 mm (Pixel Pitch)
Sync Input
Horizontal Frequency: 30 kHz to 83 kHz (Automatic)
Vertical Frequency: 56Hz to 75Hz (D-SUB), 56Hz to 61Hz(HDMI)
Input Form: Separate Sync. HDMI
Video Input
Signal Input: 15 pin D-SUB Connector / HDMI Connector
Input Form: RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution
Max
D-SUB(Analog): 1920 x 1080 @ 60 Hz
HDMI (Digital): 1920 x 1080 @ 60 Hz
Recommend: VESA 1920 x 1080 @ 60 Hz
Plug & Play: DDC 2B(Analog,HDMI)
Power Consumption
On Mode : 29 W(Typ.)
Sleep Mode . 0.5 W
Off Mode . 0.5 W
Power Input: 19 V 1.6 A
AC-DC Adapter
Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
OUTPUT: 19 V 1.7 A
Dimensions(Width x Height xDepth):
With Stand 53.3 cm x 39.8 cm x 15.4 cm
Without Stand 53.3 cm x 32.1 cm x 3.4 cm
Weight: 3.5 kg
Tilt Range: -5° to 20°
Environmental conditions
Operating T emperature
Operating Humidity
10°C to 35 °C
10 % to 80 %
Storage T emperature
Storage Humidity
-20°C to 60 °C
5 % to 90 % non-Condensing
Stand Base: Attached ( ), Detached (O)
Power cord: Wall-outlet type
