All stock codes associated to this product
EVNX20ZZBSBAU, EV-NX20ZZBSBAU
VGA 3.0" 20.3MP NX Style Black NX20
EV-NX20ZZBSBAU - Black
- 20.3MP APS
- C Sensor
- Smart Camera
- Wi-Fi Capabilities
Features:
Striking a balance between resolution, performance and design, the Samsung NX20 can unleash the professional photographer in all of us. Its sensitive 20.3MP APS-C CMOS Sensor and 1/8000 shutter speed help you capture richly nuanced, high defined images in the blink of an eye. The Clear AMOLED Swivel Display makes shooting from most angles comfortable. And Wi-Fi Connectivity* minimises the need for wires and cables.
Internet connection required. Data download and usage charges may apply.

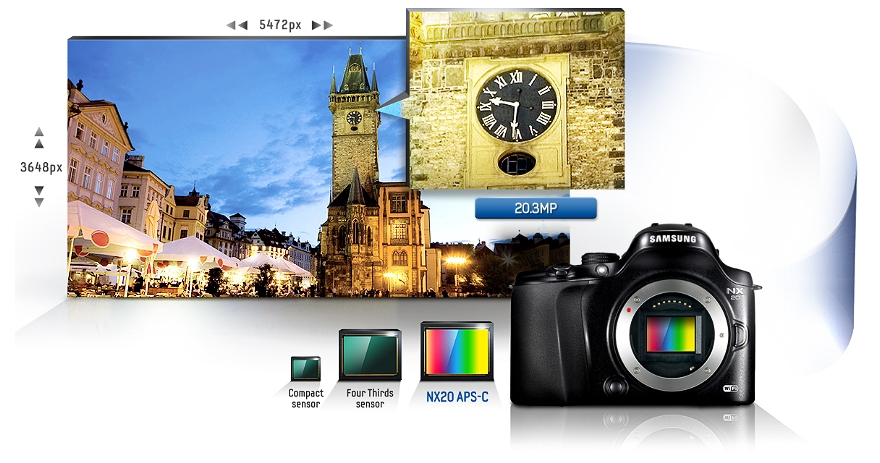

20.3MP APS-C Sensor
Customized for the NX System, the professional-grade, 20.3MP APS-C CMOS Sensor produces exceptional images. Each individual pixel has a large sensor area and receives great light, low noise levels, high dynamic range and exceptional colour differentiation. The high sensitivity allows you to shoot during low-light situations with minimal graininess and other noise. The new sensor also provides Full HD video output capabilities.

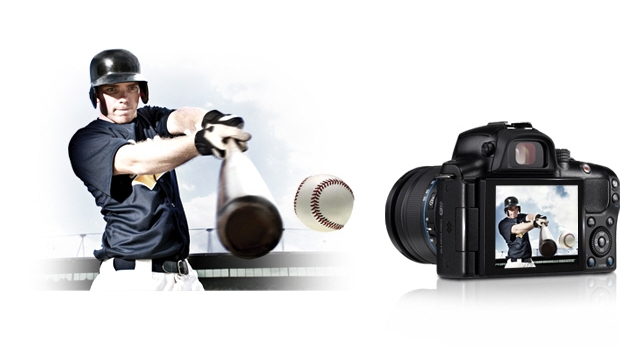

Control your speed
1/8000 Fast Shutter
Shutter speed can make the difference between capturing an iconic image and missing a once-in-a-lifetime opportunity. The NX20’s 1/8000 shutter speed gives you the flexibility to shoot outstanding shots —at varying speeds and light exposures. The NX20’s shutter can adjust itself automatically as it senses environmental factors such as temperature and camera direction. Also the electronically controlled focal-plane shutter helps to reduce exposure errors.

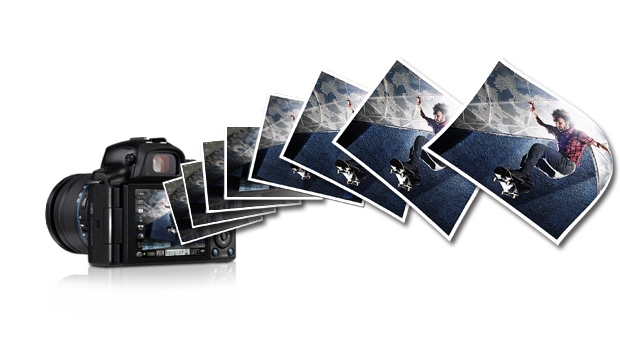

High Speed Capture
The NX20’s High Speed Capture capabilities lets you catch fleeting moments and fast-moving objects without requiring a separate sensor module. The NX System features an ultra-high-speed Auto Focus. Its outstanding algorithm delivers fast accuracy auto focus. The NX20 can shoot at 8 frames per second for outstanding continuous shooting, and shutter lag is just 40ms.

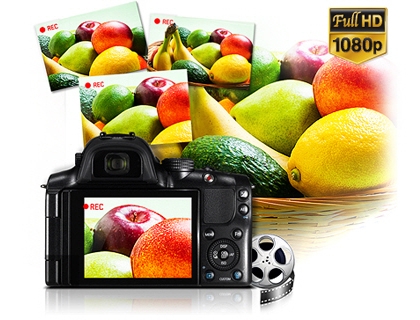

1080P Full HD Stereo Movie Recording
Built with 1080 30p Full HD movie recording capabilities, the NX20 allows you to shoot outstanding video with a still camera. Choose from a wide range of viewing angles and zoom with confidence. The CMOS image sensor can offer great auto foucs even while you shoot.

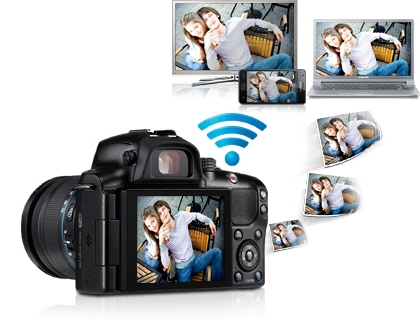

Fast sharing and saving, simply
Wi-Fi Connectivity*
The NX20s Wi-Fi connectivity* lets you connect your NX20 to a wireless network. Save photos and videos directly to a computer or cloud service** while you shoot, email them, print them wirelessly, or upload them to Facebook or YouTube***. This is great for when you dont want to lose a great shot, or have limited storage space, or remembering to bring the right cable along.
*Internet connection required. Data download and usage charges apply.
** Cloud storage requires separate registration with a third-party storage provider. Usage is subject to service agreements. Internet connection required. Data download and subscription charges may apply.
*** Samsung does not approve use of this feature to infringe copyright laws.

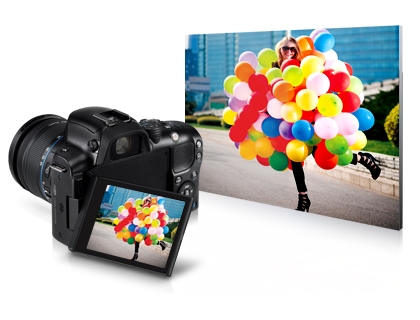

Clear AMOLED Swivel Display
The Clear AMOLED Swivel Display allows you to frame images and shoot from just about any angle. The NX20’s AMOLED display has deep blacks and great accuracy, vivid colours-even when viewed in direct sunlight. You’ll know almost right away if your shot is the one you want. The display also delivers great battery life so you can shoot for long periods .

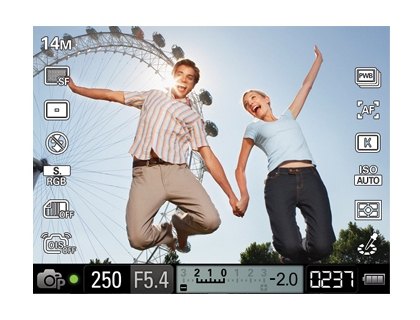

A great window on the world
SVGA EVF
A key feature of the NX20 is the built-in electronic view finder (EVF). The NX20 provides photographers with a exceptional window into reality for both short and long distances. So now you can impressively frame each shot with minimal guesswork.
Wide Range ISO (12800, 7 steps)
Wide Range ISO makes most lighting situations outstanding. The ability to shoot as high as ISO 12,800 at normal settings means that also in low light, you’ll get rich tonal gradations and virtually true-to-life colours. You can also capture clear, crisp images of fast-moving objects.
i-Function 2.0
The i-Function 2.0 system makes it easy to adjust key camera settings through a single button and the value ring located on the lens, instead of the body. Designed for the novice and expert alike, i-Function 2.0 lets you quickly choose the settings that best fit the moment—and your expertise.
Specifications:
Image Sensor
| Sensor Type |
CMOS |
|
| Sensor Size |
23.5 x 15.7mm |
|
| Effective Pixel |
Approx. 20.3 Mega-pixels |
|
| Total Pixel |
Approx. 21.6 Mega-pixels |
|
| Color Filter |
RGB Primary Colour Filter |
|
Lens
| Mount |
Samsung NX |
|
| Usable Lens |
Samsung Lenses for Samsung NX Mount |
|
i-Function
I-Scene (depends on Lens) Smart Filter (Vignetting, Minature, Fish-Eye, Sketch, Defog, Halftone Dot) i-Zoom (x1.2, 1.4, 1.7, 2.0)
Image Stabilisation
| type |
Lens Shift (Depends on Lens) |
|
| mode |
OIS Mode1, Mode2, OFF |
|
Distortion Correct
| mode |
LDC On / Off (Depends on Lens) |
|
Dust Reduction
Display
| type |
Swivel Type AMOLED |
|
| Size |
3" |
|
| Resolution |
VGA (640 x 480) 614k dots ( PenTile ) OCR |
|
| Field of View |
Approx. 100% |
|
| User Display |
Grid (4types), Histgram, Icons: On / Off, Distance Scale: ft, m, Off, Electronic Level |
|
Viewfinder
| type |
EVF w / Eye Contact Sensor |
|
| Resolution |
SVGA Class (800 x 600) 1,440,000 dots Equiv. |
|
| Field of View |
Approx. 100% |
|
| Magnification |
Approx. 1.04X (APS-C. 50mm. -1m-1) |
|
| Eyepoint |
Approx. 18.0mm |
|
| Diopter Adjustment |
Approx. -4.0 ~ +4.0m-1 |
|
Focusing
| type |
Contrast AF |
|
| mode |
Single AF, Continuous AF, MF |
|
| Focusing point |
Selection: 1 point (Free selection) Multi: Normal 15 points, Closeup 35 pointsFace Detection: Max. 10 faces |
|
| AF-assist lamp |
Yes |
|
Shutter Speed
| type |
Electronically controlled vertical-run focal plane shutter |
|
| Speed |
Auto: 1/8,000 seconds ~ 30 seconds (w/E-Shutter) Manual: 1/8,000seconds ~ 30 seconds (w/E-Shutter, 1/3EV step) Bulb ( Limit time: 4 minutes) |
|
Exposure
| Metering System |
TTL 221 (17 x 13) Block segmentMetering: Multi, Centre-weighted, SpotMetering range: EV 0-18 (ISO 100 30mm, F2) |
|
| Compensation |
3EV (1/3EV step) |
|
| AE Lock |
AEL Button |
|
| ISO Equivalent |
Auto, 100, 200, 400, 800, 1,600, 3,200, 6,400, 12,800 (1 or 1/3EV step)(1) |
|
Drive Mode
| mode |
Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE, WB, PW) |
|
| Continuous |
JPEG: High (8fps) up to 11 shots, Low (3fps) up to 15 shots selectableBurst: 10, 15, 30fps selectable, 30 shots by 1 releaseRAW: High (8fps), Low (3fps) selectable up to 8 shots |
|
| Bracket |
Auto Exposure Bracket (3EV), WB, PW |
|
| Self Timer |
2 - 30 seconds (1 second Step) |
|
| Remote Controller |
SR2NX02 (via Micro USB port) |
|
Flash
| type |
TTL Auto Pop-up flash |
|
| mode |
Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, OFF |
|
| Guide Number |
11 (at ISO 100) |
|
| Angle of View Coverage |
28mm Wide-Angle (Equivalent to 35mm) |
|
| Sync. Speed |
Less than 1/180 second |
|
| Flash Compensation |
-2 - +2 EV (0.5 EV step) |
|
| Internal Flash |
Yes |
|
| External Flash |
Samsung External Flash available (SEF-42A, SEF220A: Optional) |
|
| Synchro (Flash attachment) |
Hot Shoe |
|
White Balance
| mode |
Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K(Manual) |
|
| Micro Adjustment |
Each 7 Steps in Amber, Blue, Green, Magenta Axis |
|
Dynamic Range Expansion
Smart Range On / Off
Picture Wizard
| mode |
Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1 ~ 3) |
|
| Parameter |
Contrast, Colour, Saturation, Sharpness |
|
Shooting
| mode |
SmartAuto (2.0), Program, Aperture Priority, Shutter Priority, Manual, Custom, Lens Priority, Scene, Movie, Wi-Fi |
|
| Scene Mode |
Live Panorama (2d, 3D), Beauty Shot, Night, Landscape, Portrait, Children, Sports, Close Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach&Snow, Sound Picture, 3D Photo |
|
| Sound Picture |
JPEG Only, Sound Recording Time (Before and after Shooting each 5 seconds or 10 seconds) |
|
| Image Size |
JPEG (3:2): 20.0M (5472 x 3648), 10.1M (3888 x 2592), 5.9M (2976 x 1984), 2.0M (1728 x 1152), 5.0M (2736 x 1824): Burst mode only JPEG (16:9): 16.9M (5472 x 3080), 7.8M (3712 x 2088), 4.9M (2944 x 1656), 2.1M (1920 x 1080) JPEG (1:1): 13.3M (3648 x 3648), 7.0M (2640 x 2640), 4.0M (2000 x 2000), 1.1M (1024 x 1024) RAW: 20.0M (5472 x 3648) |
|
| Quality |
Super fine , Fine, Normal |
|
| RAW Format |
SRW (Compressed) |
|
| Color Space |
sRGB, Adobe RGB |
|
| Smart Filter |
Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus |
|
Image Play
| type |
Single image, Thumbnails (3, 15, 40 images), Slide show, Movie |
|
| Smart Filter |
Miniature, Soft Focus, Old Film1, Old Film2, Halftone Dots, Sketch, Fish-Eye, De-fog Negative JPEG (3:2): 5.9M (2976 x 1984), 5.0M (2736 x 1824), 2.0M (1728 x 1152) JPEG (16:9): 6.2M (3328 x 1872), 4.9M (2944 x 1656), 2.1M (1920 x 1080) JPEG (1:1): 6.0M (2448 x 2448), 4.0M (2000 x 2000), 1.1M (1024 x 1024) |
|
| Editing |
Smart Filter, Red-eye fix, Backlight., Resize, Rotate, Face Retouch, Brightness, Contrast, Vignetting |
|
Movie Clip
| Format |
MP4 (H.264) |
|
| Compression |
Movie: H.264 / Sound: AAC |
|
| mode |
Program, Aperture Priority, Shutter Priority, Manual |
|
| Recording |
With Audio or without Audio (user selectable, recording time: 25 minutes) |
|
| Frame Rate |
30fps, 24fps (1920 x 810 Only) |
|
| Image Size |
1920 x 1080, 1920 x 810, 1280 x 720 , 640 x 480, 320 x 240 for Sharing (Default: 1920 x 1080) |
|
| Movie Editing |
Still Image Capture, Time Trimming |
|
| Sound |
Stereo Sound |
|
| Smart Filter |
Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus, Old Film1, Old Film2, Negative |
|
| Multi-Motion Recording |
x0.25 (640, 320 only), x0.5 (1280, 640, 320 only), x5, x10, x20 |
|
| Quality |
High Quality , Normal |
|
Storage
| Media |
SD, SDHC, SDXC (guarantee up to 128GB) |
|
| File format |
RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0 |
|
| Capacity (2GB) |
20.0M RAW: Super Fine 37, Fine 47, Normal
5,120.0M (3:2): Super Fine 186, Fine 365, Normal
5,3710.1M (3:2): Super Fine 397, Fine 727, Normal
10,475.9M (3:2): Super Fine 628, Fine 1,172, Normal
16,482.0M (3:2): Super Fine 1,633, Fine 2,752, Normal
3,566 Burst (5.0M): Super Fine 733, Fine 1,354, Normal
188,516.9M (16:9): Super Fine 230, Fine 450, Normal
6,587.8M (16:9): Super Fine 487, Fine 922, Normal
13,144.9M (16:9): Super Fine 749, Fine 1,381, Normal
19,202.1M (16:9): Super Fine 1,579, Fine 2,675, Normal
348,113.3M (1:1): Super Fine 290, Fine 562, Normal
8,177.0M (1:1): Super Fine 538, Fine 1,014, Normal
14,374.0M (1:1): Super Fine 897, Fine 1,627, Normal
22,321.1M (1:1): Super Fine 2,654, Fine 4,072, Normal
4,954 Movie: 1920 x 1080 30p: High Quality 17m 35 seconds, Normal
21m 56s 1920 x 810 24p: High Quality 19m 0 second, Normal
23m 43s 1280 x 720 60p: High Quality 20m 16 seconds, Normal
25m 17s 1280 x 720 30p: High Quality 29m 10 seconds, Normal
36m 20s 640x480 30p: High Quality 73m 26 seconds, Normal
91m 0s 320x240 30p: High Quality 236m 16 seconds, Normal 287m 12 seconds(2) |
|
Languages
Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Norsk, Simplified / Traditional Chinese
Direct Print System
GPS
| type |
Geo-Tagging with Option GPS Module (WGS84) |
|
| Function |
Location Name (OSD) (English and Korean only), Google Map Link (with Intelli-Studio) |
|
Interface
| Digital Output Connector |
USB 2.0 (HI-SPEED) (micro USB Jack) |
|
| Video Output |
NTSC, PAL (user selectable) HDMI 1.4a: (1080i, 720P, 576P / 480P) |
|
| External Release |
Yes |
|
Power
| Power Source |
type |
Rechargeable battery: BP1310 (1300mAh) Charger: BC1310 |
| Battery |
180 minutes / 360 shots (CIPA Standard) |
|
Physical Specifications
| Dimension |
Dimension (WxHxD) |
122.0 x 89.6 x 39.5mm (excluding the projection part) |
| Weight |
341g (without batteries and Memory card) |
|
| Operating Temperature |
0 - 40C |
|
| Operating Humidity |
5 - 85% |
|
S/W and PC OS
| Bundle PC S/W |
Intelli-studio 3.0, Samsung RAW Converter 4, PC Auto Backup, Adobe Reader |
|
| Compatible OS |
Windows XP SP2, Vista, Windows 7 |
|
Wireless
| Wireless |
IEEE 802.11n support. Cloud. Email. Auto Backup. Remote Viewfinder. Mobile Link. Wi-Fi Direct. TV Link. Social Sharing |
|
System Requirement
| Windows |
General |
PC with processor better than Intel Pentium III 500MHz (Intel Pentium 800MHz or higher recommended) Windows XP, Vista, 7 Minimum 256MB RAM (512MB or more recommended) 250MB of available hard disk space (1GB or more recommended)USB portCD-ROM drive 1024 x 768 pixels, 16-bit colour display compatible monitor (24-bit colour display recommended) Microsoft Direct X 9.0c or later |
| |
Intelli-Studio 3.0 |
Windows XP SP2, Vista, 7Intel Pentium 4 3.2GHz or higher / AMD AthlonTMFX, 2.6GHz or higher Minimum 512MB RAM (1GB or more recommended) 250MB of available hard disk space (1GB or more recommended) "1024 x 768 pixels, 16-bit colour display compatible monitor (1280 x 1024 pixcels, 32-bit colour display recommended)" USB 2.0, Microsoft DirectX 9.0c or laternVIDIA Geforce 7600GT or higher / ATI X1600 series or higher# 64-bit editions of Windows XP, Vista, and 7 are not supported |
| |
Samsung RAW Converter 4 |
Windows XP, Vista, 7 "Intel Pentium, AMD Athlon Processor (Intel Pentium 4, AMD Athlon XP or later recommended)" 1GB or more RAM recommendedMinimum 100MB of available hard disk space 1024 x 768 pixels, Full Colour (24-bit or higher) colour display compatible monitor |
| Macintosh |
General |
Power Mac G3 or laterMac OS 10.4 or later Minimum 256MB RAM (512MB or more recommended) Minimum 110MB of available hard-disk spaceUSB portCD-ROM drive |
| |
Samsung RAW Converter 4 |
Mac OS X v10.6 / v10.5 / v10.4 "Power PC / Intel Processor-based or compatible computer (Core 2 Quad or later recommended)" 1GB or more RAM recommended Minimum 100MB of available hard disk space 1024 x 768 pixels, 24-bit colour display compatible monitor |
