Applications examples

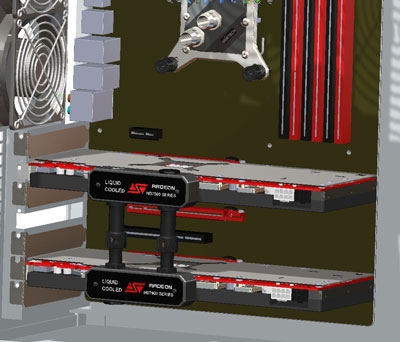

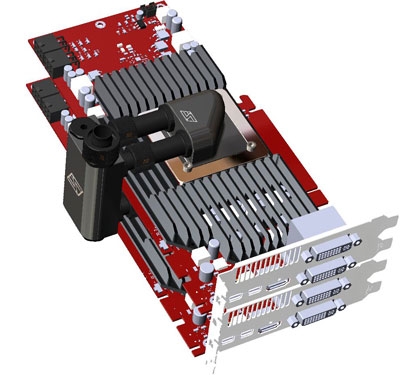

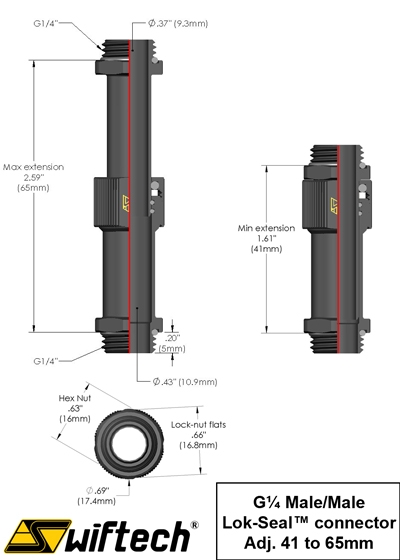

Connecting the SLI/CrossFire bridge to the MCW82 waterblock 3slots spacing

Recommended use

• Initial Tip: If possible, attach the fittings to the cooling devices first! While not mandatory, it is always preferable to fastena fitting toa cooling device prior to installingthe device inside the case. This will eliminate interference issues that may be encountered when working with tools inside of space constrained enclosures.

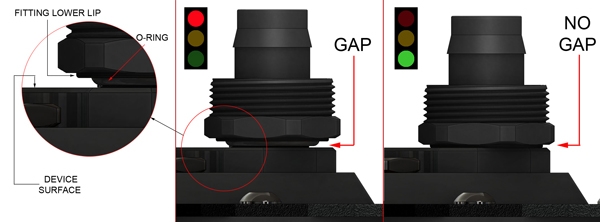

• Fasten the fitting by hand untilit mates with the surface of the cooling device. The amount of force necessary to screw the fittings down in finger tight mating position may vary from one device to another depending onvarious factors. Users are advised to always visually check on the actual position of the fitting relative to the device surface rather than solely relying on feel. There should be little -not to exceed the thickness of a sheet of paper, or no visible gap between the fitting lower lip and the device surface. See the illustration below.

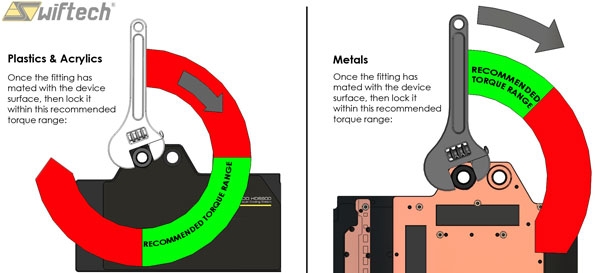

• For complete long-term safety and leak-free operations, Swiftech recommends that the fittings be locked in place using the recommended tools and that the torque levels specified below be applied:

(*) For full 5mm thread depth please inspectthe devicethreads prior to applying the maximum
recommended torque when partial threads exist due to application necessity, only apply the
minimum torque.
