All stock codes associated to this product
RSA00SPPAD3AU, RSA00-SPPAD3-AU, PSCORSA00SPPAD3

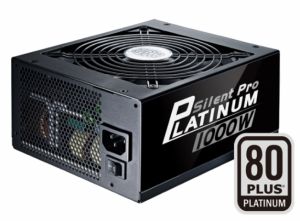

Silent Pro Platinum 1000W
(RS-A00-SPPA)
Introduction
The Silent Pro Platinum PSUs are fully compliant with the 80-PLUS® Platinum efficiency requirement with peak efficiency up to 94%. It features modular cable design integrated with dual 7V fan ports as well as equipped a 135mm ultra silent hydraulic bearing fan, with +12V single rail outputs efficiency that can reach up to 984W output at 82A, enough to power up most high end VGAs and CPUs at greatly quiet operation. No doubt it is specially designed for hardcore gamers who desire extremely high efficiency and powerful gaming products.
Features:
80 Plus Platinum

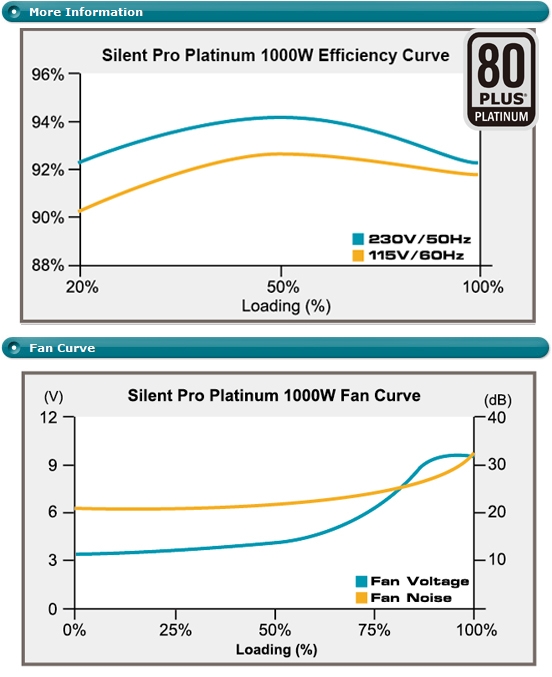

80 Plus Platinum Certified: 90%, 92% and 89% Efficiency @ 20%, 50% and 100% Load
Eco-friendly design: Erp Lot6 Ready!
A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode
Powerful Single +12V Output
Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading withup to 984W output at 82A.
Silent Operation
135 mm Hydraulic Dynamic Bearing Fan for quieter operation
Japanese Capacitors
High quality capacitors protecting equipment from capacitor leakage problem, also increasing the life-span of your equipment, especially at high temperatures.
Supports High-end Hardware
Supports 4-Way SLI / CrossFire+ Dual CPUs.
Able to run toughest rig with 4-way GPUs and dual CPUs without any hassle

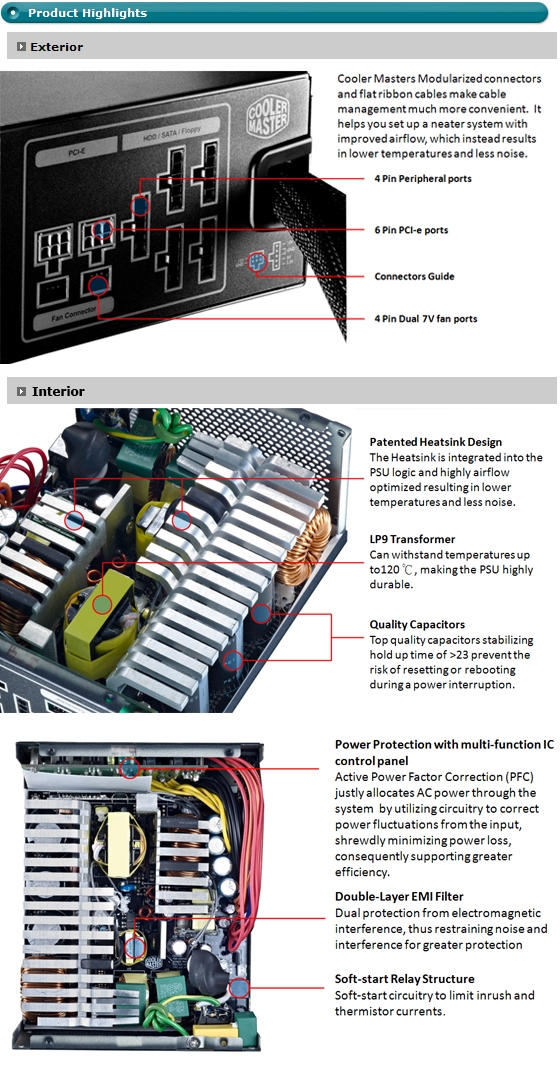

Double-Layer EMI Filter Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.
Intel Compliant ATX12V v 2.3
Active PFC+ PWM Combo Controller Integrating this active controller will increase the efficiency of any computer, making PFC higher than 99%.
And More
Soft-start circuitry to limit inrush and thermistor currents.
High reliability with an MTBF of at least 100,000 hours.
Worldwide Five Year Warranty and free live-chat customer support.
Specifications
| Model |
RS-A00-SPPA |
| Type |
Intel Form Factor ATX 12V V2.3 |
| Dimension (W / H / D) |
150 x 180 x 86mm (5.9 x 7 x 3.4 inch) |
| Input Voltage |
90-264Vac (Auto Range) |
| Input Current |
6 - 12A |
| Input Frequency Range |
47 - 63Hz |
| PFC |
Active PFC (>0.95) |
| Power Good Signal |
100-500ms |
| Hold Up Time |
>17ms |
| Efficiency |
92% Typically |
| MTBF |
100,000 Hours |
| Protection |
OVP/UVP/OCP/OPP/OTP/SCP |
| Output Capacity |
1000W |
| Operation Temperature |
0~40C (Nominal Input Voltage) |
| Regulatory |
TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC |
| Fan |
Silent HDB 135mm |
| Certifications |
80 Plus Platinum |

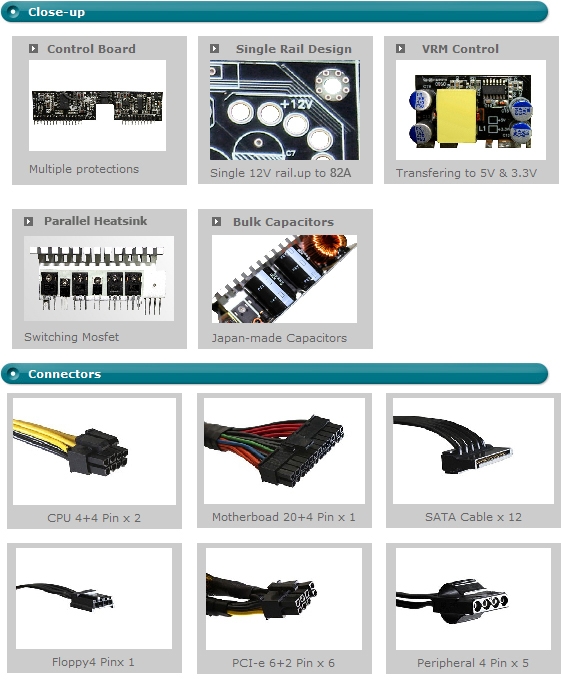

| Connector |
M/B 24 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-e 6+2 Pin x 6
SATA x 12
4 Pin Peripheral x 5
4 Pin Floppy x 1
3 Pin fan Cable x 2 |
