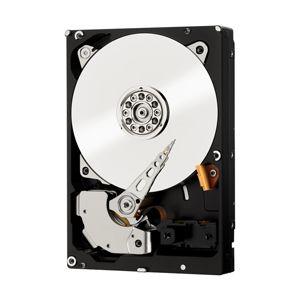

WD RE SATA hard drives are available in capacities up to 4 TB to suit even the most demanding storage needs.
Dual processor.
Twice the processing power to maximize performance.
Vibration protection.
Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
Dual actuator technology.
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB models and above)
StableTrac.
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations. (2 TB models and above)
Highest performance for business-critical applications.WD RE delivers up to 6 Gb/s transfer rates, sustained sequential data rates of up to 171 MB/s and high random I/O rates.
Multi-axis shock sensor.
Automatically detects the subtlest shock events and compensates to protect the data.
RAID-specific, time-limited error recovery (TLER).
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Thermal extended burn-in test.
Each drive is put through extended burnin testing with thermal cycling to ensure reliable operation.
Dynamic fly height technology.
Each read-write heads fly height is adjusted in real time for optimum reliability.
Designed for quality and reliability.
With a field-tested 1.2 million hour MTBF, this high performance drive delivers the highest level of reliability for 24x7 operation in up to 100% duty cycle applications.
The WD advantage.
WD puts our products through extensive Functional Integrity Testing (F.I.T) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.
Ideal for:
Ideal for servers, video surveillance and other demanding write-intensive applications.
Specifications:
| Product Specifications |
|
| |
Interface |
SATA 6 Gb/s |
| |
| Performance Specifications |
|
| |
Rotational Speed |
7,200 RPM (nominal) |
| |
Buffer Size |
64 MB |
| |
Load/unload Cycles |
600,000 minimum |
| |
| Transfer Rates |
| |
Buffer To Host (Serial ATA) |
6 Gb/s (Max) |
| |
| Physical Specifications |
|
| |
Capacity |
3 TB |
| |
User Sectors Per Drive |
5,860,533,168 |
| |
| Physical Dimensions |
|
| English |
| |
Height |
1.028 Inches |
| |
Depth |
5.787 Inches |
| |
Width |
4.00 Inches |
| |
Weight |
1.66 Pounds |
| |
| Metric |
| |
Height |
26.1 mm |
| |
Depth |
147 mm |
| |
Width |
101.6 mm |
| |
Weight |
0.75 kg |
| |
| Environmental Specifications |
|
| Shock |
| |
Operating Shock (Read) |
30G, 2 ms |
| |
Non-operating Shock |
300G, 2 ms |
| |
| Power Management |
|
| |
Read (Peak Watts) |
9.70 Watts |
| |
Write (Peak Watts) |
9.50 Watts |
| |
| Acoustics |
| |
Idle Mode |
31 dBA (average) |
| |
Seek Mode 0 |
34 dBA (average) |
| |
| Temperature (English) |
| |
Operating |
41 F to 131 F |
| |
Non-operating |
-40 F to 158 F |
| |
| Temperature (Metric) |
| |
Operating |
5 C to 55 C |
| |
Non-operating |
-40 C to 70 C |
| |
| Electrical Specifications |
|
| Current Requirements |
| |
Power Dissipation |
| |
Read/Write |
10.40 Watts |
| |
Idle |
8.60 Watts |
