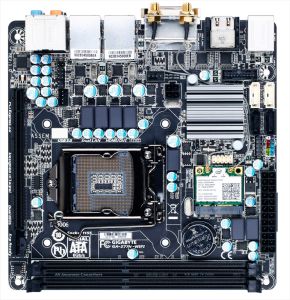

Gigabyte GA-Z77N-WIFI (Rev. 1.0) Motherboard

Intel® Z77 Chipset





Intel Wireless Display let you enjoy wireless life at home and at work. Through adapters, you can easily experience your PC on you TV or projectors, Broadcasting Promotion and commercials with more flexibility and efficiency.





Intel My WiFi Dashboard provides ultimate portability, and puts you in control of your own personal area network. You can connect, communicate and collaborate with others without joining a home, office or hotspot network.
For more information, please visit Intel website at:



The motherboard integrates an exclusive PCIe module that offers support for the latest Bluetooth 4.0 and IEEE 802.11 b/g/n Wi-Fi connectivity. The Bluetooth 4.0 standard includes Smart Ready technology that is debuting on mobile devices including the Apple® iPhone® 4s. This means that transferring important content from your smart phone or tablet is easier and faster than ever.







The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces.

At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.









Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.



Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. GIGABTYE's signature M.I.T. tuning technology can be found alongside fully configurable parameters for GIGABTE's all new digital 3D Power engine. In short, advanced mode combines the signature GIGABYTE BIOS expertise you've come to expect, wrapped a slick, new and optimized graphical UEFI interface.



GIGABYTE Ultra Durable 4 Classic





Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.







GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.







Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DaulBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

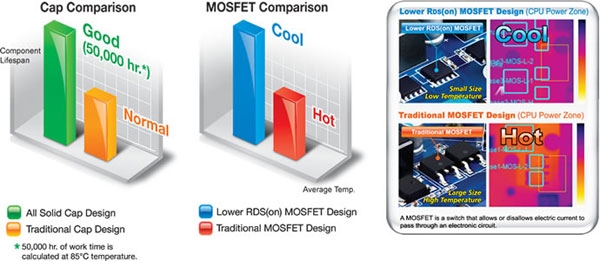

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.



New 3rd generation Intel® Core™ processors are based on the new 3rd generation Intel® Core™ processor architecture, manufactured using the latest 22nm process to create a visually optimized processor platform. Based on the mature LGA 1155 socket, 3rd generation Intel® Core™ processors feature up to four high-performance 64-bit processor cores and 8MB of L3 cache Smart Cache, and overall performance when you need it most.





GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel  Core processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.

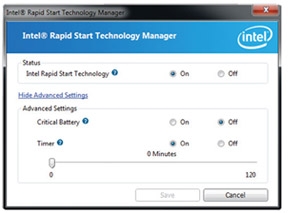

Intel  Rapid Start Technology gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows  7 is a few seconds without having the PC go through a full system boot. With Intel  Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.





Intel  Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be deliveredjust press the 'on' button and you're up-to-date and ready to go.







No manual interaction required to synchronize with cloud services.



Email, social media, and cloud apps always updated and available at power on.







The GIGABYTE EZ Smart Response utility is a simple application that allows users to quickly and easily configure their system for Intel® Smart Response Technology. In the past, enabling Intel® Smart Response meant users needed to enter the BIOS in order to configure their system for RAID mode, which then required a complete reinstall of the operating system. Once that processes was complete, users then needed to install the Intel® Rapid Storage Utility as well as configure Intel's Smart Response Technology. GIGABYTE EZ Smart Response does all of this automatically, without users having to perform a complicated install process. This allows them to quickly and effortlessly enjoy a significant boost in system performance.

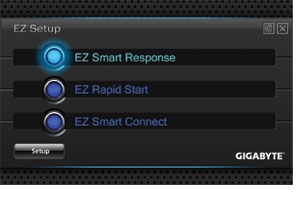

GIGABYTE EZ Setup is an exclusive application that allows GIGABYTE 7 series users to more easily configure and setup three important Intel Technologies on their new system; Intel  Smart Response, Intel  Rapid Start and Intel  Smart Connect. GIGABYTE EZ Setup makes it far easier to enjoy these technologies by greatly reducing the number of steps involved to install setup and configure your system.



With updated and improved processor graphics and multimedia, 3rd generation Intel® Core™ processors offer you the best possible media and entertainment experience. Native support for multiple digital displays, plus DirectX 11 capable graphics, Intel® Quick Sync Video 2.0 and Intel® HD Graphics 4000/2500 ensure you can enjoy new levels of 3D gaming and HD content manipulation.

Saves your valuable time when create and edit video, synchronize it with other devices, and share it–at home and on the internet. Intel Quick Sync Video uses hardware on the processor, instead of software, to accelerate video encoding.





Microsoft DirectX 11 provides eye-popping 3D visuals found for today's latest PC games and is designed to be more efficient, leverage the power of today's multi-core processors, and provide support for sophisticated shading and texturing techniques such as tessellation.





GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.





Experience blistering fast network data access of up to 2Gbps bandwidth transmission with the Teaming function enabled, and enjoy added power savings with the Green Ethernet feature.

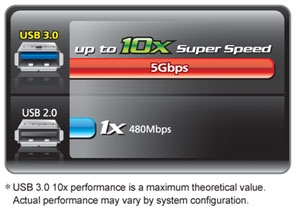

GIGABYTE motherboards boast SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.

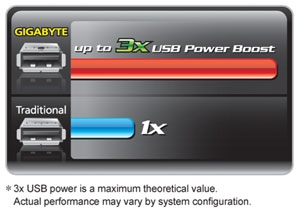

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.





The motherboard integrated 2 HDMI connectors in the back panel to provide more flexibility for Digital home Entertainment. HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.



DVI-I (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data (both digital and analog), and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).




The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.





CPU	Support for Intel  Core i7 processors/Intel  Core i5 processors/Intel  Core i3 processors/Intel  Pentium  processors/Intel  Celeron  processors in the LGA1155 package L3 cache varies with CPU (Some Intel  Core processors require a graphic card, please refer "CPU support List" for more information.)
Chipset	Intel  Z77 Express Chipset
Memory	2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x DVI-I port, supporting a maximum resolution of 1920x1200 2 x HDMI ports, supporting a maximum resolution of 1920x1200
Audio	Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	2 x Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.

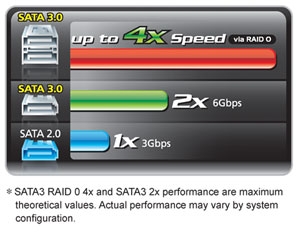

Storage Interface	Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices Support for RAID 0, RAID 1, RAID 5, and RAID 10 * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
USB	Chipset: Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x serial port header 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 2 x HDMI ports 2 x antenna connectors 1 x DVI-I port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU fan speed control * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features	Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for eXtreme Hard Drive (X.H.D) Support for Auto Green Support for ON/OFF Charge Support for Q-Share Support for EZ Setup
Bundle Software	Norton Internet Security (OEM version) Intel  Rapid Start Technology Intel  Smart Connect Technology Intel  Smart Response Technology
Operating System	Support for Microsoft  Windows 8/7/XP
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
