All stock codes associated to this product
GVN680OC4GD, GV-N680OC-4GD

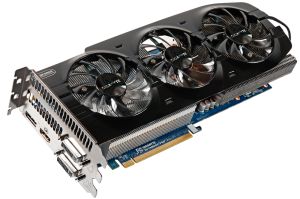

GV-N680OC-4GD
GIGABYTE Ultra Durable VGA Series
Overview
GIGABYTE Ultra Durable VGA Series
GIGABYTE Ultra Durable VGA Series
Powered by NVIDIA GeForce GTX 680 GPU
Integrated with the first 4096MB GDDR5 memory and 256-bit memory interface
Features Dual link DVI-I/ DVI-D/ HDMI/ DisplayPort with HDCP protection
Core Clock: Base / Boost clock:1071 / 1137 MHz
PCI-E 3.0 interface
Support NVIDIA 3D Vision® Surround and SLI technologies
Support NVIDIA® CUDA™ Technology
Support NVIDIA® PhysX™ Technology
Support NVIDIA® FXAA / TXAA Technology
Support NVIDIA® Adaptive Vertical Sync Technology
System power supply requirement: 550W
Ultra Durable VGA
Features & Benefits
GPU Temperature 5%~10% down
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB. GIGABYTE Ultra Durable VGA can lower GPU temperature by 5% to 10%.
Overclocking Capability 10%~30% Up
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability. GIGABYTE Ultra Durable VGA graphic accelerators improve overclocking capability by 10% to 30%.
Power Switching Loss 10%~30% Down
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency. GIGABYTE Ultra Durable VGA can lower power switching loss by 10% to 30%.
NEW WINDFORCE™ 3X 450W Cooling Solution - FurMark Under 28.3dB
GIGABYTE introduces the latest exclusive WINDFORCE™ 3X cooling solution with "Triangle Cool" Technology to reach a better cooling performance. The latest patent pending technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Compared with traditional linear solution fansink, the dissipation area increases 70% and the dissipation performance is 35% better. Furthermore, the dissipation performance can achieve 450W, but the noise under FurMark is only 28.3 dB. Furthermore, the new WINDFORCE™ 3X 450W Cooling Solution Technology provides a more efficient air flow and better performance for the cooling system.
OC GURU ll
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK, FAN, GPU VOLTAGE, Memory VOLTAGE, OSD, ONLINE SUPPORT and update driver, BIOS directly.
PhysX Technology
NVIDIA® PhysX™ is the next big thing in gaming!Delivering physics in games is no easy task. It's an extremely compute-intensive environment based on a unique set of physics algorithms that require tremendous amounts of simultaneous mathematical and logical calculations. The best way to get real-time physics, such as explosions that cause dust and debris, characters with life-like motion or cloth that drapes and tears naturally is with an NVIDIA®PhysX™-ready GeForce® processor. PhysX software is widely adopted by over 150 games, is used by more than 10,000 registered users and is supported on Sony Playstation 3, Microsoft Xbox 360, Nintendo Wii and PC. PhysX™ technology will take gaming to a whole new level.
CUDA Technology
NVIDIA® CUDA™ technology unlocks the power of the hundreds of cores in your NVIDIA® GeForce® graphics processor (GPU) to accelerate some of the most performance hungry computing applications. The CUDA™ technology already adopted by thousands of programers to speed up those performance hungry computing applications.
SLI™ Technology
Delivers up to 2X the performance of a single GPU configuration for unparalleled gaming experiences by allowing two graphics cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI dramatically scales performance on 60 top PC games.
NVIDIA® 3D Vision™
NVIDIA® 3D Vision™ brings a fully immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Users can even watch 3D movies and 3D digital photographs in crystal-clear quality.
Microsoft Windows 7
Microsoft Windows 7 is the next generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advangate of the GPU for both graphics and computing, Windows 7 will not only make todays's PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want
RoHS Compliant
As a citizen of the global village, GIGABYTE exert ourselves to be a pioneer in environment care. Give the whole of Earth a promise that our products do not contain any of the restricted substances in concentrations and applications banned by the RoHS Directive, and are capable of being worked on at the higher temperatures required for lead free solder. One Earth and GIGABYTE Cares!
Gold plated HDMI
Gold plated, durable large contact area connectors have been used for optimum signal transfer between connections
Specifications:
| Chipset |
GeForce GTX 680 |
| PCB Form |
ATX |
| Core Clock |
Base clock: 1071 MHz
Boost clock: 1137 MHz
(standard Base clock: 1006 MHz Boost clock: 1058 MHz) |
| Shader Clock |
N/A |
| Memory Clock |
6008 MHz |
| Process Technology |
28 nm |
| Memory Size |
4096 MB |
| Memory Bus |
256 bit |
| Card Bus |
PCI-E 3.0 |
| Memory Type |
GDDR5 |
| DirectX |
11 |
| OpenGL |
4.2 |
| I/O |
Dual-link DVI-I*1
DVI-D*1
DisplayPort*1
HDMI *1
|
| Digital max resolution |
2560 x 1600 |
| Analog max resolution |
2048 x 1536 |
| Multi-view |
4 |
| Card size |
H=62 mm, L=295 mm, W=129 mm |
| Power requirement |
550 W |
