All stock codes associated to this product
ENGTX650TIDC2O1GD5, ENGTX650TI-DC2O-1GD5
- TOP-selected 954MHz cores run 26MHz higher than reference for smoother gameplay.
- DirectCU achieves 20% lower temps with direct-contact copper heatpipes, plus 3X quieter and 6X more powerful twin fan operation.
- DIGI+ VRM with Super Alloy Power delivers precise digital power for superior efficiency, reliability, and performance.
- GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface.
- NVIDIA 3D Surround technology to expand displays on up to four monitors at once
Overview
Advance your gaming graphics with cool performance
ASUS Exclusive Innovation
954MHz Boost Clock
954 MHz Boost clock for better performance and outstanding gaming experience
Gigantic 1GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution

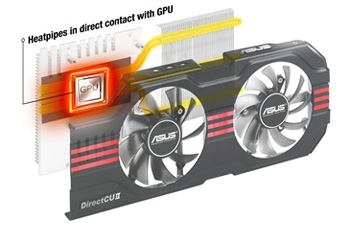

DirectCU II
20% cooler and 3X* quieter
DirectCU thermal design utilizes direct contact copper heatpipes so heat is dissipated efficiently, delivering a 20% cooler and vastly quieter performance than reference.
DIGI+VRM with Super Alloy Power
Acclaimed DIGI+ VRM has been applied via a power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference.

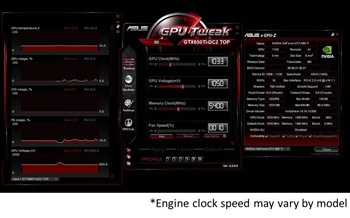

GPU Tweak
Real-time intuitive graphics tuning
Detailed specs and actual card status with GPU-Z
Monitoring widget provides real-time and detailed multi-parameter info
Automatically check and update drivers and BIOS versions
Graphics GPU Features
Powered by GeForce® GTX650TI
NVIDIA PhysX ready
Play games with advanced effects such as blazing explosions and lifelike characters with 10X faster switching between graphics and physics processing, enabling more complex effects to be rendered in real time.
PCIE 3.0
Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU-CPU communication.
NVIDIA CUDA
Unlocks the power of GPUs processor cores to accelerate the most demanding system tasks
NVIDIA® 3D Vision™ Surround Ready
Transform hunreds of PC games into stereoscopic 3D and enjoy immersive full HD 3D gaming across three displays at an incredible 5760x1080 resolution.
Microsoft® DirectX® 11 Support
DirectX 11 GPU-accelerated tessellation allows more detailed geometry to be packed into a scene, allowing characters to be rendered with cinema-quality detail.

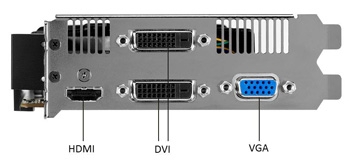

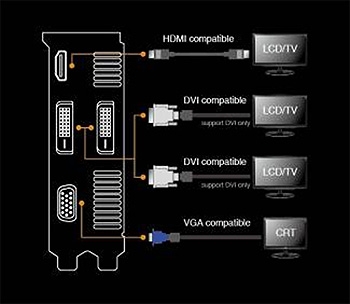

I/O Ports Highlight
Specifications
| Graphics Engine |
NVIDIA GeForce GTX 650 Ti |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 1GB |
| Engine Clock |
954 MHz |
| CUDA Core |
768 |
| Memory Clock |
5400 MHz ( 1350 MHz GDDR5 ) |
| Memory Interface |
128-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
D-Sub Output : Yes x 1
DVI Output : Yes x 2 (DVI-D)
HDMI Output : Yes x 1
HDCP Support : Yes |
| Software |
ASUS Utilities & Driver
GPU Tweak
|
| Dimensions |
10.79 " x 4.72 " Inch |
| Note |
Specifications are subject to change without notice.
PCB color and bundled software versions are change without notice.
Brand and product names mentioned are trademarks of their respective company. |
